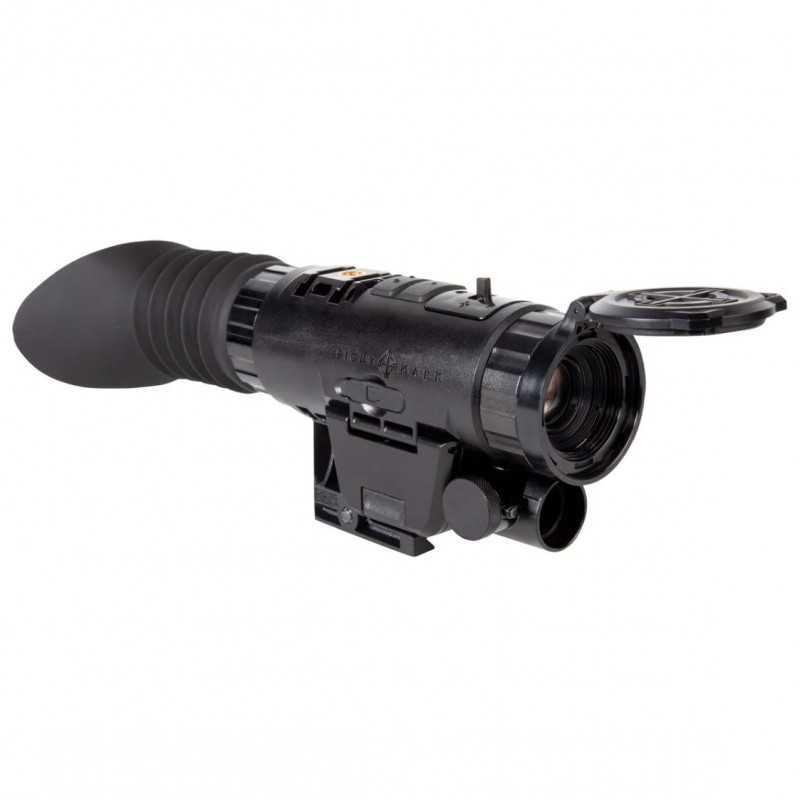

Sightmark Wraith 4K 1x (1-8x17) Night Vision Monocular SM18050
670 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
Sightmark’s Wraith 4K Monocular is an optic with multi-mounting versatility. Evolved from the Wraith 4K Mini, this helmet-, handheld- or rifle-mounted optic provides users with a digital night vision optic that is technologically advanced and potentially hands-free. With 1-8x digital zoom, video-recording capabilities and a sleek polymer housing, this optic represents the future of digital night vision. Its auto-adjusting, integrated IR light is ideal for various environmental conditions, and its easy mounting & dismounting make the Wraith 4K Monocular a must-have for Sightmark customers!
Features
Built-in USB
4k/1080p imaging
1-8x digital zoom
Built-in photo and video recording
4k (3840x2160) sensor
Polymer housing
2 CR123A batteries
Integrated LED IR at 850nm
Auto-adjust IR
Included in Package
CR123a battery
Flip Caps
Eye Cups
Bridge Mount
User Manual
USB cable
Batteries Used
Type: CR123a
Quantity: 2
Specifications
Type of sensor CMOS sensor
Sensor resolution, pixels 4K (3840x2160)
Display type FLCOS
Display Resolution, pix. 1280x720
Built-In Video Recorder Availability Yes
Maximum memory card supported, Gb 256
Format of video clip AVI
Resolution of video clip 720/1080/4K
Format of photo files JPEG
Resolution of photo files 4k
Memory capacity Approximately 1.75 hours video with 64gb SD card on 4k@30 quality level.
Magnification 1-8
Lens focus, mm 25
Lens diameter, mm 17
Digital zoom 1-8x
Field of View,°, horizontal 17
Field of View, m@100m 17
Field of View, ft@100yd 51
Minimum focusing distance, ft/m 5 / 1.524
Eye Relief, in/mm 3 / 76
Diopter adjustment, dptr. -6 to +3
Emitter LED
IR Wavelenght, nm 850nm
Equivalent IR Power, mW 2000
Battery life with IR on 2 Hours
Night Vision detection range, yd/m 300/274
Power Supply, v 6
Battery type 2x CR123A
Battery life 3.6Hrs Video Mode w/ IR off/ 4.4Hrs Preview Mode w/ IR off
External Power Supply 5V via USB type C
Body Material Aluminum
Accessory rail mount Picatinny
Operating Temp,°F / C° 32 to 140 / 0 to 60
Waterproof rating IPX6 - water resistant
Nitrogen Purged, yes/no no
Shockproof, yes/no yes, 3ft
Maximum recoil, caliber .308
Tube diameter n/a
Length, in/mm 6.299 / 160
Width, in/mm 3.031 / 77
Height, in/mm 2.913 / 74
Weight (with batteries), g 340
