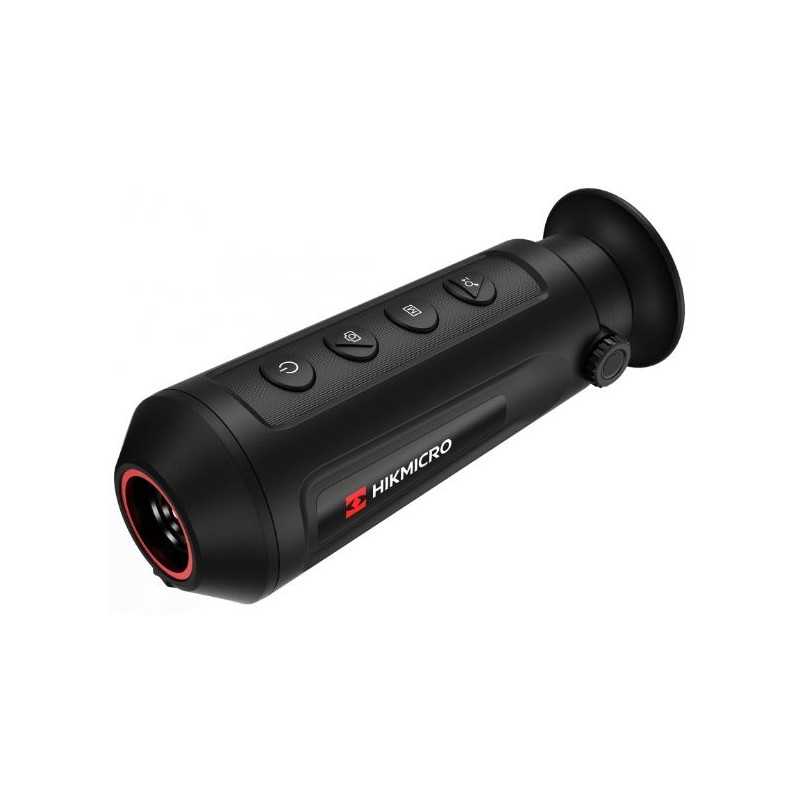

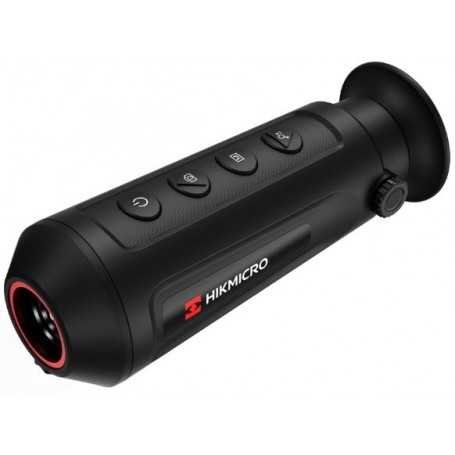

Hikvision Hikmicro Lynx Pro LE15 Thermal Imaging Camera

HIKVISION - a leader of modern technologies, a leading manufacturer of industrial cameras based on thermal modules, face recognition, supplier of solutions for fully automated warehouses, alarm systems, extends its offer with handheld thermal imaging cameras, creating the HIKMICRO sub-brand.

By presenting the new Lynx Pro LE series, HIKMICRO breaks the monopoly of many companies, introducing products with breakthrough specifications at an unprecedented price. This huge range of changes took place without changing the dimensions of the device, making the HIKMICRO Lynx Pro LE currently the smallest cameras (158 mm long, 280 g weight) on the market offering such strict technical parameters !

The heart of this imager is an uncooled VOx microbolometer with a resolution of 256 x 192 pixels and a single pixel diameter of 12 µm. A low-noise and very sensitive sensor, combined with the highest quality optics and an advanced signal processing system, guarantee that the Lynx PRO LE15 thermal imager will fulfill its task regardless of the circumstances.

The image is transmitted through a large LCOS display with a diagonal of 0.2 "and a resolution of 720 x 540 px. Depending on the needs, the user can choose one of the four modes display: white hot (the lighter the color, the higher the temperature), black hot, (the colors darken with increasing temperature), red hot (high temperature is marked in red) and fusion, which gives different colors to individual temperatures.

The carefully made housing, with the IP67 water resistance class, guarantees that this product can work even in the most unfavorable conditions. In addition, this thermal imager is characterized by a continuous operation time of up to 8 hours, which can be extended by connecting the power supply from an external powerbank.

The most important features of the Lynx PRO LE15 Imager

• ultra-small VOx sensor with a resolution of 256 x 192 pixels and a single pixel size of 12 µm

• color LCOS display with a diagonal of 0.2 "

• automatic gain control and digital noise reduction

• four image display modes and three field correction modes

Technical specifications

• matrix: VOx, 256 x 192 px

• pixel size: 12 µm

• NETD: <35 sq m

• matrix spectral range: 8 - 14 µm

• angle of view: 8.8 °

• linear field of view: 154 m / 1000 m

• Objective diameter: 15 mm

• display: LCOS, 720 x 540 px, diagonal 0.2 "

• refresh rate: 25 Hz

• optical magnification: 1.42

• digital magnification: 1x, 2x, 4x, 8x

• rangefinder: yes, static

• battery life: 8 hours with the WiFi module turned off

• battery: integrated, Li-Ion

• charging: USB-C socket, 5 V DC, 2 A

• powered from an external power bank: yes

• WiFi module: yes

• built-in memory: yes, 8 GB

• movie recording: yes

• save photos: yes

• sealed housing: yes, IP67

• length: 158 mm

• weight: 280 g

Elements of the set

• Lynx PRO LE15 thermal imager

• USB cable

• cleaning cloth

• case

• wrist strap

• documentation

guarantee

36 months
