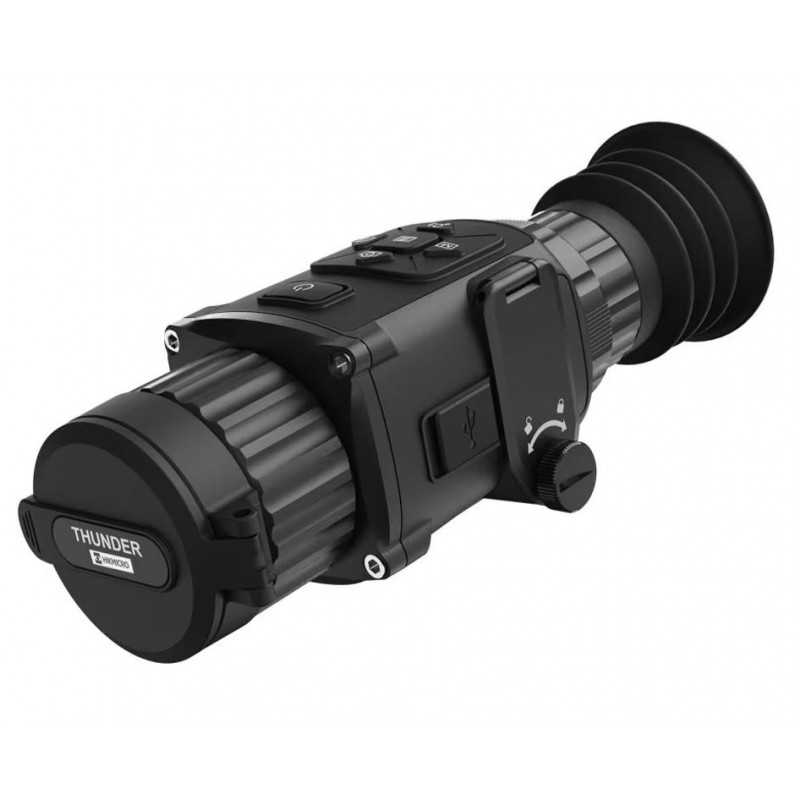

Hikvision Hikmicro Thunder Pro TE19 - Thermal Imaging Sight

TheHikmicro Thunder Pro TE19 is a hunting thermal imaging sight equipped with a 256 × 192 / 12 µm sensor with 35 mK sensitivity, a high-quality 1024 × 768 px OLED display, a static rangefinder and a lightweight and lightweight aluminum alloy body resistant to immersion in water, snow and rain.

Construction of the HIKMICRO TE19 thermal imager

The Hikmicro Thunder Pro TE19 has a lightweight and durable body made of aluminum alloy (magnalia). This makes the Thunder Pro TE19, at 187.2 × 62.5 × 59.2 mm, the lightest sight in its class on the market. The aluminum construction also guarantees resistance to shock, impact and weather conditions. The body has been protected against water, dust and moisture (IP67 rating), so the sight is resistant to any weather conditions that may occur during hunting. It is extremely important to be quiet during the hunt for game, so rubber buttons with noiseless operation have been used to operate the sight.

Modular design of the thermal imaging sight

One of the main advantages of HIKMICRO thermal sight is its modular design, thanks to which one device can perform various tasks. We offer the necessary accessories to make the HIKMICRO thermal imager your favorite tool for hunting and observation. The add-ons are fully compatible with all HIKMICRO Thunder and Thunder PRO thermal imaging cameras, so everyone can adjust them to their own needs.

The Thunder Pro TE19 camera can act as 2 devices:

• a thermal imaging viewfinder (mount to be purchased separately)
• and an observation monocular.

Excellent image performance

The HIKMICRO Thunder PRO TE19 uses a sensitive 256 × 192 px sensor with <35mk sensitivity, a high-quality 1024×768 px OLED display, a 19mm lens and a functional rangefinder. The lower the NETD value, the better the sensor detects temperature differences of objects, which contributes to excellent image quality. Such parameters ensure a clear image in any environmental conditions, so the viewfinder can be used in total darkness, fog, smoke, dust, as well as in rain and snow. The thermal imager has an optical magnification of 2.47 × and target detection at distances of up to 1,000 m. The HIKMICRO Thunder PRO TE19 has the popular PiP (picture-in-picture) function that allows the hunter to simultaneously and precisely observe a target while maintaining a wide field of view. Thunder also uses digital zoom in the 2×, 4× and 8× ranges.

The hunter has 4 of the most popular display modes available, and can choose between:

• White hot - warm in bright color. The higher the temperature, the brighter the tone.
• Black hot - warm in dark color. The higher the temperature, the darker the tonality.
• Red hot - image as in "black hot" with red highlighting of the warmest elements.
• Fusion - from high temperature to low temperature, the image is colored from white, yellow, red, pink to purple.

Thermal image technologies:

• DDE (digital detail enhancement) - digital detail enhancement, smooths the image while emphasizing details,
• 3DDNR (3D digital noise reduction) - digital noise reduction, effectively removes noise and affects image quality,
• AGC (automatic gain control) - automatic gain control, improves the contrast of the displayed scene.

Variable targeting reticles - thermal imaging viewfinder modes

TheHIKMICRO Thunder PRO TE19 offers 5 versions of target reticles in 3 colors, as well as the option to completely disable the reticle when using the viewfinder for normal observation. An addition that all hunters will appreciate is the static rangefinder, which allows distance measurement based on factory values or user-defined settings. The HIKMICRO Thunder PRO TE19 provides not only excellent support during hunting, but also in observation and patrol operations.

Functionality of the HIKMICRO Thunder hunting thermal imager

The Thunder PRO TE19 thermal imager is powered by two CR123 3.0 V batteries (included) or RCR123 3.0 V or 3.7 V rechargeable batteries. The operating time reaches 4.5 hours and can be increased by connecting a power-bank (USB-C port). The device has 16 GB of built-in memory to store captured photos or video footage. In addition, images can be transmitted via Wi-Fi to a phone or other device on which an appropriate app (Android or iOS) has been installed.

Free updates

Like all HIKMICRO cameras, also the Thunder PRO TE19 viewfinder can be updated independently by the user when an appropriate update appears, introducing not only the removal of bugs found, but also extending the capabilities of the device with new features.

Included

Kit components

pressure plate,

rubber eyecup,

USB-C cable,

2 × battery,

protective bag,

cloth

TECHNICAL DATA

Basic data

Angular field of view [°] 6

Digital zoom [×]. 2/4/8

Display resolution (W × H) [px] 1024×768

Internal memory 16 GB

Lens size [mm]. 19

Linear field of view at 100 m [m]. 12,14

Linear field of view at 1000 m [m]. 121,4

 Max. operating time [h min]. 10

 Max. range [m] 1000

Operating temperature [°C]. -20° to 55°

Optical zoom [×]. 2,47

Refresh rate [Hz]. 25

Sensor resolution (W × H) [px]. 256 × 192

Thermal sensitivity at f/1.0 [mK]. 35

USB output yes

Security

IP protection class IP67

Power supply

Cell power supply CR123A × 2

Additional data

Structure/skeleton/body material aluminum

Dimensions

Overall height [mm] 59,2

Overall length [mm]. 187

Weight [g] 430

Width [mm] 62,5
