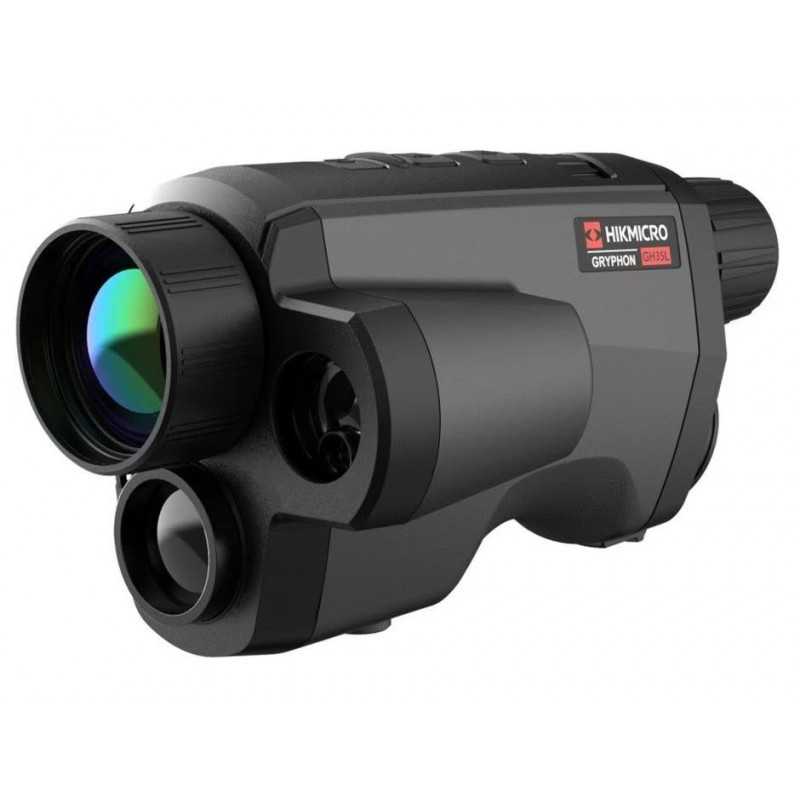

Hikvision Hikmicro Gryphon HD LRF GQ35L - Thermal Imaging Camera

Gryphon is more than just a thermal imaging camera, it is a complete surveillance device for special tasks.

HIKMICRO Gryphon 3in1

Thermal imaging – all Gryphon cameras are equipped with a modern detector made in 12 µm technology, available in two resolutions: 384 × 288 or 640 × 512 and refresh rate of 50 Hz. Nothing, day or night, can hide from him.

Night vision - a high-sensitivity sensor in full HD resolution with the use of an additional infrared illuminator (required, not included) makes the Gryphon camera brighten every darkness at a distance of up to several hundred meters.

Fusion - the technology of the future, the combination of a thermal image with a digital image, a mirage of both will make what you observe gain a completely new perspective. Thanks to the superimposition of two images, the observer gets an uncompromising tool, allowing to conduct a detailed view in HD resolution both day and night (only with additional IR, not included) with a thermal image . From now on, details that may be hidden from you in a classic thermal imaging camera will be clearly visible.

Rangefinder (LRF version only) - accurate, fast, dynamic, with a range of up to 600 meters, and most importantly, one less device in your pocket!

HIKMICRO Gryphon is powered by one 18650 cell, which enables up to 5 hours of continuous operation. It is a popular battery which, in case of discharge, can be replaced with another charged one of the same standard (or 2 CR123 batteries). Like all other HIKMICRO cameras, the Gryphon series can be powered via the USB-C port from external sources such as a power bank. The Gryphon Thermal Imager has 16 GB of built-in memory where you can save photos and recorded video materials, what's more, Gryphon can be connected to the T-Vision application (iOS or Android) to be able to control it remotely.

Resistance acc. IP67 - HIKMICRO confirms the high quality of workmanship, granting the IP67 standard for Gryphon cameras. Each is fully dustproof and waterproof up to 1 meter!

Technical parameters

• thermal imaging sensor type: VOx

• resolution of the thermal imaging matrix: 640 x 512 px

• pixel size: 12 µm

• NETD: < 35 sqm

• viewing angle: 12.52° x 10.03°

• thermal lens: 35mm

• aperture: f/1.0

• digital zoom: 2x, 4x, 8x

• optical magnification: 2x

• matrix type for the visible range: CMOS

• resolution: 1960 x 1200 px @ 25 fps

• optical lens: 22mm

• focus setting: manual

• display: OLED, 1024 x 768 px

• battery: 18650

• battery life: up to 5 hours

• charging: 5V DC, 2A

• full charge time: 5 hours

• WiFi module: yes

• GPS module: yes

• built-in memory: 16 GB

• video recording: yes

• photo saving: yes

• sealed housing: yes, IP67

• tripod thread: UNC 1/4”-20

• dimensions: 158 x 61 x 57 mm

• weight: 510g

• detection (car): 3655 m

• detection (human): 1750 m

Guarantee

36 months manufacturer's warranty
