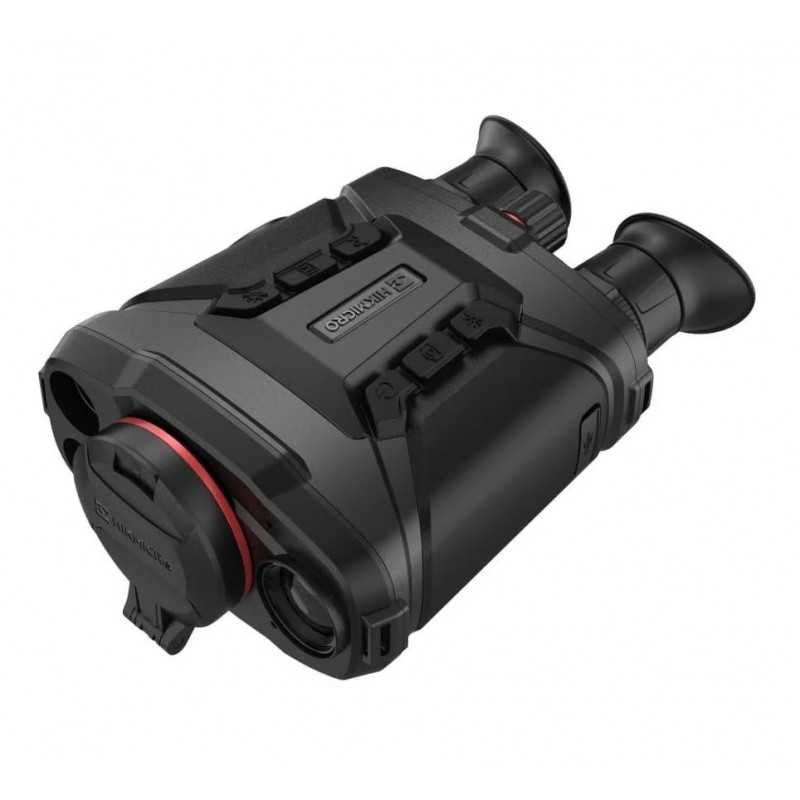

Hikvision Hikmicro Raptor RQ50L LRF 850 nm - thermal imaging binoculars

HIKVISION Raptor RQ50L LRF 850 is a powerful observation tool that combines a night vision device with an integrated infrared illuminator, an ultra-sensitive thermal imager with a long detection range and a precise laser rangefinder that allows you to measure distances up to a thousand meters. This extensive observation system was created to meet even the greatest challenges.

The night vision module enabling day and night observations is equipped with a sensor with a resolution of 2560 x 1440 pixels, the field of view of which can be illuminated by an additional IR illuminator operating in the 850 nm range. The thermal imaging system consists of a highly sensitive VOx microbolometer with a thermal sensitivity (NETD) of less than 20 mK. A large OLED display with a resolution of 1024 x 768 px and a diagonal of 0.39" is responsible for the presentation of the image, supporting six image modes and the PIP function. The binoculars are powered by replaceable lithium-ion batteries. up to eight hours of continuous operation.

HIKVISION Raptor RQ50L LRF 850 nm has a built-in memory with a capacity of 64 GB that allows you to save both photos and videos at a resolution of 1600 x 1200 px.

The whole is enclosed in a durable housing that meets the requirements of IP67 waterproof class. Thanks to the use of a standard photographic thread, the binoculars can be easily mounted on most tripods.

Attention! The version with the 850 nm illuminator offers a slightly better detection range in night conditions, while the advantage of the 940 nm version is that the light emitted by the illuminator at this wavelength is completely invisible.

The most important features of the HIKVISION Raptor RQ50L LRF 850 nm night vision thermal binoculars

• night vision sensor with a resolution of 2560 x 1440 px enabling the night vision device to work in day and night mode

• integrated infrared illuminator emitting light with a wavelength of 850 nm

• VOx microbolometer with a pixel diameter of 12 µm and a resolution of 640 x 512 px

• built-in laser rangefinder with a range of 1000 m

• large OLED display with picture-in-picture function

• maximum detection range of 400 m in night vision mode and 2600 m in thermal imaging mode

• 64 GB internal EMMC memory

• possibility of mounting on a photographic tripod through a standard 1/4" thread

Technical parameters

• imaging mode: night/day night vision, thermal imaging

• type of night vision sensor: CMOS with progressive scan

• night vision sensor size: 1.88"

• resolution of the night vision sensor: 2560 x 1440 px

• night vision lens: 31 mm

• light of the night vision lens: f/1.2

• IR illuminator wavelength: 850 nm

• detection range using an IR illuminator: 400 m

• thermal imaging sensor type: VOx microbolometer, uncooled

• resolution of the thermal imaging sensor: 640 x 512 px

• Thermal imaging sensor pixel diameter: 12 µm

• refresh rate of the thermal imaging sensor: 25 Hz

• NETD: <20mK

• thermal lens: 50 mm

• Lens of the thermal imaging lens: f/0.9

• magnification of the thermal imaging lens: 3.4x

• digital zoom: 1x, 2x, 4x, 8x, 16x

• field of view: 8.8 x 7°

• detection range in thermal imaging mode: 2600 m

• minimum focusing distance in thermal imaging mode: 5 m

• focus adjustment: manual

• dioptric adjustment range: -5 ÷ +3 D

• display: OLED

• display resolution: 1024 x 768 px

• display diagonal: 0.39"

• eye relief: 15 mm

• lens spacing adjustment: 60 ÷ 70 mm

• flat field correction (FFC): automatic, manual, external

• display modes: optical, fusion, white hot, black hot, red hot, image fusion

• built-in memory: 64 GB

• the ability to record movies with sound: yes

• the ability to save photos: yes

• photo resolution: 1600 x 1200 px

• photo format: JPEG

• video resolution: 1600 x 1200 px

• video format: MP4

• built-in GPS module: yes

• picture in picture (PIP): yes

• built-in compass: yes

• built-in rangefinder: yes, laser

• rangefinder range: 1000 m

• distance measurement accuracy: ±1 m

• laser wavelength: 905 nm

• laser classification: class I

• power supply: replaceable lithium-ion batteries

• maximum battery life: 8 hours

• power connector: USB-C

• operating temperature range: -30 ÷ 55°C

• storage temperature range: -40 ÷ 70°C

• waterproof: yes, IP67

• tripod mount: 1/4"-20 UNC thread (photographic)

• dimensions: 217.5 x 155 x 87.5 mm

• weight: 1120g

Set elements

• HIKVISION Raptor RQ50L LRF 850 nm thermal and night vision binoculars

• neck strap

• shoulder strap

• Optics cleaning cloth

• documentation

• transport cover

• power cord

• batteries (6 pcs.)

• battery charger

• adapter

Guarantee

36 months
