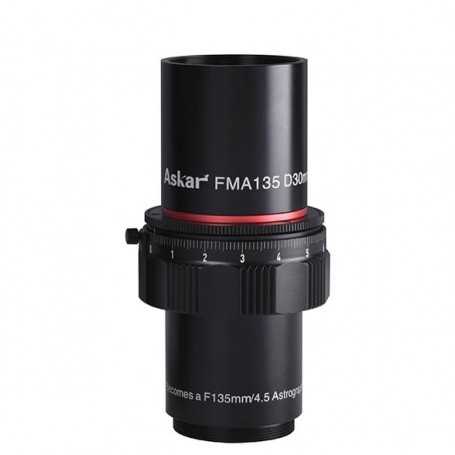

ASKAR FMA135 fi 30 mm / 135 mm f/4,5 APO astrograph / telephoto lens / guider / travel scope (SKU: FMA135)

Discover the Askar FMA135, a versatile astrograph and telephoto lens perfect for astrophotography enthusiasts. With a 135mm focal length and an advanced apochromatic triplet design featuring an ED glass element, this lens delivers exceptional image clarity and a flat field. Its three-element flattener ensures superior light transmission, making it ideal for both standard and full-frame cameras. Beyond its astrophotography capabilities, the FMA135 serves as an excellent telephoto lens and guide scope for travel. Compact yet powerful, this lens (SKU: FMA135) is a must-have for capturing stunning celestial and terrestrial images.
280.77 £
Tax included

228.27 £ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Askar FMA135 f/4.5 APO Astrograph: Multifunctional Lens for Astrophotography and Beyond

The Askar FMA135 is a premium-quality astrograph that rivals the performance of the renowned Askar FMA180. With a focal length of 135 mm, this versatile instrument is ideal for a range of applications including astrophotography, visual observation, and guiding.

This refractor features an advanced optical system, incorporating an apochromatic triplet with a single element made from extra-low dispersion (ED) glass. Paired with a three-element flattener, it provides outstanding light transmission and a flat field, making it perfect for use with both full-frame and standard cameras.

Thanks to its Vixen foot, the Askar FMA135 easily adapts for use as a high-quality guider or visual telescope when paired with a 1.25" eyepiece adapter.

Key Features of the Askar FMA135 f/4.5 APO Lens:

  • A versatile apochromatic lens ideal for astrophotography, guiding, and visual observations.
  • ED glass lens significantly reduces chromatic aberrations for clearer images.
  • Compatible with a wide range of mounts thanks to the M42x0.75 thread.
  • Includes a built-in adapter for 1.25" filters, enhancing convenience and versatility.

Technical Specifications:

  • Optical Design: Apochromatic fixed focal length lens.
  • Objective Lens System: Triplet with an air gap.
  • Flattener Lenses: Three.
  • Flattener Times/Scale: 1:1.
  • ED Glass Lenses: One.
  • Coating Type: Full multilayer coating (FMC).
  • Front Lens Diameter (Aperture): 30 mm.
  • Focal Length: 135 mm (with or without reducer).
  • Aperture Ratio: f/4.5 (with or without reducer).
  • Additional Filter Mounting: Yes, 1.25" filter on the front part.
  • Focusing: Manual.
  • Back Focus: 55 mm.
  • Optical Tube Mount: Vixen.
  • Camera/Camcorder Mount: M42x0.75 thread.
  • Eyepiece Adapter: 1.25".
  • Length (with flattener): 113 mm.
  • Diameter: 40 mm.
  • Weight: 240 g.

Included Components:

  • Askar FMA135 f/4.5 APO lens.
  • 1.25" eyepiece adapter.
  • Fixing screws (5 pieces).
  • Fastening ring.
  • Documentation.

Warranty:

Enjoy peace of mind with a 24-month warranty accompanying the Askar FMA135.
