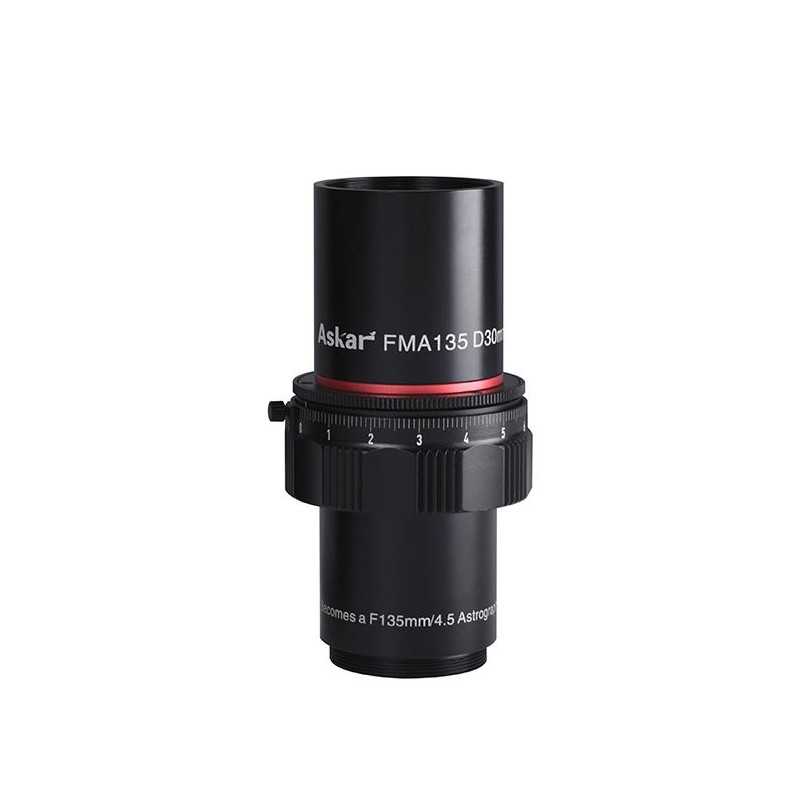

ASKAR FMA135 fi 30 mm / 135 mm f/4,5 APO astrograph / telephoto lens / guider / travel scope (SKU: FMA135)
zoom_out_map
chevron_left chevron_right

Our company is involved in preparing official permits from the Polish Ministry of Development and Technology, which allows us to export all dual-use drones, optics, and portable radiophones without VAT on the Polish side / and without VAT on the Ukrainian side.

ASKAR FMA135 fi 30 mm / 135 mm f/4,5 APO astrograph / telephoto lens / guider / travel scope (SKU: FMA135)

The Askar FMA 135 astrograph/telephoto lens is a multi-faceted instrument comparable in quality to the esteemed Askar FMA180 model. It offers a 135mm focal length and incorporates an apochromatic triplet with a single element made from reduced dispersion (ED) glass. This innovative optical system, coupled with a three-element flattener, ensures superior light transmission and a flat field. The FMA 135 is meticulously designed to meet the demands of both regular and full-frame cameras, making it an ideal choice for astrophotographers. In addition to astrophotography, it can also be used as a telephoto lens or as a guide scope for your travel adventures. With its SKU FMA135, it’s a high-performing addition to any toolkit.
$361.98
Tax included

294.29 $ net price (non-EU countries)

100% secure payments

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Olesia Ushakova
Product Manager
Українська / Polski
+48695005004
+48695005004
Telegram +48695005004
[email protected]

Description

The Askar FMA 135 is a highly versatile instrument that is on par with the esteemed Askar FMA180 model, boasting a focal length of 135 mm. This refractor features an advanced optical system, comprising an apochromatic triplet with a single element crafted from reduced dispersion (ED) glass. Accompanied by a three-element flattener, it delivers exceptional light transmission and a flat field, making it the perfect tool for astrophotography with full-frame or regular cameras.

Equipped with a Vixen foot, the Askar FMA 135 can effortlessly serve as a top-notch guider or a telescope for visual observations with the use of a 1.25" eyepiece adapter.

Key Features of the Askar FMA135 f/4.5 APO Lens:

  • A versatile apochromatic astrophotographic lens suitable for guiding and direct visual observations.
  • ED glass lens effectively reduces chromatic aberrations.
  • Universal mounting compatibility with the M42x0.75 thread.
  • Built-in adapter for convenient mounting of 1.25" filters on the front part of the lens.

Technical Specifications:

  • Optical design: Apochromatic fixed focal length lens.
  • Objective lens system: Triplet with an air gap.
  • Number of flattener lenses: Three.
  • Flattener times/scale: 1:1.
  • Number of ED glass lenses: One.
  • Coating type: Full multilayer coating (FMC).
  • Front lens diameter (aperture): 30 mm.
  • Focal length without reducer: 135 mm.
  • Focal length with reducer: 135 mm.
  • Without reducer, aperture ratio: f/4.5.
  • With reducer, aperture ratio: f/4.5.
  • Additional filter mounting: Yes, 1.25" filter mounted on the front part.
  • Focusing: Manual.
  • Back focus: 55 mm.
  • Optical tube mount: Vixen.
  • Camera/camcorder mount: M42x0.75 thread.
  • Eyepiece adapter: 1.25".
  • Length (with flattener): 113 mm.
  • Diameter: 40 mm.
  • Weight: 240 g.

Included Components:

  • Askar FMA135 f/4.5 APO lens.
  • 1.25" eyepiece adapter.
  • Fixing screws (5 pieces).
  • Fastening ring.
  • Documentation.

Warranty:

Enjoy peace of mind with a 24-month warranty accompanying the Askar FMA 135.
