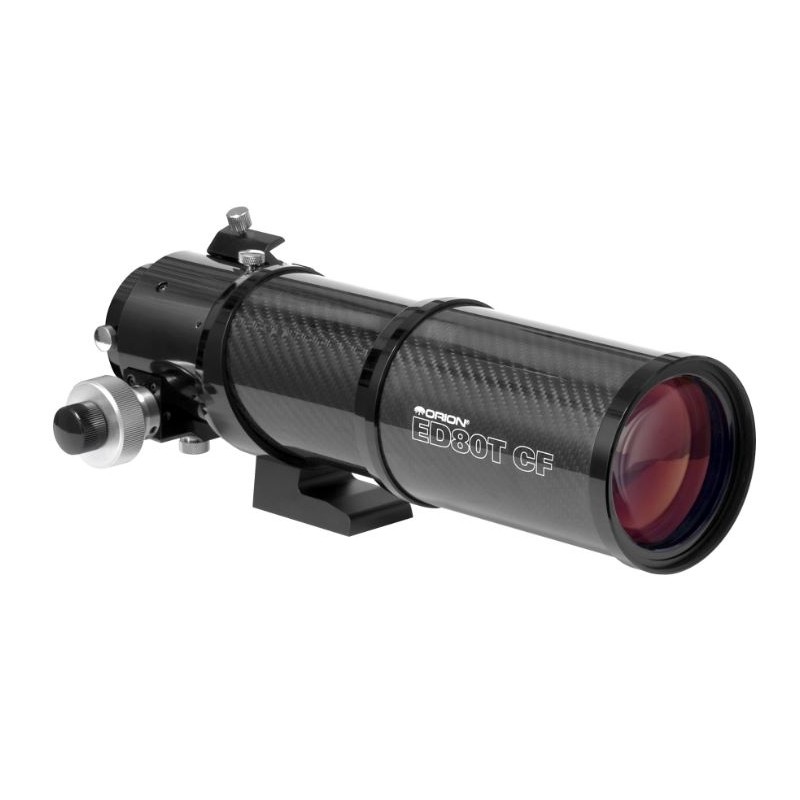

Orion ED80T CF Triplet Apochromatic Refractor 80/480 F/6 OTA (SKU: 09534)

The Orion ED80T CF telescope is a remarkable optical tube designed for those seeking a universal solution that combines the best features of professional astrographs and telescopes dedicated to visual observations. Crafted with a lightweight carbon fiber body, this telescope offers outstanding performance and portability.

At the heart of this classic three-element apochromatic refractor lies an 80 mm aperture and an f/6 focal ratio. To achieve exceptional correction of chromatic aberration, the optical tube is equipped with a low dispersion (ED) lens made from FPL-53 glass. Furthermore, the lens surfaces have been meticulously coated with multiple layers, ensuring optimal contrast across the entire field of view.

The telescope features a Crayford-type focuser with a 2.5" diameter, enabling precise focus adjustments through its dual speed knobs and an impressive 11:1 ratio. With a maximum load capacity of 2.7 kg, the focuser maintains its linearity even when used with large, professional astrophotography cameras.

For convenient mounting options, the tube can be attached to a mount using the Vixen foot or screwed in place using a 1/4"-20 thread. The Orion ED80T CF model also comes equipped with an accessory foot in the dovetail standard, allowing for easy attachment of a finder.

Key Features of the Orion ED80T CF Telescope:

• Professional-grade apochromatic triplet with a low dispersion element made from FPL-53 glass.
• 80 mm aperture and f/6 focal ratio, making it ideal for both visual observations and astrophotography.
• Ultra-lightweight carbon fiber tube for enhanced portability.
• Crayford focuser with a maximum load capacity of 2.7 kg.

Technical Parameters:

• Optical construction: Apochromatic refractor.
• Lens system: ED triplet with air gap.
• Front lens diameter (aperture): 80 mm.
• Focal length: 480 mm.
• Focal ratio: f/6.
• Number of low dispersion lenses: One.
• Low dispersion lens material: FPL-53 glass.
• Lens frame: Aluminum.
• Optical system coating: Full multi-layer coating (FMC).
• Inner diaphragms (baffles): Double.
• Inner diaphragm material: Black finished steel.
• Maximum back focus: 127 mm.
• Maximum usable magnification: 160x.
• Minimum usable magnification: 12x.
• Resolution: 1.45".
• Stellar magnitude range: 12.2 mag.
• Compatible glasses/diagonals: 1.25", 2".
• Focuser diameter: 2".
• Focuser type: Crayford, dual speed (11:1 ratio).
• Finder foot: Dovetail.
• Maximum focuser load: 2.7 kg.
• Mounting bracket: Vixen foot / 1/4"-20 thread.
• Tube material: Carbon fiber.
• Tube length (folded dew shield): 378 mm.
• Tube length (unfolded dew shield): 464 mm.
• Tube weight: 2.5 kg.

Included Accessories:

• Orion ED80T CF optical tube.
• Lens screw cap.
• 2" / 1.25" eyepiece adapter.
• Additional plugs.
• Transport box.
• Starry Night Special Edition software.

Warranty:

The Orion ED80T CF telescope is backed by a 12-month manufacturer's warranty, ensuring your satisfaction and peace of mind.
