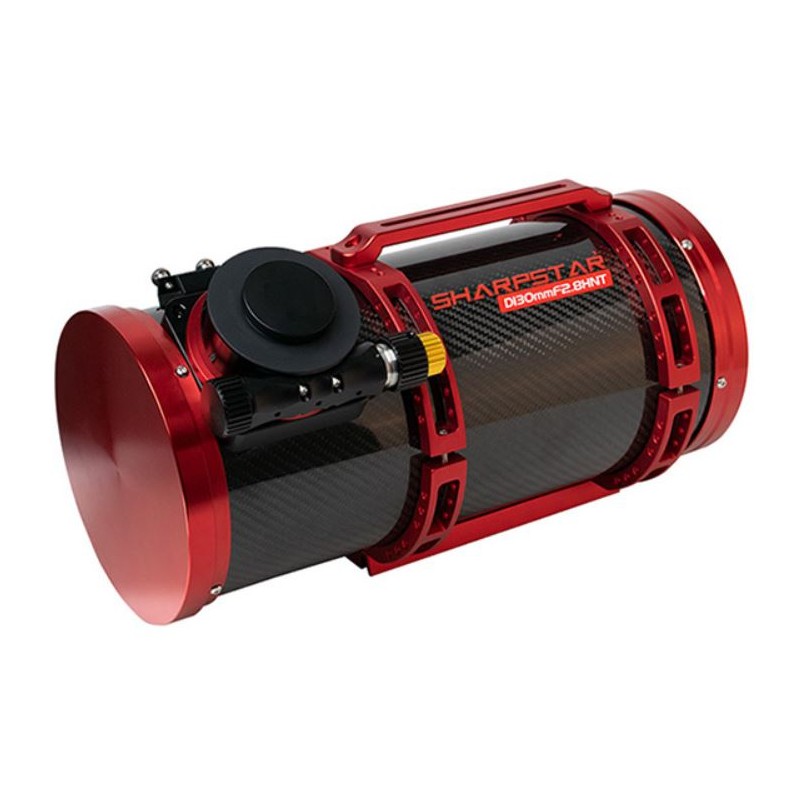

SharpStar 130 mm F/2,8 HNT hyperbolic astrograph with corrector and carbon tube (SKU: 130F2.8HNT)
1746.66 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
When it comes to astrophotography, the SharpStar 130mm F/2.8 HNT stands as a true Formula 1 car, leaving its competitors far behind. With its ultra-fast f/2.8 optics and an ultra-light carbon fiber tube housing cutting-edge technological solutions, there is no doubt that this comparison is absolutely fitting.
The optical system of this extraordinary astrograph features a Newtonian refractor with a 130mm aperture and a 364mm focal length. The main mirror, made from PZ33 glass, possesses a lower coefficient of thermal expansion akin to Pyrex glass. To further enhance its performance, the mirror is coated with a high-efficiency dielectric coating, reflecting up to 97 percent of incident light.
An integral component of the optics is the built-in field flatness corrector. This doublet, with an air gap, incorporates a lens made of low-dispersion (ED) glass.
In addition to its impeccable optical parameters, the SharpStar 130mm F/2.8 HNT is renowned for the high quality and precision of its mechanical parts. The robust rack & pinion focuser enables the installation of even heavy astronomical cameras, while the CNC-machined mounting rings and Losmandy rail ensure complete stability of the tube.
Key Features of the SharpStar 130mm F/2.8 HNT Astrograph:
- Professional-grade high-luminosity hyperbolic astrograph
- Main mirror coated with high-efficiency dielectric coating
- Two-element corrector with low-dispersion glass lens
- 55mm back focus, compatible with most cameras and camcorders on the market
- Sturdy hood guarantees linearity, even with heavy loads
- Ultra-light and durable carbon fiber tube
Technical Specifications:
- Optical construction: Hyperbolic reflector
- Aperture: 130mm
- Focal length of the main mirror: 364mm
- Length of the small axis of the secondary mirror: 65mm
- F-ratio: F/2.8
- Corrector lens system: ED doublet with air gap
- Main mirror material: PZ33 glass
- Main mirror coating: Dielectric coating
- Corrector working distance (back focus): 55mm
- Compatibility with APS-C sensors: Yes, full compatibility
- Compatibility with full-frame sensors: Yes, requires calibration ("flat")
- Thread for connecting the reducer with the camera or camcorder: M63/M48x0.75
- Resolution: 0.89 arc seconds
- Stellar magnitude range: 12.3 mag
- Focuser diameter: 2.5 inches
- Focuser type: Rack & pinion, dual speed
- Eyepiece output: 1.25 inches
- Finder mount: Vixen socket
- Mounting for tripod: Losmandy rail
- Tube material: Carbon fiber
- Tube length: 394mm
- Outer tube diameter: 174mm
- Tube weight: 3.2kg
- Weight of tube with attached accessories: 4.3kg
Included in the Set:
- SharpStar 130mm F/2.8 HNT astrograph
- M63/M48x0.75 adapter
- Mounting rings with finder socket and Vixen foot
- Security plugs
- Documentation
- Aluminum case
Guarantee:
The SharpStar 130mm F/2.8 HNT astrograph comes with a 24-month guarantee, ensuring peace of mind and satisfaction with your purchase.
