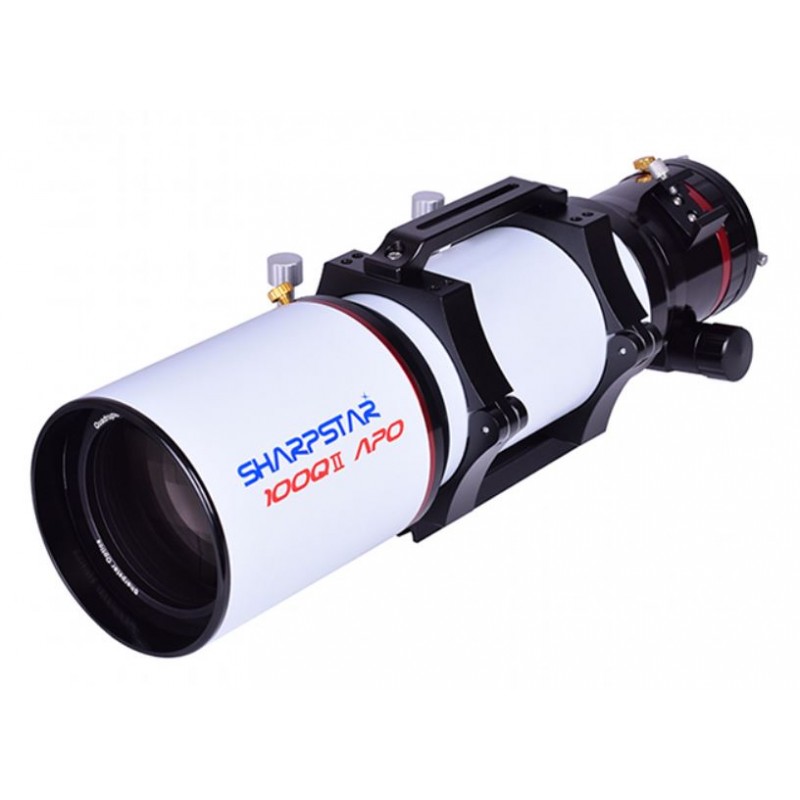

Sharpstar 100Q II APO ED 100/580 f/5,8 quadruplet

The Sharpstar 100Q II APO ED 100/580 f/5.8 is the latest iteration of the highly esteemed Sharpstar 100Q model. This remarkable telescope falls within a rare category of refractors that seamlessly combine the capabilities of a professional astrograph with a high light transmission and visual observation capabilities.

One of the standout features of this telescope is its ability to deliver exceptional image quality with impeccable correction of chromatic aberration and field curvature. This is made possible by the advanced optics employed in its apochromatic quadruplet system, featuring a single lens crafted from low-dispersion glass (ED). Furthermore, all optical surfaces are coated with a full multilayer coating (FMC), effectively eliminating internal light reflections and significantly enhancing image contrast.

The optical tube is equipped with a robust 3.2" focuser, which works in tandem with a rack & pinion mechanism boasting a 1:10 gear ratio and a dual-speed knob. This configuration ensures precise focusing adjustments for achieving the perfect focal point. Moreover, the focuser is designed to handle heavy loads, making it compatible with full-frame cameras and digital SLR cameras. The inclusion of a rotator enables convenient 360° rotation, allowing users to select the desired perspective for capturing frames.

Key Features of the Sharpstar 100Q II APO ED 100/580 f/5.8 Optical Tube:

• Four-element apochromatic refractor with a single low-dispersion (ED) lens, suitable for visual observation and astrophotography.
• Over 44mm circle of full illumination, providing complete coverage of full-frame sensors.
• Reinforced 3.2" focuser with a 1:10 gear ratio and built-in rotator.

Technical Specifications:

• Optical system: APO-ED quadruplet with air gap.
• Number of ED glass elements: 1.
• Objective diameter: 100mm.
• Focal length of the lens: 580mm.
• Aperture: f/5.8.
• Resolution: 1.16".
• Star range: 11.8 mag.
• Anti-reflective coating: Full multi-layer coating (FMC).
• Circle diameter of full illumination: > 44mm.
• Compatible sensor sizes: APS-C, full frame.
• Focuser diameter: 3.2".
• Type of eyepiece extractor: Rack & pinion with 10:1 microfocus and 360° rotation capability.
• Focus adjustment knob: Dual-speed.
• Side extractor thread: M82x1.
• Mounting foot: Vixen.
• Finder mount socket: Vixen.
• Tube length (with extended dew shield): 600mm.
• Tube length (with retracted dew shield): 508mm.
• Dew shield/tube diameter: 134mm/114mm.
• Tube weight (without accessories): 4.3kg.
• Total weight (including clamps and Vixen foot): 5.2kg.

Included Accessories:

• Sharpstar 100Q II APO ED 100/580 f/5.8 optical tube.
• Mounting clamps.
• Vixen foot.
• Aluminum transport case.
• Eyepiece reductions: 2", 1.25", M82/M48 adapter.

Warranty:

The Sharpstar 100Q II APO ED 100/580 f/5.8 comes with a 24-month warranty, ensuring peace of mind for your investment.
