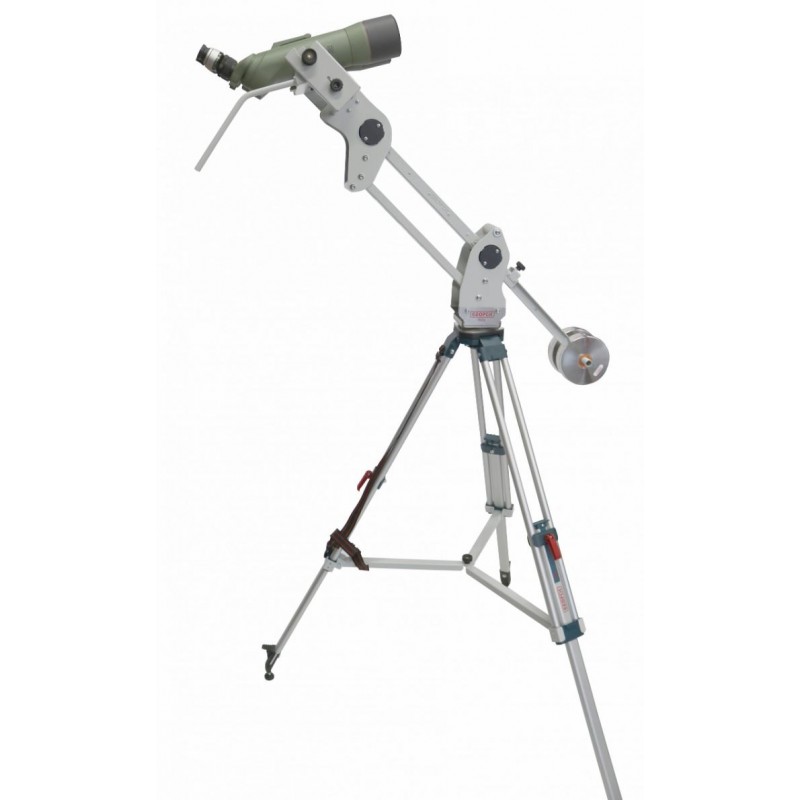

Geoptik Binoplus Pantograph (SKU: 20D800)

The Geoptik Binoplus Pantograph offers a comprehensive package designed specifically for conducting observations with large astronomical binoculars. This complete set comprises an aluminum tripod and a professional mount, ensuring a seamless and efficient experience for astronomers.

One of the standout features of this assembly is its smooth height adjustment capability. By utilizing the tripod socket with bearings, the rotation of the binoculars becomes effortless, eliminating the need for exerting force. The Geoptik Binoplus Pantograph mount can accommodate a load of up to 3.5 kg with a single counterweight. This remarkable weight-bearing capacity enables secure handling of even the largest models of astronomical binoculars, providing peace of mind during observations.

The assembly is affixed to a stable aluminum tripod that offers a maximum working height of 1420 mm. Both the tripod and the mount itself have been thoughtfully coated with a durable epoxy paint in RAL 7035, providing protection against scratches and ensuring their longevity.

Key Features of the Geoptik Binoplus Pantograph Binocular Mount:

• Wide Adjustment Range: The mount offers a broad range of adjustments, enabling comfortable observations even with heavy astronomical binoculars.
• Ball-Bearing Mounting: The tripod's ball-bearing mounting guarantees smooth and precise adjustments of the binocular's position, enhancing the overall observing experience.
• Stable Aluminum Tripod: The assembly is accompanied by a sturdy aluminum tripod, ensuring stability during observations.
• Damage-Resistant Epoxy Paint: Both the tripod and mount feature a surface finish of epoxy paint, safeguarding them against damage and maintaining their aesthetic appeal.

Technical Specifications:

• Maximum Load with 5 kg Counterweight: 3.5 kg
• Maximum Load with Additional 5 kg Counterweight (Optional): 9 kg
• Minimum Tripod Height: 88 cm
• Maximum Tripod Height: 145 cm
• Minimum Arm Length: 77 cm
• Maximum Arm Length: 120 cm
• Surface Finish: Epoxy Paint
• Tripod Weight: 5 kg
• Tripod Material: Aluminum
• Assembly Weight: 9 kg
• Set Weight: 21 kg
• Dimensions: 117 x 50 x 25 cm

Set Includes:

• Geoptik Binoplus Pantograph Binocular Mount
• 5 kg Counterweight (1 piece)

Warranty:

The Geoptik Binoplus Pantograph comes with a 24-month guarantee, ensuring peace of mind and customer satisfaction.

With the Geoptik Binoplus Pantograph, astronomers can enjoy a reliable, versatile, and precise solution for their astronomical binocular observations.
