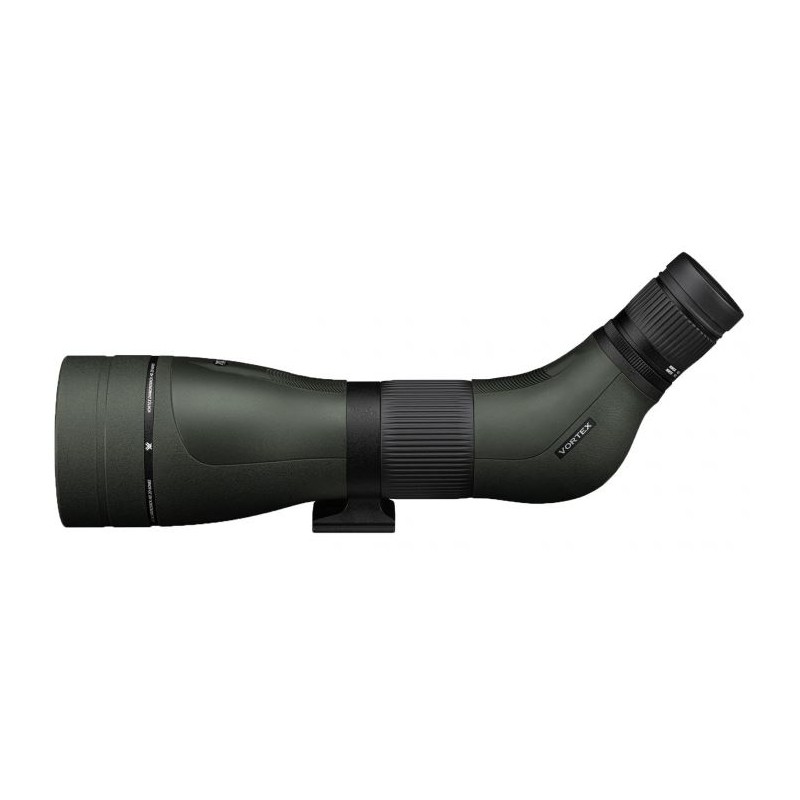

Vortex Diamondback HD 20-60x85 angled (SKU: DS-85A)

Introducing the Diamondback HD 20-60x85 Spotting Scope, the latest addition to Vortex's impressive lineup. This exceptional optical instrument is designed to meet the needs of hunters, sport shooters, and anyone who values superior craftsmanship and impeccable image quality. With its 45° eyepiece, the Diamondback HD ensures ergonomic perfection, facilitating the observation of objects high above the horizon, such as airplanes and astronomical phenomena.

At the core of this spotting scope lies an optical system constructed with top-of-the-line glass, which is enhanced with a multi-layer anti-reflective coating. This combination guarantees sharp images and vibrant, contrasting colors regardless of lighting conditions, whether it's a bright sunny day or subdued, diffused light. Boasting an 85mm aperture, the large front element of the Diamondback HD captures copious amounts of light, allowing it to deliver clear images even in situations where other models struggle to provide useful visuals.

Designed primarily for field use, the lens and eyepiece of the Diamondback HD 20-60x85 are protected by Vortex's proprietary ArmorTek coating. This coating ensures increased resistance to scratches and dirt, ensuring the longevity of the optics. Additionally, the telescope's housing has been reinforced and sealed, and dry argon gas has been used to fill it. These features render the equipment waterproof, enabling its use in the harshest conditions, including heavy rain, snow, or low temperatures.

Key Features:

85mm objective lens providing excellent image quality even during dawn or in overcast conditions.

Uncompromising image quality across all magnification settings.

Ergonomic design with a 45° angled eyepiece for optimal comfort during observation.

Reinforced and sealed housing with ArmorTek coating and dry argon filling.

Ideal for observing objects positioned high above the horizon, such as airplanes.

Technical Specifications:

• Magnification: 20-60x
• Objective Diameter: 85mm
• Optical System Material: BaK-4 glass
• Optical System Coating: Full anti-reflective multilayer coating, with additional ArmorTek coating for scratch protection.
• Prism Construction: Porro prism
• Field of View: 2.1-1.1° / 36-20m @ 1000m
• Exit Pupil Offset: 20.3-18.3mm
• Exit Pupil Diameter: 4.25-1.41mm
• Minimum Observation Distance: 7.5m
• Eyepiece: Fixed at a 45° angle
• Inert Gas Filling: Yes, argon
• Water Resistance: Yes
• Tripod Mount: Arca Swiss foot, 1/4" thread
• Length: 406mm
• Weight: 1.7kg

Kit Components:

• Vortex Diamondback HD 20-60x85 Spotting Scope
• Lens Cover
• Eyepiece Cover
• Neoprene Cover
• Optics Cleaning Cloth

Warranty:

Enjoy peace of mind with the unconditional lifetime manufacturer's warranty, covering not only manufacturing defects but also mechanical damages.

The Diamondback HD 20-60x85 Spotting Scope from Vortex is a remarkable instrument that brings together exceptional optics, rugged construction, and user-friendly features. Whether you're an avid hunter, a sports enthusiast, or simply someone who appreciates unparalleled image quality, this spotting scope is sure to exceed your expectations.
