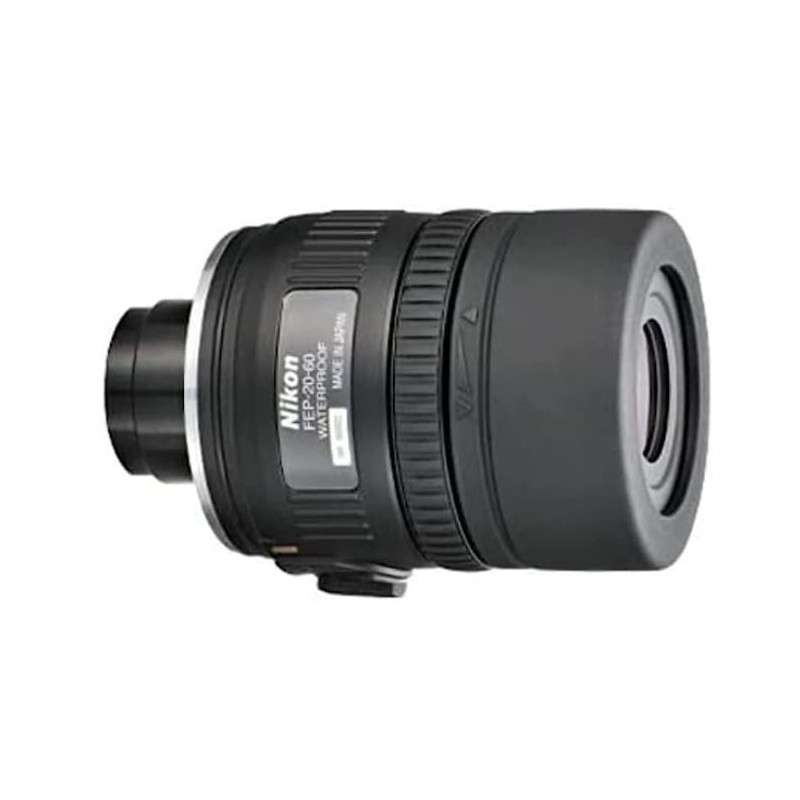

Nikon FEP 20-60 Eyepiece for EDG Spotting Scopes (BDB805AA)

Experience the world of nature like never before with the special variable magnification eyepiece designed exclusively for EDG spotting scopes. Whether you have the EDG model with an 85mm lens or the one with a 65mm lens, this eyepiece offers exceptional performance and versatility.

When mounted on an EDG model equipped with an 85mm lens, this eyepiece delivers a bright and expressive image with a magnification range of 20-60x. Similarly, when attached to the EDG model with a 65mm lens, it allows for a magnification range of 16-48x. This flexibility ensures that you can explore distant objects with clarity and precision.

One of the standout features of this eyepiece is its bayonet mount with a secure locking mechanism. This design enables quick and reliable connection to your telescope, ensuring a stable and hassle-free viewing experience.

The eyepiece incorporates multi-layer coatings that effectively minimize internal glare and reflections. As a result, you can expect improved light transmission and a clear, high-contrast image. The aspherical lenses further enhance the optical performance, delivering a vivid and well-balanced image with minimal distortion.

Not only does this eyepiece excel in optics, but it also boasts impressive durability. It is waterproof up to 2 meters for 10 minutes, and its fogproof construction, featuring gaskets and nitrogen filling, ensures reliable performance even in challenging weather conditions.

The eyepiece is designed with the user in mind, offering a generous distance of the exit pupil. This feature accommodates eyeglass wearers and provides a comfortable viewing experience for individuals with different visual requirements.

Additionally, the eyepiece is adapted for digiscoping with select Nikon COOLPIX cameras, expanding your possibilities for capturing stunning images and videos through your spotting scope.

Technical Specifications:

EDG 85/65 Spotting Scope:

• Magnification: 20-60x / 16-48x
• Real Field of View: 2.2°-1.1° / 2.8°-1.4° (calculated in accordance with ISO14133)
• Apparent Field of View: 42°-60° (calculated in accordance with ISO14133)
• Field of View at 1000m: 38-19m / 49-24m
• Exit Pupil: 4.3-1.4 / 4.1-1.4
• Relative Brightness: 18.5-2.0 / 16.8-2.0
• Exit Pupil Distance (mm): 18.4-16.5
• Length (mm): 99 (without lens caps)
• Outside Diameter (mm): 63 (without lens caps)
• Weight (g): 330 (without lens caps)
• Compatibility with FSB telescopes (digiscoping): Not applicable

Immerse yourself in the captivating world of nature with the versatile variable magnification eyepiece for EDG spotting scopes. Its exceptional optics, user-friendly design, and compatibility with Nikon COOLPIX cameras make it an indispensable accessory for wildlife enthusiasts and birdwatchers alike.
