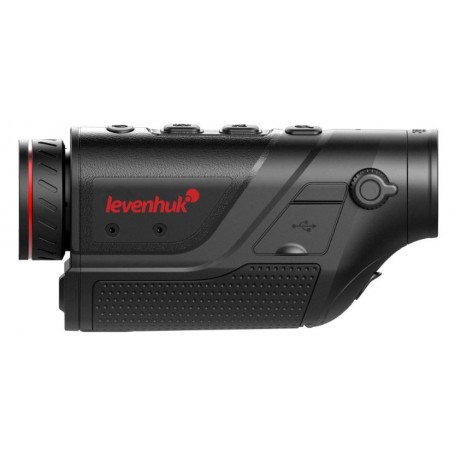

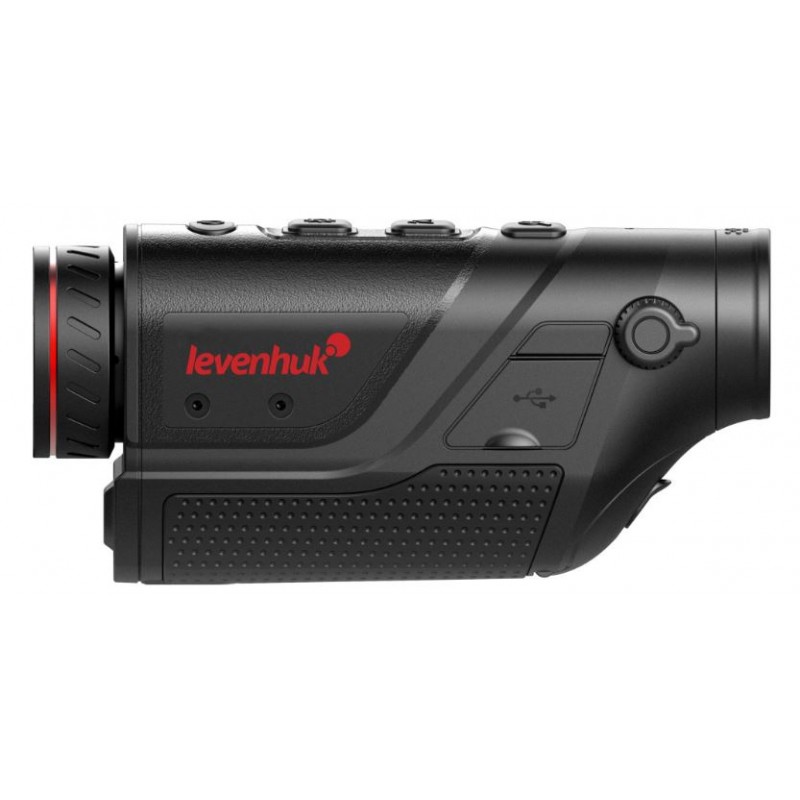

Levenhuk Fatum Z100 Thermal Monocular (SKU: 81721)
902.29 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The Levenhuk Fatum series presents a range of cutting-edge thermal imaging monoculars designed for capturing thermal images over large areas. These versatile Fatum thermal imagers serve as excellent handheld observation devices for hunters, as well as reliable tools for uniformed service personnel, security teams, and search groups.
Equipped with a 10mm f/1.0 lens and a high-resolution microbolometer sensor boasting 256 x 192 pixels, the Levenhuk Fatum Z100 Thermal Imager ensures exceptional thermal sensitivity of less than 50 mK. The resulting signal is displayed on a state-of-the-art FLCOS screen with a resolution of 1280 x 960 pixels and a compact diagonal of 0.4 inches. Powered by a 2200 mAh 18650 battery, this device offers continuous operation for up to 8 hours.
The Levenhuk Fatum Z100 stands out with its extensive wireless communication system, featuring WiFi and Bluetooth modules for effortless pairing and control via mobile devices. Additionally, the device offers video output capability, allowing seamless connection to an external display.
Encased in a waterproof housing that meets IP66 standards, the Fatum Z100 provides reliable protection against the elements. The housing is also equipped with a 1/4" thread socket, enabling easy mounting of the device on a photographic tripod.
Key Features of the Levenhuk Fatum Z100 Imager:
Microbolometer sensor with 256 x 192 px resolution and a NETD sensitivity of less than 50 mK.
Display with 1280 x 960 px resolution, supporting five color palettes.
Built-in laser target marker with a range of 200 m.
Maximum detection range of 1000 m for a car-sized object.
Up to 8 hours of continuous use with the included 18650 battery.
Possibility of mounting on a tripod with a 1/4" photographic thread.
Technical Specifications:
- Sensor resolution: 256 x 192 px.
- Refresh rate: 50 Hz.
- Pixel diameter: 12 µm.
- NETD: <50 mK.
- Lens: 10mm.
- Aperture: f/1.0.
- Eye relief: 12 mm.
- Optical magnification: 1.5x.
- Digital zoom: 1x, 2x.
- Angular field of view: 17.1 x 13°.
- Diopter adjustment range: -4 ÷ +2 D.
- Minimum focusing distance: 0.5 m.
- Detection range for car / human / deer / wild boar: 1000 m / 400 m / 330 m / 250 m.
- Recognition range for car / human / deer / wild boar: 400 m / 200 m / 170 m / 130 m.
- Laser target marker: Yes.
- Laser target marker range: 200 m.
- Display type: FLCOS.
- Display resolution: 1280 x 960 px.
- Display diagonal: 0.4 inches.
- Display brightness adjustment: 5 levels.
- Built-in WiFi module: Yes.
- WiFi operating frequency: 2.4 GHz.
- WiFi range: 15 meters.
- Bluetooth connectivity module: Yes.
- Compatibility with mobile application: Yes, TrackIR.
- Power supply: 18650 battery.
- Maximum battery life: 8 hours.
- Body material: Plastic.
- Tripod mount: 1/4" thread.
- Waterproof: Yes, IP66.
- Operating temperature range: -10 ÷ 50°C.
- Length: 14 cm.
- Weight: 335 g (with battery).
Included Accessories:
- Levenhuk Fatum Z100 Thermal Imager.
- USB cable.
- Video cable.
- Transport cover.
- Strap.
- Battery.
- Charger.
- Eyepiece cover.
- Documentation.
Warranty:
The Levenhuk Fatum Z100 Thermal Imager is backed by a 24-month guarantee.
