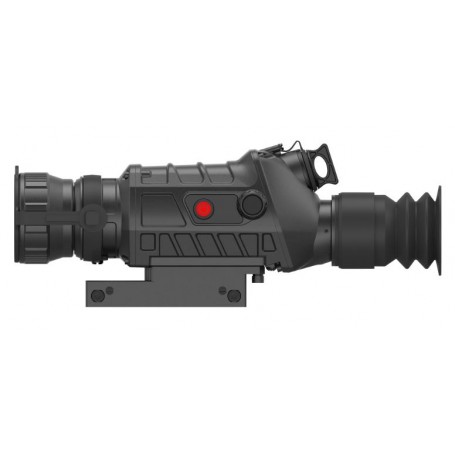

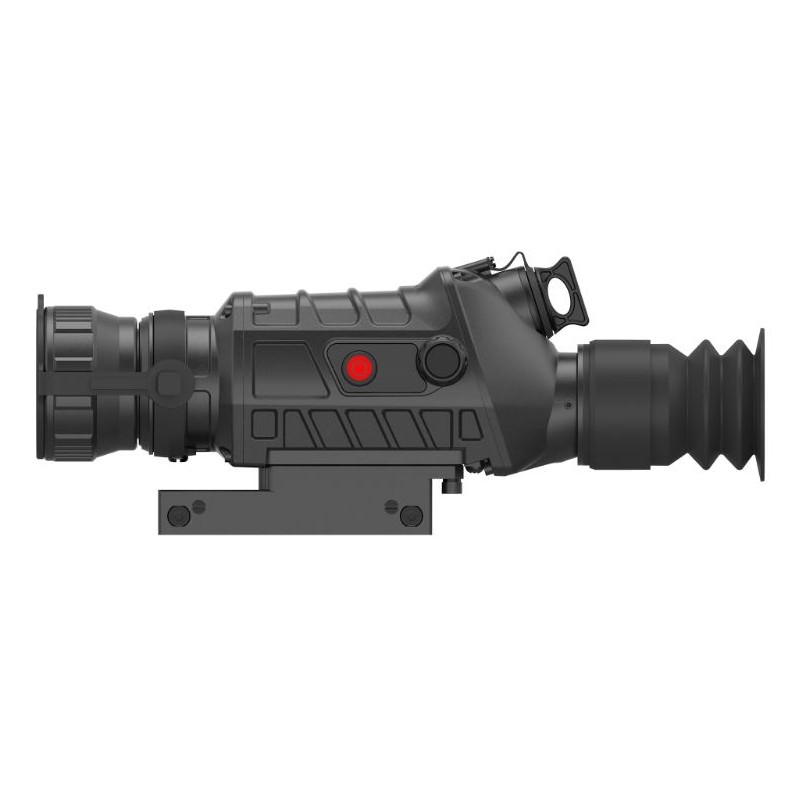

Levenhuk Fatum RS50 Thermal Sight (SKU: 81914)

The Levenhuk Fatum series offers cutting-edge thermal imaging sights that enable precise aiming even in challenging lighting conditions such as low light, fog, heavy rainfall, and dense vegetation. These state-of-the-art sighting devices are designed to enhance your shooting accuracy in various unfavorable environments.

The Levenhuk Fatum RS50 Thermal Imaging Sight is equipped with a high-quality 25 mm f/1.1 lens and a VOx microbolometer sensor boasting a resolution of 400 x 300 pixels. This sensor has an impressive thermal sensitivity level of less than 50 mK. The captured thermal signal is displayed on a high-resolution OLED screen with a pixel resolution of 1024 x 768 and a diagonal size of 0.39 inches. To power the device, it utilizes a reliable 18650 battery that offers up to 3 hours of continuous operation.

One notable feature of the Levenhuk Fatum RS50 is its video signal output, which allows you to connect the thermal imaging sight to an external display, providing enhanced visibility and convenience.

The entire device is encased in a waterproof housing that meets the IP67 standard, ensuring its durability and performance even in harsh weather conditions. It securely attaches to your firearm using a Picatinny rail, fastened with two clamping screws for added stability.

Key Features of the Levenhuk Fatum RS50 Thermal Imaging Sight:

VOx Microbolometer Sensor: Boasting a resolution of 400 x 300 pixels and a remarkable NETD sensitivity of less than 50 mK, this sensor delivers exceptional image quality and accuracy.

High-Resolution Display: The sight features a vivid OLED display with a resolution of 1024 x 768 pixels, supporting seven color palettes for optimal viewing in different scenarios.

Reticle Customization: Choose from ten different reticle patterns to suit your shooting preferences and requirements.

Impressive Detection Range: With a maximum detection range of 1400 meters for a car-sized object, you can confidently spot targets at a distance.

Extended Battery Life: The 18650 battery ensures up to 3 hours of continuous usage, allowing for extended periods of operation in the field.

Picatinny-Compatible Mount: The sight comes with a mount that adheres to the Picatinny standard, guaranteeing a secure and reliable attachment to your firearm.

Technical Specifications:

• Sensor Resolution: 400 x 300 pixels
• Sensor Type: VOx
• Pixel Diameter: 17 µm
• Sensor Spectral Range: 8 - 14 µm
• NETD Sensitivity: <50mK
• Refresh Rate: 50 Hz
• Lens: 25mm
• Lens Aperture: f/1.1
• Eye Relief: 48 mm
• Optical Magnification: 1.6x
• Digital Zoom: 1x, 2x, 4x
• Angular Field of View: 14.9 x 11.2°
• Diopter Adjustment Range: -4 ÷ +4 D
• Focus Adjustment: Manual
• Minimum Focusing Distance: 10 m
• Car / Human Detection Range: 1400 m / 700 m
• Vehicle / Human Recognition Range: 700 m / 350 m
• Display Type: OLED, color
• Display Resolution: 1024 x 768 pixels
• Display Diagonal: 0.39 inches
• Display Brightness Adjustment: 10 levels
• Display Contrast Adjustment: 10 levels
• Color Palettes: Warm White / Warm Black / Warm Red 1 / Warm Red 2 / Warm Red 3 / Warm Blue / Warm Green
• Reticle Selection: Yes, 10 types
• Picture-in-Picture (PIP): Yes
• External Display Connection: Yes, LEMO connector (PAL, 50 Hz)
• Power Supply: 18650 battery
• Maximum Battery Life: Up to 3 hours
• Body Material: Plastic
• Gun Mount: Picatinny
• Waterproof: Yes, IP67
• Operating Temperature Range: -40 ÷ 50°C
• Dimensions: 230 x 65 x 90 mm
• Weight: 698g

Included Accessories:

• Levenhuk Fatum RS50 Thermal Imaging Sight
• 18650 Battery
• Charger
• Video Cable
• Plastic Transport Case
• Documentation

Warranty:

The Levenhuk Fatum RS50 Thermal Imaging Sight is backed by a 24-month warranty, ensuring your satisfaction and peace of mind.
