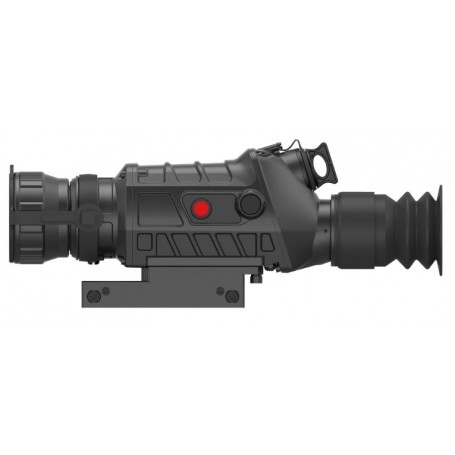

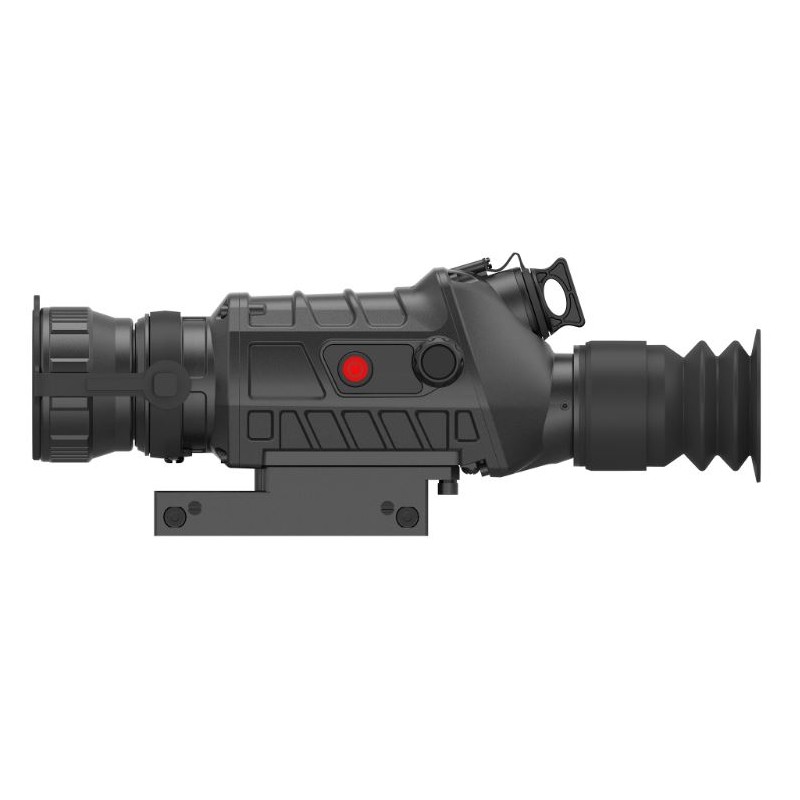

Levenhuk Fatum RS150 thermal sight (SKU: 81915)

The Levenhuk Fatum series thermal imaging sights are cutting-edge sighting devices designed to deliver accurate firing capabilities in low-light conditions, adverse weather such as fog or heavy rain, and even dense vegetation that limits your field of vision.

Equipped with a 50mm f/1.2 lens and a VOx microbolometer sensor boasting a resolution of 400 x 300 pixels, the Levenhuk Fatum RS150 Thermal Imaging Sight offers exceptional thermal sensitivity, measuring below 50 mK. The obtained signal is displayed on an OLED screen with a resolution of 1024 x 768 px and a compact 0.39" diagonal. Powered by a long-lasting 18650 battery, this sight ensures uninterrupted operation for approximately 3 hours.

This model also features a video signal output, allowing you to connect the viewfinder to an external display for enhanced versatility.

Encased in a waterproof housing that meets IP67 standards, the Levenhuk Fatum RS150 is securely attached to your weapon through a Picatinny rail, which is held in place by two clamping screws.

Key Features of the Levenhuk Fatum RS150 Thermal Imaging Sight:

VOx microbolometer sensor with a resolution of 400 x 300 px and an impressive NETD sensitivity below 50 mK.

1024 x 768 px display supporting seven color palettes, providing visual flexibility.

Ten reticle patterns to choose from, catering to individual preferences and shooting requirements.

Maximum detection range of 3000 m for a car-sized object, ensuring excellent target identification capabilities.

Up to 3 hours of continuous use with the included 18650 battery, offering prolonged operation in the field.

Mount compatible with the Picatinny standard, providing a secure attachment to your firearm.

Technical Parameters:

• Sensor resolution: 400 x 300 px.
• Sensor type: VOx.
• Pixel diameter: 17 µm.
• Spectral range of the sensor: 8 - 14 µm.
• NETD: <50 mK.
• Refresh rate: 50 Hz.
• Lens: 50mm.
• Light: f/1.2.
• Eye relief: 48 mm.
• Optical magnification: 3.3x.
• Digital zoom: 1x, 2x, 4x.
• Angular field of view: 7.5 x 5.6°.
• Diopter adjustment range: -4 ÷ +4 D.
• Focus adjustment: manual.
• Minimum focusing distance: 10 m.
• Car/human detection range: 3000 m / 1400 m.
• Vehicle/human recognition range: 1400 m / 700 m.
• Display type: OLED, color.
• Display resolution: 1024 x 768 px.
• Display diagonal: 0.39".
• Display brightness adjustment: 10 levels.
• Display contrast adjustment: 10 levels.
• Color palettes: warm white / warm black / warm red 1 / warm red 2 / warm red 3 / warm blue / warm green.
• Reticle options: Yes, 10 types.
• Picture in Picture (PIP): Yes.
• Ability to connect an external display: Yes, via LEMO connector (PAL, 50 Hz).
• Power supply: 18650 battery.
• Maximum battery life: 3 hours.
• Body material: Plastic.
• Gun mount: Picatinny.
• Waterproof: Yes, IP67.
• Operating temperature range: -40 ÷ 50°C.
• Dimensions: 250 x 65 x 90 mm.
• Weight: 743g.

Included Set Elements:

• Levenhuk Fatum RS150 thermal sight.
• 18650 battery.
• Charger.
• Video cable.
• Plastic suitcase.
• Documentation.

Guarantee:

The Levenhuk Fatum RS150 Thermal Imaging Sight comes with a 24-month guarantee, ensuring your satisfaction and peace of mind.
