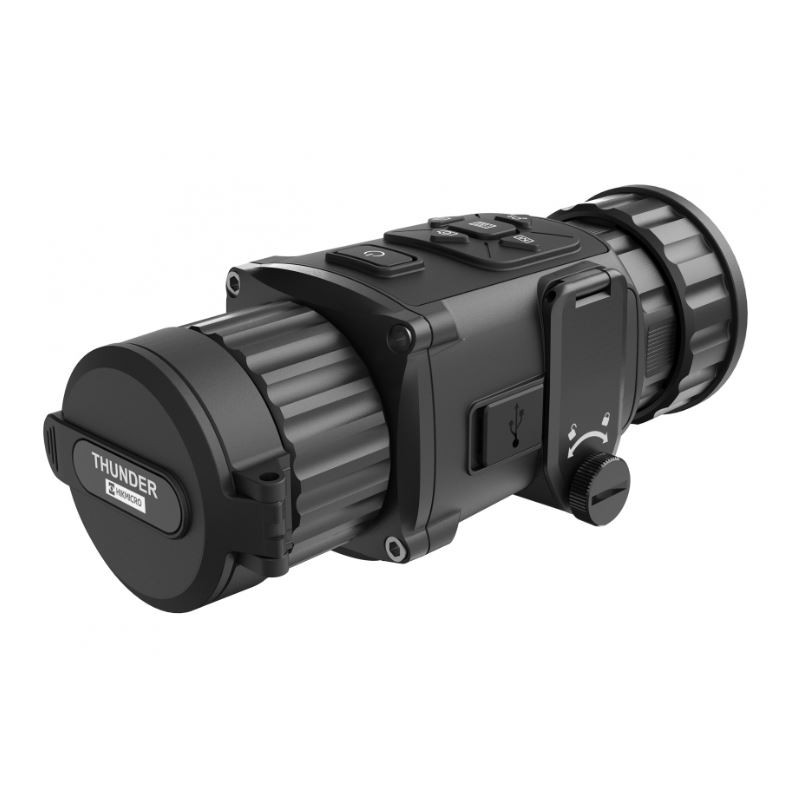

HIKVISION Thunder TH35C (384x288 px / 17 um / 50 Hz, SKU: HM-TR13-35XF/CWTH35C)

The Hikmicro Thunder TH35C is an advanced thermal imaging cap that comes with a 384 x 288 px sensor featuring a pixel size of 17 µm. It boasts a high-quality OLED display, with a resolution of 748 x 561 px in cap mode and 1024 x 768 px in observation monocular mode.

Design and Durability

The Hikmicro Thunder TH35C is constructed with a lightweight and durable polymer body, making it the lightest sight available in its market segment. Its robust structure ensures resistance to shocks, impacts, and various weather conditions. With an IP67 rating, the cap is protected against water, dust, and moisture, making it resilient to any weather conditions encountered during hunting trips. Additionally, the cap is designed with rubber buttons to facilitate silent operation, crucial for maintaining stealth during game approaches.

Modular Versatility

One of the standout features of Hikmicro thermal imagers is their modular design, enabling a single device to perform multiple functions. The Hikmicro Thunder TH35C is compatible with a range of accessories that transform it into your go-to tool for hunting and observation. These accessories are fully compatible with all Hikmicro Thunder and Thunder PRO thermal imaging devices, allowing users to customize their setup according to their specific requirements.

Three-in-One Functionality

The Thunder TH35C can serve as three devices, offering versatility and flexibility:

• Thermal imaging attachment: When paired with a telescope adapter (sold separately), it functions as a thermal imaging attachment, enhancing your telescopic capabilities.
• Thermal imaging sight: By adding an eyecup and mounting (sold separately), it operates as a standalone thermal imaging sight.
• Observation monocular: In its standard configuration, it functions as a powerful observation monocular.

Imaging Capabilities

The Hikmicro Thunder TH35C is equipped with a large 35 mm lens, ensuring exceptional brightness, resolution, and range. In viewfinder mode, the cap features a popular PiP (Picture in Picture) function, allowing hunters to simultaneously observe the target with precision while maintaining a wide field of view. The Thunder also provides digital zoom options of 2x, 4x, and 8x (available when the auxiliary eyecup is attached).

The cap offers four display modes for the hunter to choose from:

White hot: Warm objects appear in lighter tones, with higher temperatures represented by lighter colors.

Black hot: Warm objects are displayed in darker tones, with higher temperatures represented by darker colors.

Red hot: Similar to the black hot mode, but with red highlighting the hottest elements.

Fusion: Displays a color image ranging from high temperatures (white, yellow, red) to cold temperatures (pink, purple).

Technical Specifications

The key technical specifications of the Hikmicro Thunder TH35C include:

• Sensor resolution: 384 x 288 px
• Pixel size: 17 µm
• Refresh rate: 50 Hz
• Linear field of view at 100 m: 17.5 m
• Objective diameter: 35 mm
• Optical magnification: 1x
• Digital magnification: 2x, 4x, 8x
• Display: OLED, 1024 x 768 px / 748 × 561 px (depending on the operating mode)
• Range: Over 1200 m
• Number of image color palettes: 4
• Reticle: Yes
• Battery: Replaceable, 2x CR123 3.0 V (included)
• Battery life: Up to 4.5 hours with WiFi module turned off
• Charging: USB-C socket, 5 V DC, 2 A
• External power bank support: Yes
• Built-in memory: 16 GB
• WiFi communication: Yes
• Video recording: Yes
• Photo capture: Yes
• Housing sealing: Yes, IP67
• Operating temperature: -20 ÷ 55 °C
• Length: 153 mm
• Weight: 420 g

Included Accessories

The Hikmicro Thunder TH35C package consists of the following items:

• Thunder TH35C thermal imager
• CR123A battery (2 pieces)
• USB-C cable
• Optics cleaning cloth
• Carrying case

Warranty

The Hikmicro Thunder TH35C is backed by a 36-month warranty, ensuring peace of mind for users.
