Steiner Nighthunter H35 (640x512 px / 12 um / 50 Hz, SKU: 8700000101)

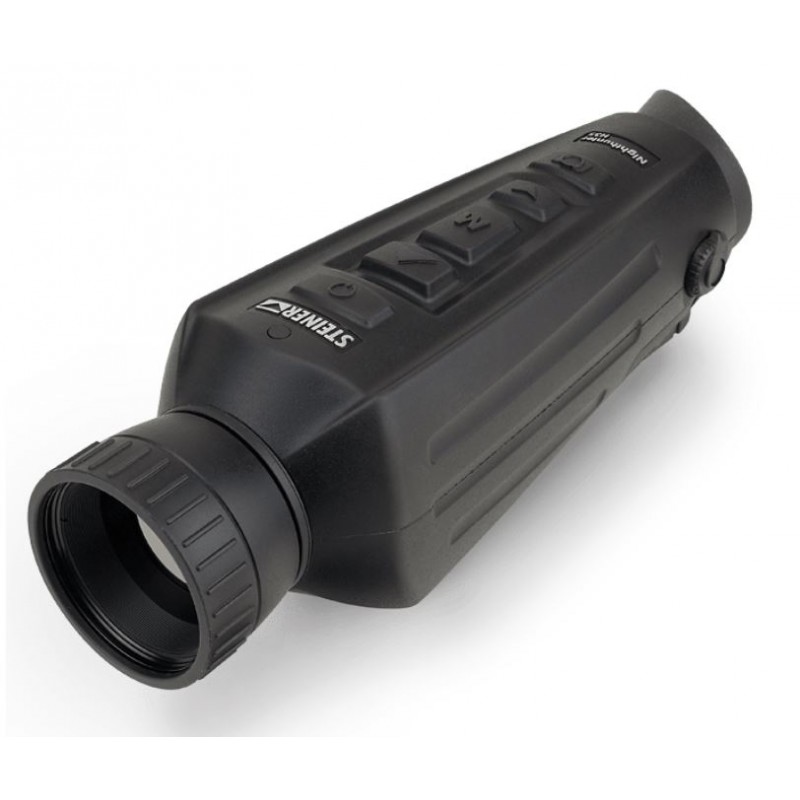

The Steiner Nighthunter H35 is a compact and powerful thermal imaging camera that raises the bar in terms of image quality, observation capabilities, durability, and user-friendliness. With its exceptional features and practical applications, this model comes highly recommended not only for professional hunters but also as a reliable tool for uniformed services, rescuers, and security guards.

Equipped with an advanced optical system featuring a 35mm focal length lens and an impressive f/1.0 aperture, the Nighthunter H35 processes signals through a low-noise sensor boasting a resolution of 640 x 512 px. Thanks to Steiner's innovative Quantum Vision technology, this camera delivers sensational sensitivity while maintaining an imperceptible level of interference. The LCOS screen, offering a resolution of 1280 x 960 px, incorporates ten-step adjustments for brightness and contrast. It also supports the picture-in-picture (PIP) function, providing a comprehensive and customizable display.

In addition to its outstanding optoelectronic parameters, the Steiner Nighthunter H35 shares the hallmark qualities of other legendary Steiner products: superior comfort and resistance to damage. The lightweight and robust housing is constructed using Makrolon™ material, specially developed to meet the most stringent standards for vibrations, impacts, and adverse weather conditions. The large rubberized buttons on the camera's exterior ensure easy operation, even while wearing thick gloves.

Key Features of the Steiner Nighthunter H35 Thermal Imaging Camera:

Low-noise sensor with a remarkable resolution of 640 x 512 px, incorporating Steiner Quantum Vision technology for exceptional image quality.

LCOS display with a wide range of brightness and contrast adjustments, allowing users to choose from five color palettes.

Durable construction made of Makrolon™ material, providing resistance to shocks, falls, and unfavorable weather conditions.

Large rubberized buttons and a comfortable eyecup ensure the highest level of user comfort.

Ability to connect with mobile devices via WiFi network and the Steiner Connect App.

Technical Specifications:

• Sensor: 640 x 512 px
• Pixel size: 12 µm
• Spectral range: 8 - 14 µm
• NETD: <50 mK
• Refresh rate: 50 Hz
• Focal length of the lens: 35 mm
• Aperture: f/1.0
• Magnification: 2 - 16x
• Field of view: 12.5 x 9.4 m @ 100 m
• Focus adjustment: Manual
• Display: LCOS, 1280 x 960 px, color
• Brightness control: Yes, with ten-step adjustments
• Contrast adjustment: Yes, with ten-step adjustments
• PIP: Yes
• Picture color palette selection: Yes, offering five options
• Photo-saving capability: Yes
• Image saving format: .jpg
• Movie recording capability: Yes
• Movie recording format: mp4
• Energy-saving mode: Yes
• Distance measurement: Stadiametric
• Hottest point tracking: Yes
• Automatic switch-off: Yes
• Menu language selection: German, English, Italian, French, Spanish
• Memory: 16 GB
• Power supply: 2 batteries (18650, 6000 mAh)
• Charger: USB-C, 5 V DC, max 10 W
• Battery life: >4.5 hours (preview mode only)
• Connectors: USB 2.0 (type C), Micro HDMI
• Wireless communication: WiFi, Steiner Connect App
• Operating temperature range: -10 ÷ 50 °C
• Storage temperature range: -30 ÷ 60 °C
• Impact resistance: 30 G (in accordance with the standard IEC60068-2-27)
• Vibration resistance: Yes (in accordance with the standard IEC60068-2-6)
• Water resistance: Yes
• Drop resistance: Up to 1 mAh
• Housing material: Steiner Makrolon™
• Certificates: UN38.3, RoHS, CE, FCC, EAC
• Dimensions: 232 x 70 x 72 mm
• Weight: 695 g

Detection / Recognition / Identification Range:

• Human: 1800 m / 450 m / 225 m
• Vehicle: 4,400 m / 1,100 m / 550 m
• Deer: 3200 m / 825 m / 400 m
• Roe deer: 2000 m / 500 m / 250 m

Included in the Set:

Steiner Nighthunter H35 thermal imaging camera

Guarantee:

24 months of warranty coverage
