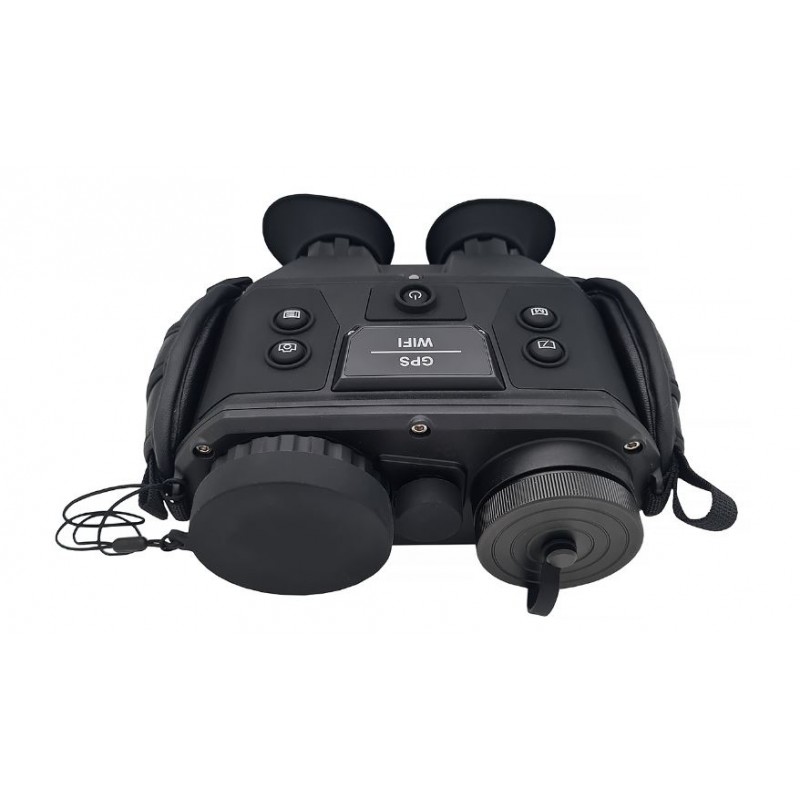

HIKVISION DS-2TS16-50VI/W Fusion

Introducing the HIKVISION DS-2TS16-50VI/W Fusion thermal imaging binoculars, a companion product to the HIKVISION DS-2TS16-35VI/W Fusion model. The key distinction between these two devices lies in the focal length of the thermal imaging module, which is 50 mm in this model. This longer focal length significantly enhances the detection, recognition, and identification range compared to the DS-2TS16-35VI/W Fusion variant.

The HIKVISION DS-2TS16-50VI/W Fusion combines the advantages of three separate devices. It features a top-of-the-line VOx microbolometer sensor with a resolution of 640 x 512 px, known for its exceptional performance in the market. Despite lacking cooling, this sensor exhibits minimal noise and high sensitivity, enabling the detection of heat sources from distances of nearly 4.5 km. For capturing visible light, the manufacturer has incorporated a CMOS matrix with a resolution of 1024 x 768 px, utilizing progressive scan technology. This sensor also functions in night vision mode, capable of capturing images with a minimum light intensity of 0.001 lux.

What sets this product apart is the ability to merge images from both sensors, resulting in unprecedented detail in thermography. The device is equipped with a large OLED screen, boasting a diagonal of 0.39" and a resolution of 1024 x 768 px, ensuring comfortable observations.

HIKVISION has developed advanced algorithms for image processing, including Digital Detail Enhancement (DDE), 3D Digital Noise Reduction (3D DNR), and Automatic Gain Control (AGC).

As a professional-grade tool designed for specialized tasks, the binoculars' casing is fully sealed to meet IP67 standards. This means it can withstand various environmental conditions, including heavy rain and snowfall.

Key Features of the HIKVISION DS-2TS16-50VI/W Fusion Thermal Imager:

VOx sensor with a single pixel size of 17 µm

CMOS matrix for capturing visible light

Image fusion capability from both sensors

OLED color display for vivid and detailed images

Automatic Gain Control and 3D Digital Noise Reduction technology

Image fusion technology utilizing both VOx and CMOS sensors for unprecedented image detail

Detect heat sources (e.g., cars) from distances exceeding four kilometers

Technical Specifications:

• Thermal imaging sensor type: Uncooled microbolometer (VOx)
• Thermal imaging matrix resolution: 640 x 512 px
• Pixel size: 17 µm
• NETD: <40 sq m
• Spectral range: 8 - 14 µm
• Viewing angle: 12.4° x 9.9°
• Instantaneous field of view (IFOV): 0.34
• Focal length of the thermal imaging module: 50 mm
• Aperture: f/1.0
• Digital magnification: 4x
• Optical magnification: 3.9x
• Visible range matrix type: CMOS
• Visible range matrix diagonal: 1/3"
• Visible range resolution: 1280 x 960 px @ 25 fps
• Minimum illumination for night vision mode: 0.001 lx, f/1.0
• Focal length of the optical module: 12 mm
• Focus setting: Manual
• Display: OLED, 1024 x 768 px
• Display diagonal: 0.39"
• Battery: 18650 (4 pieces)
• Battery life: Up to 7 hours
• Charging: 5V DC, 2A
• Full charge time: 5 hours
• WiFi module: Yes
• GPS module: Yes
• Built-in memory: 32 GB
• Video recording: Yes
• Photo capture: Yes
• Connectors: BNC, DB9, USB
• Sealed housing: Yes, IP67
• Tripod thread: UNC 1/4"-20
• Dimensions: 164 x 183 x 74 mm
• Weight: 1 kg

Detection/Recognition/Identification Range (Thermal Imaging Module):

• Car: 4510 m / 1127 m / 564 m
• Human: 1471 m / 368 m / 184 m

Package Contents:

• HIKVISION DS-2TS16-50VI/W Fusion thermal imaging binoculars
• Charger
• Eight 18650 batteries
• Optics cleaning cloth
• USB/DB9/BNC cable
• Documentation

Warranty:

36 months
