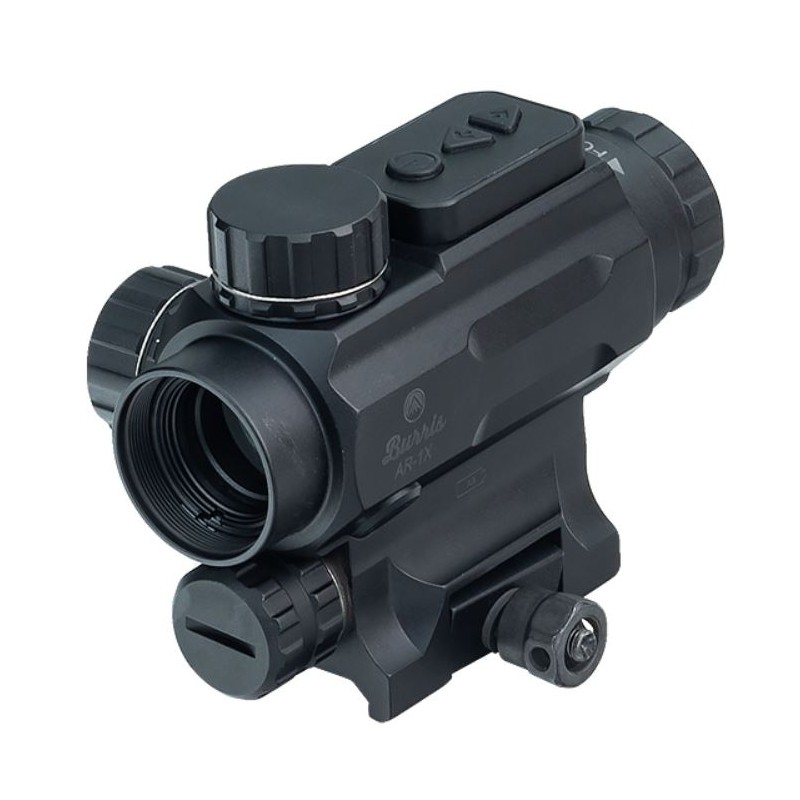

Burris AR-1X Prism Sight (300214)

The Burris AR-1X is an exceptional prism sight specifically designed for tactical applications and dynamic binocular shooting within close and medium distances. Its impressive features and cutting-edge technology make it a top choice for professionals in the field.

One of the standout features of the AR-1X is its large field of view, providing shooters with a comprehensive visual perspective. The front lens, boasting a 20 mm aperture, ensures a bright and clear image even in challenging lighting conditions. Additionally, the optical system is equipped with a full-layer Hi-Lume coating that enhances contrast and eliminates glare, resulting in an optimal viewing experience.

To ensure durability and reliability, the AR-1X is housed in a sealed, waterproof casing filled with dry nitrogen. This innovative design eliminates the issue of fogging up the sight during sudden temperature changes, allowing shooters to focus on their targets without any distractions.

Equipped with the ballistic CQ-1X type reticle, available in green or red illumination, the AR-1X offers enhanced binocular shooting capabilities. This reticle has been optimized to provide a wider field of view while reducing eye fatigue. The central spot, measuring 4.4 MOA in diameter, facilitates quick target acquisition at short distances. Additionally, the reticle features ballistic markers calibrated for 5.56 and 7.62 caliber bullets, enabling shooters to make accurate corrections when engaging targets up to 550 meters away.

Key Features of the Burris AR-1X Prism Sight:

Multi-layer Burris Hi-Lume coating on lenses for improved performance in low-light conditions and glare reduction.

Sealed housing filled with dry nitrogen for superior waterproofing and fog resistance.

Ballistic CQ-1X reticle optimized for binocular shooting, calibrated for 5.56 and 7.62 caliber ammunition at distances up to 550 meters (600 yards).

Precise windage and elevation adjustment with 0.5 MOA per click increments.

Night vision device compatibility for enhanced versatility.

Technical Specifications:

• Magnification: 1x
• Objective Lens Diameter: 20 mm
• Exit Pupil Offset: 6.9 cm
• Field of View: 22.9 meters at 91.4 meters / 75 feet at 100 yards
• Minimum Focusing Distance: 0.5 meters
• Optical Axis Height: 4.1 cm above the mounting rail
• Anti-Reflective Coating: Full Burris Hi-Lume coating
• Parallax: Less than 1 MOA at 91.4 meters
• Reticle Type: Ballistic CQ-1X
• Reticle Illumination: Red, Green
• Brightness Adjustment: 5 steps for both backlight colors
• Central Spot Size: 4.4 MOA
• Adjustment per Click: 0.5 MOA
• Max Height Adjustment: 120 MOA
• Max Windage Adjustment: 120 MOA
• Recommended Caliber: 5.56 mm, 7.62 mm
• Power Supply: AA battery
• Night Vision Device Compatibility: Yes
• Inert Gas Charging: Nitrogen
• Body Material: Aluminum
• Body Finish: Matte Black
• Mount: Picatinny / Weaver rail
• Length: 101 mm
• Weight: 374 g

Kit Components:

• Burris AR-1X Prismatic Sight

Warranty:

The Burris AR-1X prism sight is backed by a lifetime manufacturer's warranty. Burris stands behind the quality of their product with an unconditional warranty, demonstrating their commitment to customer satisfaction.
