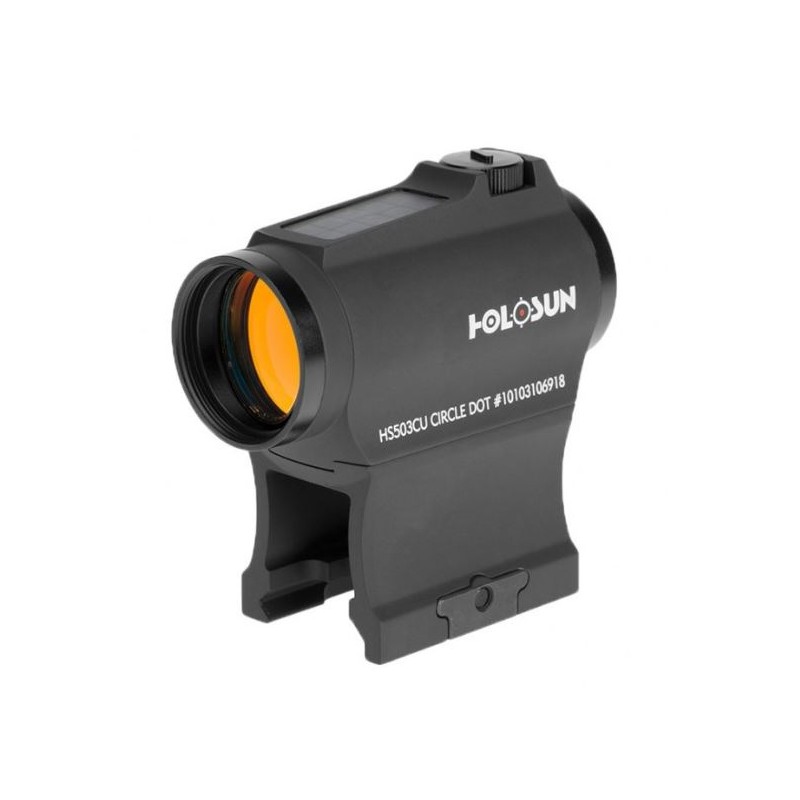

Holosun HS503CU Red Dot (SKU: 17614)

The Holosun Red Dot HS503CU is a lightweight and compact closed-end red dot sight specifically designed for carbines and automatic shotguns. It is a versatile optic suitable for both daytime and nighttime use in conjunction with night vision devices.

Equipped with a 20mm aperture and a single magnification optical system, this collimator boasts exceptional features. The optics are meticulously designed to achieve zero parallax and provide unlimited eye relief, ensuring excellent accuracy and optimum comfort even for individuals wearing corrective glasses. Furthermore, the lenses are coated with high-transmission anti-reflective coatings, enhancing overall clarity.

The sight displays a 2 MOA target spot within a 65 MOA circle, utilizing an energy-efficient LED diode. This, combined with the Shake Awake automatic wake-up system and an integrated photovoltaic panel, enables the sight to operate for tens of thousands of hours without requiring battery replacement. Additionally, the collimator incorporates an insolation sensor that automatically adjusts the dot's brightness, particularly useful when transitioning between different lighting conditions.

Crafted from a solid block of aluminum, the housing of the Holosun Red Dot HS503CU is finished using the micro-arc anodizing method. With added sealing, it meets the stringent requirements of the IP67 class, ensuring full resistance to adverse weather conditions.

Key Features of the Holosun Red Dot HS503CU Collimator:

Optics with single magnification, zero parallax, and unlimited eye relief

Lenses coated with red anti-reflective coatings (MC)

Ten-step adjustment range for reticle illumination intensity in day mode

Two-stage brightness adjustment in cooperation with thermal imaging devices

Battery and solar panel power supply system

Shake Awake system for immediate activation with weapon movement

Solar Failsafe technology for automatic spot brightness adjustment

Waterproof body made of durable aluminum alloy protected by micro-arc anodizing

Technical Specifications:

• Sight type: Collimator sight
• Magnification: 1x
• Lens diameter: 20mm
• Exit pupil offset: Unlimited
• Parallax: <±1 MOA
• Optical system coating: Multilayer coating (MC)
• Aiming spot: 2 MOA spot, 65 MOA circle
• Spot illumination color: Red
• Light source: LED
• Day mode grid illumination intensity adjustment: Ten levels
• Night vision mode grid illumination intensity adjustment: Two stages
• Windage adjustment range (max): 50 MOA
• Windage adjustment (per click): 1/2 MOA
• Elevation adjustment range (max): 50 MOA
• Elevation adjustment (per click): 1/2 MOA
• Power supply: CR2032 battery
• Battery life: Up to 50,000 hours
• Auto shutdown: Yes, after 10 minutes
• Tube material: Aluminum 6061 T6 micro-arc anodized (MAO)
• Tube finish: Matte black
• Waterproof: Yes, IP67
• Operating temperature range: -10°C to 50°C
• Mounting: Weaver/Picatinny rail
• Dimensions: 71mm x 36mm x 69mm (with high mount)
• Weight: 138g (with high mount)

Included Accessories:

• Holosun Red Dot HS503CU collimator
• 1/3 co-witness assembly
• Low mount
• Eyepiece and objective caps
• CR2032 battery
• Optics cleaning cloth
• Torx keys
• Spare battery tray
• Optics adjustment key
• Documentation

Warranty:

The Holosun Red Dot HS503CU comes with a lifetime warranty against mechanical defects, 5 years for optics, and 3 years for electronics, providing peace of mind and confidence in the product's quality.
