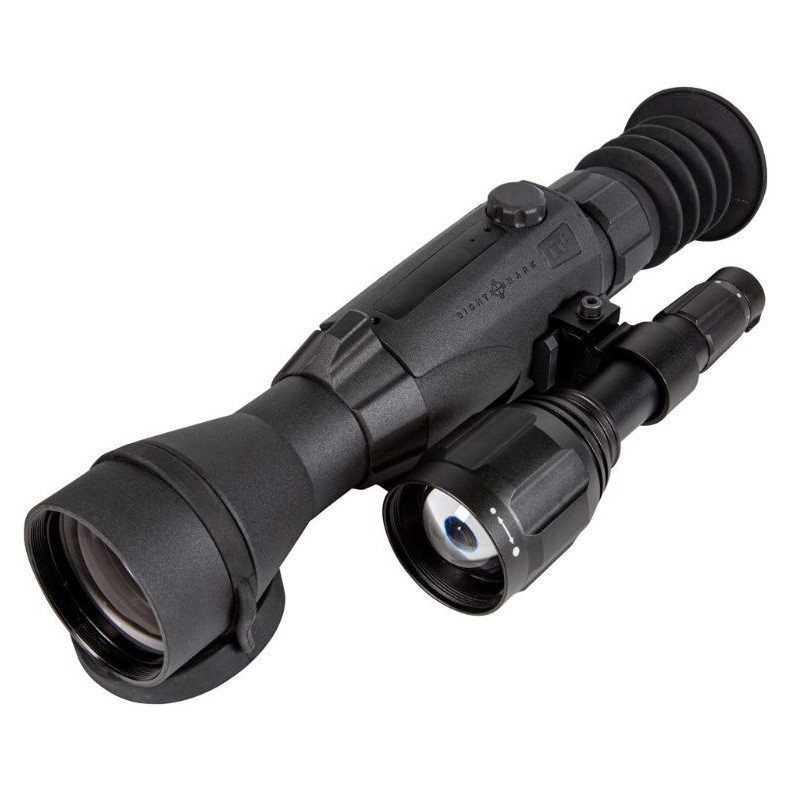

Sightmark Wraith 4K MAX 3-24x50 (SKU: SM18030)

The Sightmark Wraith 4K MAX 3-24x50 is an advanced digital viewfinder that offers exceptional performance both during the day and at night, complete with a dedicated infrared illuminator. This cutting-edge device boasts a high-class CMOS matrix with an impressive resolution of 4000 x 3000 pixels, ensuring crisp and detailed images displayed in stunning HD quality. Unlike many other digital sights on the market, the Sightmark Wraith 4K MAX 3-24x50 excels in nighttime operations, thanks to its integrated rail-mounted infrared illuminator that emits a 850 nm wavelength radiation.

One of the key highlights of the Sightmark Wraith 4K MAX 3-24x50 is its outstanding usability. The viewfinder offers a comfortable viewing experience, courtesy of its large exit pupil offset. Moreover, users have the freedom to personalize their experience by choosing from a selection of ten illuminated reticles, which can be further customized with nine different colors. For those who own multiple firearms, this device also provides the convenience of saving up to four separate ballistic profiles in its memory.

The Sightmark Wraith 4K MAX 3-24x50 goes beyond exceptional image quality and ergonomic design. It boasts a rugged construction crafted entirely from a durable aluminum alloy, enabling it to withstand drops from heights of nearly 1 meter and the recoil of a .308 caliber weapon. Additionally, the body is sealed to meet the requirements of the IPX5 waterproof class.

Key Features of the Sightmark Wraith 4K MAX 3-24x50 Viewfinder:

CMOS matrix with a remarkable 4000 x 3000 px resolution for recording images in both day and night vision modes.

Ability to capture movies in stunning 4K quality and take high-resolution photos.

Offers ten types of reticles with customizable backlight color options.

Wide range of adjustments for aiming point height and wind force compensation.

Rugged aluminum housing that is water-resistant and capable of withstanding recoil from a .308 caliber firearm.

Built-in lithium-ion battery providing up to eight hours of continuous operation.

Technical Specifications:

• Objective diameter: 50 mm
• Optical magnification: 3x
• Lens focal length: 60 mm
• Aperture: f/1.2
• Exit pupil offset: 69 mm
• Field of view: 10.5 m @ 100 m / 31.5 ft @ 100 yds
• Minimum focusing distance: 5 m / 16.4 ft
• Diopter adjustment: ± 5 D.
• Digital magnification: 1 - 8x
• Sensor type: CMOS
• Matrix resolution: 4000 x 3000 px
• Display type: LCOS
• Display resolution: 1280 x 720 px
• IR illuminator: LED
• IR radiation wavelength: λ = 850 nm
• IR illuminator power equivalent: 2500 mW
• Night vision detection range: 274 m / 300 yds
• Ballistic profile memory: 4 profiles
• Number of reticles: 10
• Number of reticle backlight colors: 9
• Windage adjustment range (per click): 0.3 MOA
• Elevation adjustment range: 60 MOA
• Windage adjustment range: 227 MOA
• Movie recording capability: Yes, in MP4 format (4K / 1080p / 720p)
• Photo capture capability: Yes, in JPEG format (1080 x 720 px)
• Maximum memory card size: 256 GB
• IR illuminator power supply: 2 CR123A batteries
• IR illuminator operation time: 90 minutes at maximum power
• Viewfinder power supply: Built-in lithium-ion battery
• Battery life: 5 hours in recording mode / 8 hours in preview mode with WiFi module disabled
• External viewfinder power supply: MicroUSB port, 5 V
• Body material: Aluminum
• Waterproof: Yes, IPX5
• Drop resistance: Yes, withstands drops from 90 cm / 3 ft
• Maximum caliber: .308 Winchester
• Mounting rail: Picatinny
• Additional accessory rail: Weaver
• Dimensions: 305 x 63 x 75 mm / 12 x 1.9 x 3 inches
• Weight: 981 g

Included Components:

• Sightmark Wraith 4K MAX 3-24x50 viewfinder
• Daylight filter
• IR illuminator
• Lens cap
• Picatinny mount
• USB cable
• Documentation

Warranty:

The Sightmark Wraith 4K MAX 3-24x50 viewfinder comes with a 24-month warranty, ensuring peace of mind and customer satisfaction.
