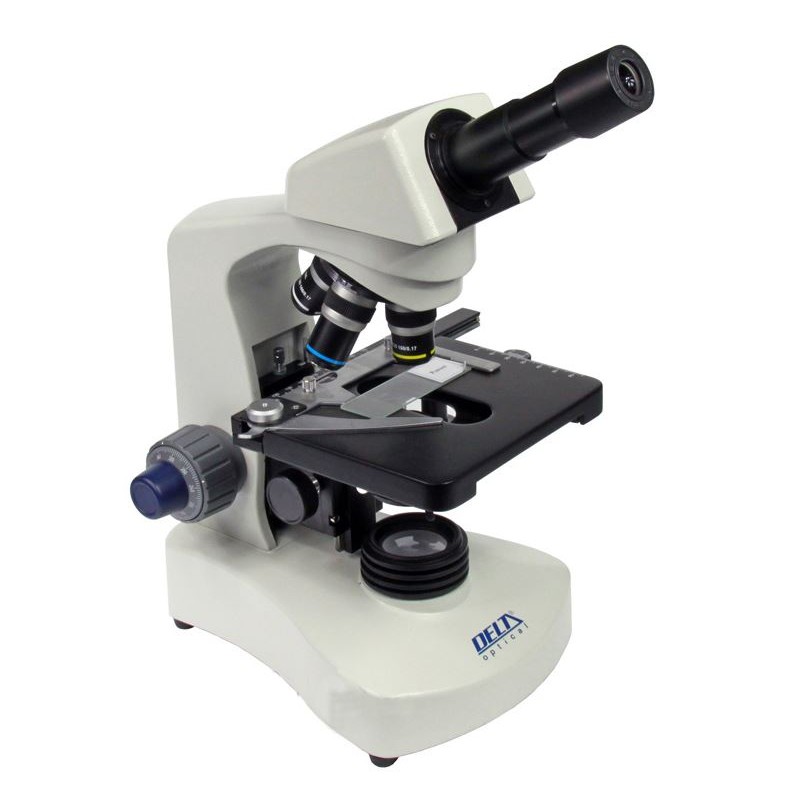

Delta Optical Genetic PRO Mono 40-1000x Microscope (SKU: DO-3400)
259.38 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The Genetic Pro microscope is a versatile biological microscope that offers a range of magnifications, from 40x to 1000x, with the possibility of extending it to 1600x with optional accessories. It boasts reliable achromatic optics and a robust mechanical construction.
The Genetic Pro microscope series provides various expansion options through optional accessories, enabling users to employ different observation techniques like dark field observation or phase contrast.
Here are the technical specifications of the microscope:
- Tube length: 160 mm
- Monocular head: 360° rotation, 30° inclination, equipped with a WF10x/18 mm eyepiece
- Quadruple nosepiece
- Achromatic lenses: 4x, 10x, 40x (spring-loaded), and 100x (immersion, spring-loaded)
- Focusing system: Coarse movement (macroscopic screw) and fine movement (micrometer screw)
- Focusing sensitivity and precision (micrometer screw): 0.004 mm (4 μm), with a range of 24 mm
- Bright field condenser: Abbe type with NA 1.2, iris diaphragm, and filter holder
- Stage: Accommodates two slides, table dimensions: 142 mm x 132 mm, XY movement range: 75 mm x 40 mm
- LED illumination: 3W with adjustable brightness control
- Power supply: 230V mains
- Permissible ambient temperature: 0°C to +40°C
- Microscope height: 36 cm
The equipment included with the microscope consists of:
- WF 10x/18 mm eyepieces (2 pieces)
- Achromatic lenses: 4x, 10x, 40x, and 100x (DIN)
- Green contrast filter
- Immersion oil
- Anti-dust cover for the microscope
Additionally, the following optional accessories are recommended for expanding the set:
- 16x, 23 mm eyepieces (enables magnification up to 1600x)
- 60x lens
- Dark field oil condenser
- Dry dark field condenser
- Straight polarization kit
- Phase contrast kit
- Polarity analysis table
- Heating table
- Goose neck halogen lighting
- Helicon Focus photo processing software
- Calibration glass: 1/100 mm
- Coverslips and coverslides
- Pre-made slides
- Immersion oil
- Adapter for connecting a reflex camera (23 mm / T2)
- Microscope cameras for computer: 1.3, 3, and 5 Mpix / USB
The Genetic Pro microscope comes with a warranty period of 2 years.
