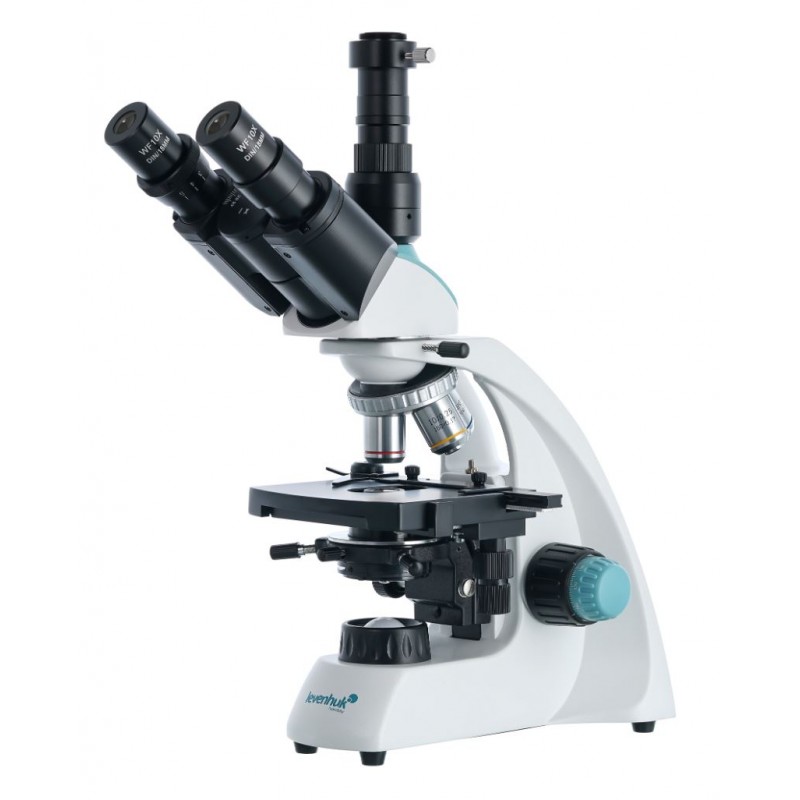

Levenhuk 400T (SKU: 75421)

The Levenhuk 400T is an exceptional trinocular microscope designed specifically for laboratory use. Its versatile features make it an indispensable tool for medical professionals, microbiologists, biochemists, and other specialists engaged in the study of biological preparations. Equipped with a binocular optical element and a vertical tube for mounting a digital camera, this microscope offers unparalleled functionality.

Featuring an achromatic optical system and LED lighting, the Levenhuk 400T ensures optimal performance and precise results. With the option to employ the bright field method and utilize immersion oil for testing, researchers have access to a wide range of investigative techniques.

The microscope head is equipped with a 360° rotation function, making it ideal for collaborative work. The 30° inclined optical element guarantees comfort during prolonged microscope sessions. The 10x magnification eyepiece provides a wide field of view, while the achromatic optics deliver clear and sharp images of minute objects. The revolver cup accommodates lenses with magnifications of 4x, 10x, 40x, and 100x, enabling a magnification range of 40x to 1000x. Notably, the microscope supports the use of immersion oil with the 100x magnification lens, and the 40x and 100x lenses are equipped with protective spring-loaded frames.

A mechanical scale is integrated into the table, while fine and coarse focus adjustment knobs are conveniently positioned beside it. Directly beneath the stage, an Abbe bright field condenser with an iris diaphragm and a light filter holder enhance the microscope's versatility. The LED lighting system, along with the lower-placed condenser, ensures adjustable brightness and can be powered by the included rechargeable battery or an AC adapter. The microscope body is durably constructed from metal, ensuring longevity and stability.

Technical Specifications:

• Magnification: 40x - 1000x
• Body: Metal
• Swivel head: Yes, 360°
• Head inclination: 30°
• Pupil track adjustment: 48-75 mm
• Eyepieces: WF10x/18mm (2 pieces)
• Eyepiece diopter adjustment: Yes, ±5 diopters
• 4-socket objective revolver
• Achromatic lenses: 4x, 10x, 40x, 100x (oil immersion)
• Focusing mechanism: Coaxial coarse and fine movement, coaxial coarse and fine focusing (2 µm stroke) within a range of 12 mm
• Table: 115 x 110 mm with XY shift mechanism ranging 55 x 20 mm
• Abbe condenser, NA = 1.25, iris diaphragm, filter holder
• Backlight: LED, 1W, with collector
• Backlight brightness control: Yes
• Power supply: External DC power supply or 3 AA batteries (1300 mAh, 1.2 V)
• Battery life: Up to 4 hours

Included Components:

• Microscope
• Achromatic lenses with magnifications of 4x, 10x, 40x, and 100x (oil immersion)
• WF 10x/18mm eyepieces (2 pieces)
• Abbe condenser, NA = 1.25
• AA batteries (3 pieces)
• Charging cable
• C-mount adapter
• Vial of immersion oil
• Light filters: Blue, green, yellow
• Dust cover
• Manual and warranty card

Warranty:

The Levenhuk 400T comes with a 2-year store warranty, backed by the manufacturer's lifetime warranty, ensuring peace of mind and customer satisfaction.
