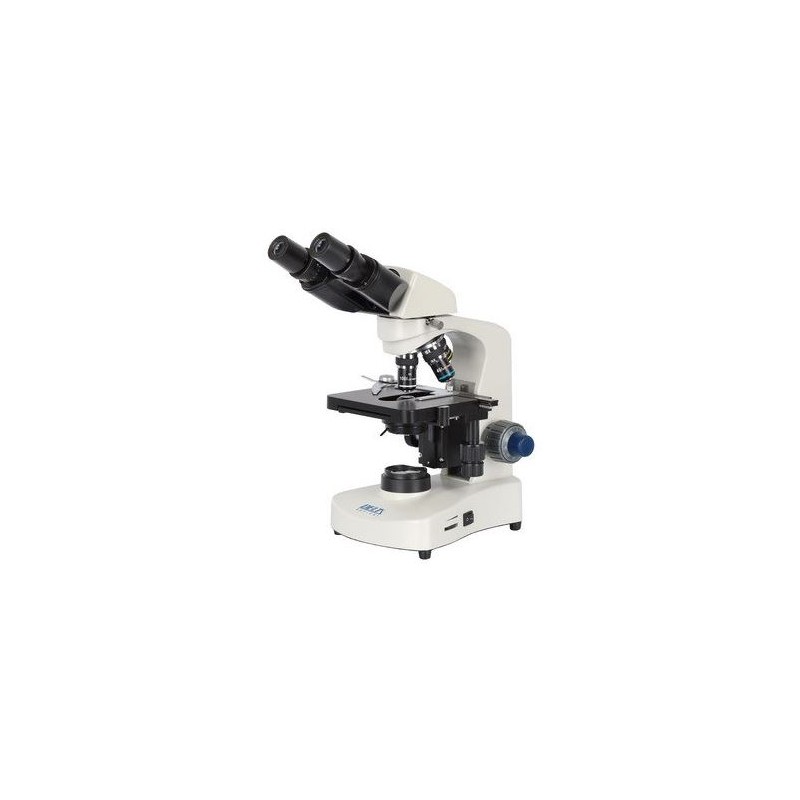

Delta Optical Genetic PRO Bino 40-1000x microscope

The Genetic Pro microscope is a highly adaptable and versatile tool designed for biological research. With standard magnification ranging from 40 to 1000x, and the option for an optional extension up to 1600x, it offers exceptional imaging capabilities. Built with reliable achromatic optics and a robust mechanical construction, this microscope is engineered for precision and durability.

The Genetic Pro microscope series provides a wide range of expansion options through optional accessories, allowing users to employ various observation techniques. These accessories include dark field observation and phase contrast, enabling researchers to explore different aspects of their samples.

Technical Specifications

• Tube length: 160 mm

• Siedentopf binocular head, 360° rotation, 30° inclination

• Eyepieces: WF10x/18 mm (2 pieces)

• Eyepiece adjustment range: 48 - 75 mm

• Quadruple nosepiece, retractable

• Objectives: Achromatic DIN 4x, 10x, 40x (spring-loaded), 100x (oil immersion, spring-loaded)

• Focus adjustment: Coarse (macrometric screw) and fine (micrometer, coaxial screw)

• Stage sensitivity and elementary plot micro screw: 0.004 mm, range 24 mm

• Condenser: Abbe bright field, NA 1.2, with iris diaphragm and filter holder

• Stage: Can accommodate 1 or 2 preparations, dimensions: 142 mm x 132 mm, XY movement range: 75 mm x 40 mm

• Illumination: 3W LED with adjustable intensity

• Operating temperature range: 0 - 40 °C

• Power supply: 230 V AC (mains)

• Maximum height of the microscope: 36 cm

• Weight: Approximately 4.5 kg

Included Equipment

• Eyepieces: WF10x/18mm, with eyecups (2 pieces)

• Objectives: Achromatic 4x, 10x, 40x, 100x (DIN)

• Green contrast filter

• Immersion oil

• Microscope cover (anti-dust)

Expand Your Possibilities with Optional Accessories

• 16x eyepieces, 23 mm (enabling magnification up to 1600x)

• 60x objective lens

• Dark field oil condenser

• Dark field dry condenser

• Straight polarization set

• Phase contrast kit

• Polarity analysis table

• Heating table

• Goose neck halogen lighting

• Helicon Focus photo processing software

• Calibration glass 1/100 mm

• Coverslips and coverslides

• Ready-made preparations

• Immersion oil

• Adapter for connecting a reflex camera (23 mm / T2)

• Microscope cameras for computer (1.3, 3, and 5 Mpix / USB)

• Aluminum case for transport and storage

Warranty

The Genetic Pro microscope comes with a comprehensive 2-year warranty, ensuring peace of mind and support for your research endeavors.
