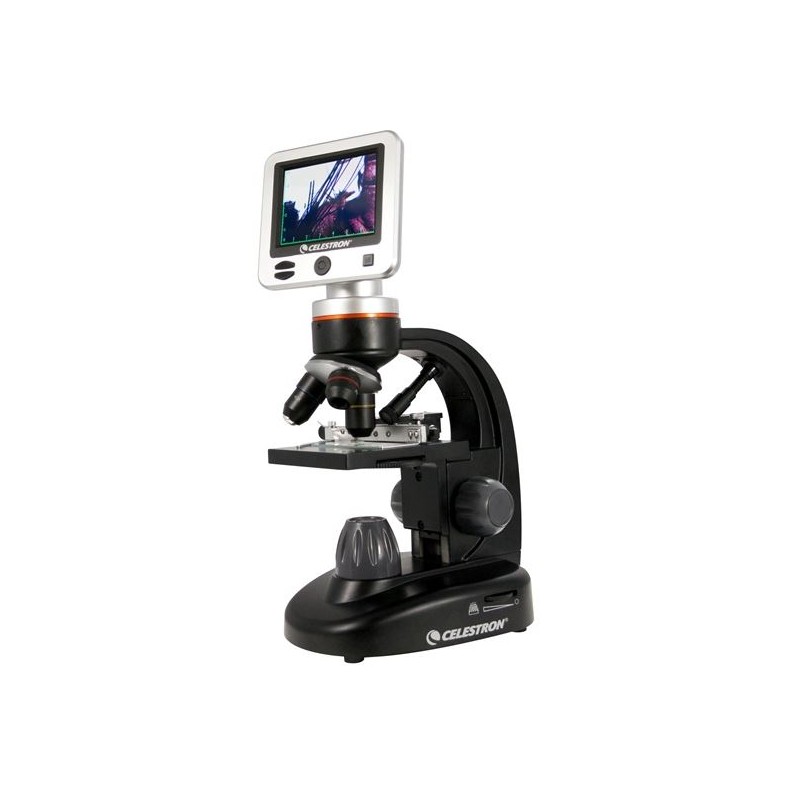

Celestron LCD Digital Microscope II (SKU: 44341)

The Celestron LCD Digital II is an advanced digital microscope that offers impressive features at an affordable price. With a built-in matrix boasting a resolution of 5 million pixels, achromatic glasses, a mechanical cross table, and a 3.5-inch color liquid crystal display, this microscope is a valuable tool for various applications.

The microscope provides magnifications ranging from 40x to 1600x, including digital zoom functionality, making it ideal for observing cell preparations similar to traditional microscopes. The 180° rotatable LCD display allows for easy sharing of images with others, while the TV output enables connection to a television or projector for larger audiences.

The Celestron LCD Digital II is an excellent choice for ambitious hobbyists, as well as educational institutions, laboratories, and research organizations in need of a reliable digital microscope.

Key Features:

Professional biological digital microscope

3.5-inch TFT color LCD with software

Built-in 5 MPix camera for high-resolution image capture

Camera enables video recording capabilities

Mechanical stage for precise focus adjustments

XY cross table for enhanced accuracy

Head with LCD monitor rotates within a 180° range

Revolver with three lenses offering 4x, 10x, and 40x magnification

Camera sensor functions as a 10x eyepiece, providing optical zooms of 40x, 100x, and 400x respectively

4x digital zoom allows for maximum magnification of 1600x

Included measuring grid for indicating physical size of preparations

SD card included, capable of storing up to 620 high-resolution photos

TV output allows for displaying microscope images on a large screen

Technical Specifications:

• Dimensions: 170 x 140 x 330 mm
• Weight: 1600 g
• Mechanical cross table with metal clamps
• Stage dimensions: 88 x 88 mm
• Built-in camera: 5 megapixels, CMOS, equivalent to 10x magnification
• Optical magnification: 40x, 100x, 400x
• 1-4x digital zoom (up to 1600x)
• LCD display: 320 x 240 resolution, 300:1 contrast ratio, 262K colors
• Single, smooth focusing knob
• Lenses: achromatic, 4x, 10x, 40x
• 1 GB SD card (microscope supports up to 32 GB cards)
• USB cable: 2.9, 1.5 m long
• Filter wheel: 6 positions, RGB filters (red, green, blue), and diaphragm (hole) sizes of 1 mm, 3 mm, and 6 mm
• Adjustable upper and lower LED backlighting (DC 5 V, 2 to 3 W)
• Condenser: NA 0.65
• Power supply: adapters for 100 to 240 V, 50/60 Hz

Included Accessories:

• 1 GB SD card
• Dust cover
• Sturdy transport case with shoulder strap
• 5 pre-made biological preparations
• 4 different mains adapters

Warranty:

The Celestron LCD Digital II comes with a 2-year warranty.
