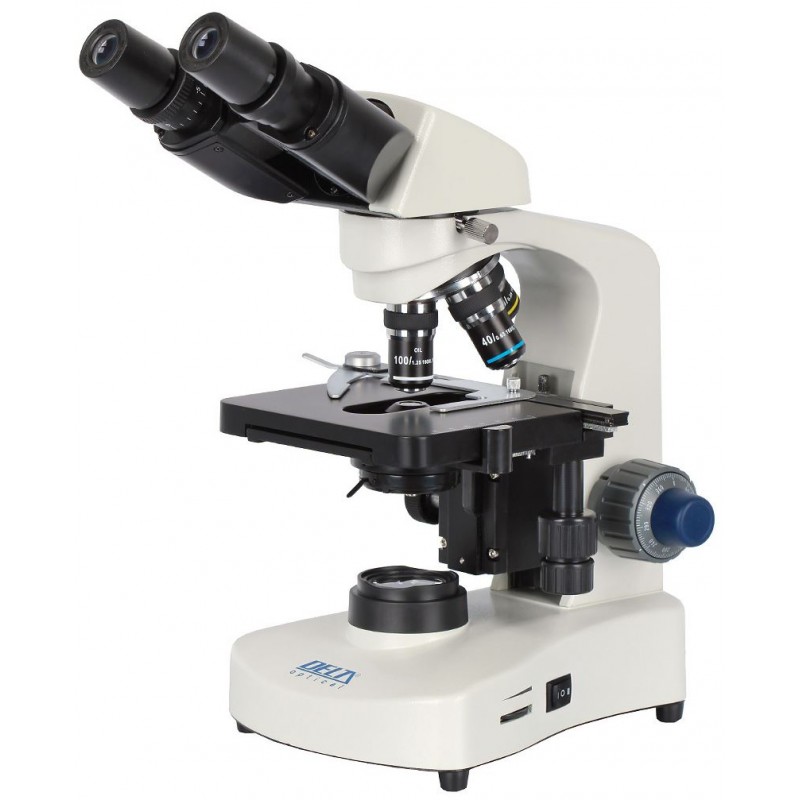

Delta Optical Genetic PRO Bino 40-1000x Microscope with Internal Battery (SKU: DO-3403)
The Genetic Pro microscope by Delta Optical is an adaptable biological tool, providing extensive magnification range from 40x to 1000x which can be expanded further up to 1600x with additional accessories. It features trustworthy achromatic optics and is designed with durable mechanical construction, ensuring longevity and sustainable performance. A unique element in its design is the internal battery, which is intelligently incorporated in the base for field operations, eliminating the need for a power source. It's a comprehensive research tool, ideal for researchers, students or anyone keen on exploring microscopic organisms in various scenarios. Its SKU is DO-3403.
321 $ net price (non-EU countries)
100% secure payments
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Olesia Ushakova
Product Manager /
+48695005004 +48695005004 +48695005004
[email protected]
Description
The Genetic Pro microscope is a highly versatile biological instrument that offers a wide range of magnification options, ranging from 40x to 1000x, with the possibility of extending it up to 1600x using optional accessories. This microscope is equipped with reliable achromatic optics and boasts a sturdy mechanical construction. One notable feature of the Genetic Pro model is its built-in battery located in the base, allowing for field operation even in the absence of access to mains power.
The Genetic Pro microscope series provides users with extensive expansion options through the availability of optional accessories. These accessories enable the utilization of various observation techniques, including dark field observation and phase contrast, enhancing the versatility and capabilities of the microscope.
Technical Specifications:
- Tube Length: 160 mm
- Siedentopf head, binocular type, with 360° rotation and a 30° inclination
- Eyepieces: WF10x with an 18 mm field of view (2 pieces)
- Eyepiece adjustment range: 48 - 75 mm
- Quadruple nosepiece, retractable
- Objectives: Achromatic DIN 4x, 10x, 40x (spring-loaded), 100x (immersion, oil-immersed)
- Focus adjustment: Coarse adjustment (macrometric screw) and fine adjustment (micrometer, coaxial screw)
- Sensitivity and elementary plot micro screw: 0.004 mm, with a range of 24 mm
- Condenser: Abbe bright field, NA 1.2, equipped with an iris diaphragm and filter holder
- Stage: Capable of holding 1 or 2 specimens, with table dimensions of 142 mm x 132 mm and an XY movement range of 75 mm x 40 mm
- Illumination: 3W LED with adjustable intensity
- Operating temperature range: 0 - 40 °C
- Power supply: 230 V AC (mains)
- Maximum height of the microscope: 36 cm
- Weight: 4860 g
Included Equipment:
- WF10x eyepieces with an 18mm field of view (2 pieces)
- Achromatic DIN 4x, 10x, 40x, 100x lenses
- Green contrast filter
- Immersion oil
- Microscope cover (anti-dust)
Recommended Optional Accessories:
- 16x eyepieces with a 23mm field of view (for magnification up to 1600x)
- 60x objective lens
- Dark field oil condenser
- Dry dark field condenser
- Straight polarization set
- Phase contrast kit
- Polarity analysis table
- Heating table
- Goose neck halogen lighting
- Helicon Focus photo processing software
- Calibration glass with 1/100 mm precision
- Coverslips and coverslides
- Pre-made specimens
- Immersion oil
- Adapter for connecting a reflex camera (23 mm / T2)
- USB microscope cameras with resolutions of 1.3, 3, and 5 megapixels
- Aluminum case for transport and storage
Warranty:
The Genetic Pro microscope comes with a 2-year warranty.
