Delta Optical Genetic PRO Trino 40-1000x Microscope
290.52 £ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description

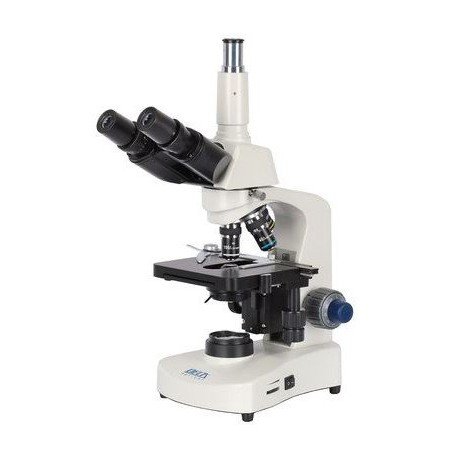

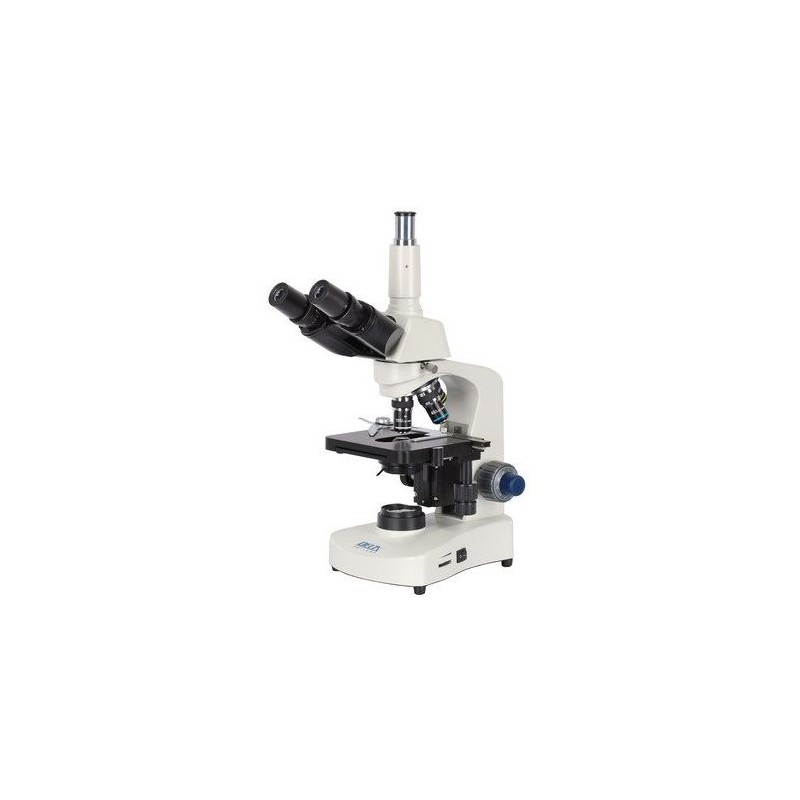

Delta Optical Genetic PRO Trino 40-1600x Advanced Biological Microscope
The Delta Optical Genetic PRO Trino 40-1600x Advanced Biological Microscope is a highly versatile and reliable tool designed to meet a broad range of observation needs. Ideal for researchers and scientists, this microscope offers standard magnification from 40x to 1000x, with the possibility to extend up to 1600x using additional accessories, providing exceptional flexibility and precision.
Built with robust mechanical construction and achromatic optics, the Genetic Pro series ensures stable and precise performance, making it a dependable choice for detailed biological investigations.
Features and Expandability
This microscope series stands out with its ability to expand beyond traditional functionality. It supports various observation techniques through optional accessories, including:
- Dark field observation
- Phase contrast
These features allow for in-depth exploration of sample aspects, catering to the needs of advanced biological research.
Trino Version for Enhanced Documentation
The Trino version of the Genetic Pro series is particularly notable for its third optical track, which facilitates the attachment of cameras or camera equipment, streamlining the process of image capture and documentation.
Technical Specifications:
- Tube length: 160 mm
- Siedentopf head: 360° rotation and 30° inclination
- Trinocular head: Included in the Trino version
- Eyepieces: WF10x/18 mm (2 pieces)
- Eyepiece adjustment range: 48 - 75 mm
- Quadruple nosepiece: With retractable lens
- Objectives: Achromatic DIN 4x, 10x, 40x (spring-loaded), 100x (immersion, spring-loaded)
- Focus adjustment: Coarse (macrometric screw) and fine (micrometer, coaxial screw)
- Stage sensitivity and micro screw: 0.004 mm, range 24 mm
- Condenser: Abbe bright field, NA 1.2, with iris diaphragm and filter holder
- Stage dimensions: 142 mm x 132 mm, XY movement range: 75 mm x 40 mm
- Illumination: 3W LED with adjustable intensity
- Operating temperature range: 0 - 40 °C
- Power supply: 230 V AC (mains)
- Weight: Approximately 4.5 kg
Included Accessories:
- WF 10x/18mm eyepieces (2 pieces)
- Achromatic DIN 4x, 10x, 40x, and 100x lenses
- Green contrast filter
- Immersion oil
- Microscope cover (anti-dust)
Optional Accessories for Enhanced Capabilities:
- 16x eyepieces with 23 mm field of view (for magnification up to 1600x)
- 60x lens
- Dark field oil condenser
- Dry dark field condenser
- Straight polarization set
- Phase contrast kit
- Polarity analysis table
- Heating table
- Goose neck halogen lighting
- Helicon Focus photo processing software
- Calibration glass 1/100 mm
- Coverslips and coverslides
- Ready-made preparations
- Additional immersion oil
- Adapter for connecting a reflex camera (23 mm/T2)
- Microscope cameras (1.3, 3, and 5 megapixels/USB) for computer imaging
- Aluminum case for transportation and storage
The Genetic Pro microscope is backed by a comprehensive 2-year warranty, ensuring customer confidence in its quality and performance.
