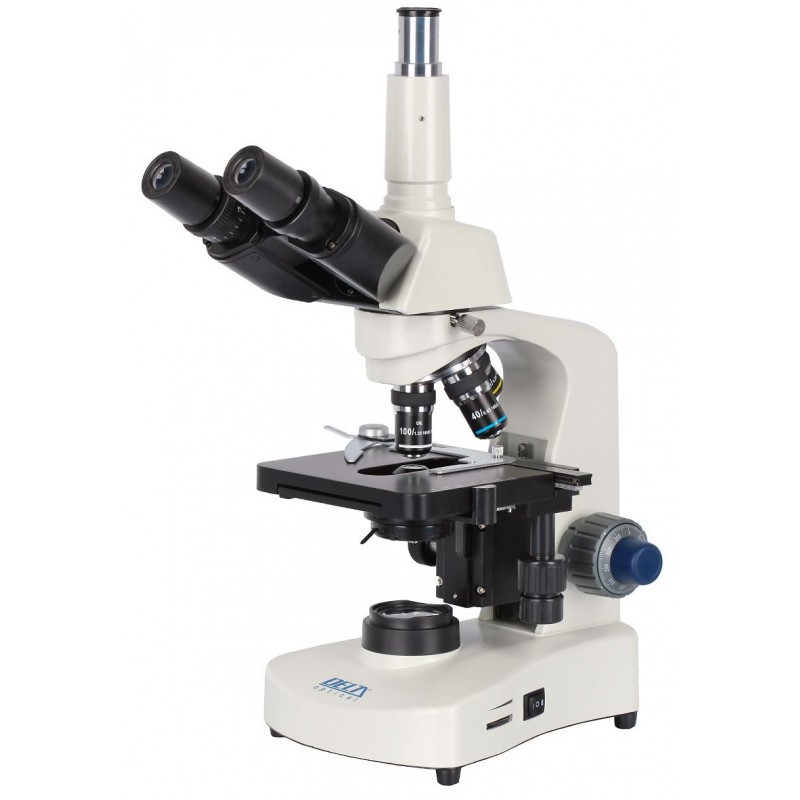

Delta Optical Genetic PRO Trino 40-1000x microscope + battery

The Genetic Pro Microscope is a highly adaptable instrument designed for various biological applications. With a standard magnification range of 40 to 1000x, and the option to extend it up to 1600x with additional accessories, this microscope offers exceptional flexibility. Its reliable achromatic optics and sturdy mechanical construction ensure precise and accurate observations.

One of the outstanding features of the Genetic Pro microscope series is the extensive range of expansion options available through optional accessories. These accessories enable the use of diverse observation techniques, including dark field observation and phase contrast, expanding the microscope's capabilities to suit different research needs.

The Trino version of the Genetic Pro microscope is equipped with a third optical track, allowing users to conveniently attach a camera or camera system on top of the microscope. This feature facilitates easy documentation and imaging during experiments and research.

Another notable advantage of the Genetic Pro model is the inclusion of a built-in battery in the microscope's base. This battery provides the ability to operate the microscope in the field, even without access to a mains power supply. This portability ensures that researchers can perform on-site investigations without limitations.

Technical Specifications:

• Tube length: 160 mm
• Siedentopf head: Trinocular, 360° rotation, 30° inclination
• Eyepieces: WF10x/18 mm (2 pieces)
• Eyepiece adjustment range: 48 - 75 mm
• Quadruple nosepiece with retractable lens
• Objectives: Achromatic DIN 4x, 10x, 40x (spring-loaded), 100x (immersion, spring-loaded)
• Focus adjustment: Coarse movement (macrometric screw) and fine movement (micrometer, coaxial screw)
• Stage sensitivity and elementary plot micro screw: 0.004 mm, range 24 mm
• Condenser: Abbe bright field, NA 1.2, with iris diaphragm and filter holder
• Stage: Fixation for 1 or 2 specimens, stage dimensions: 142 mm x 132 mm, XY movement range: 75 mm x 40 mm
• Illumination: 3 W LED with adjustable intensity
• Operating temperature range: 0 - 40 °C
• Power supply: 230 V AC (mains)
• Built-in rechargeable battery for field work
• Microscope height: Approximately 44.5 cm
• Weight: Approximately 4.5 kg

Included Equipment:

• Eyepieces: WF10x/18 mm, eyepiece fixtures: 23 mm (2 pieces)
• Achromatic objectives: 4x, 10x, 40x, 100x (DIN)
• Green contrast filter
• Immersion oil
• Microscope cover (anti-dust)

Recommended Optional Accessories:

• 16x eyepieces (23 mm) for increased magnification up to 1600x
• 60x objective lens
• Dark field oil condenser
• Dry dark field condenser
• Straight polarization set
• Phase contrast kit
• Polarity analysis table
• Heating table
• Goose neck halogen lighting
• Helicon Focus photo processing software
• Calibration glass 1/100 mm
• Coverslips and coverslides
• Ready-made specimens
• Additional immersion oil
• Adapter for connecting a reflex camera (23 mm / T2)
• Microscope cameras (1.3, 3, and 5 Mpix / USB) for computer integration
• Aluminum case for transport and storage

Warranty:

The Genetic Pro Microscope comes with a comprehensive 2-year warranty, ensuring peace of mind and customer satisfaction.

With its adaptability, robust construction, and extensive range of accessories, the Genetic Pro Microscope is a powerful tool for biological research, providing researchers with the precision and versatility they need to explore the microscopic world.
