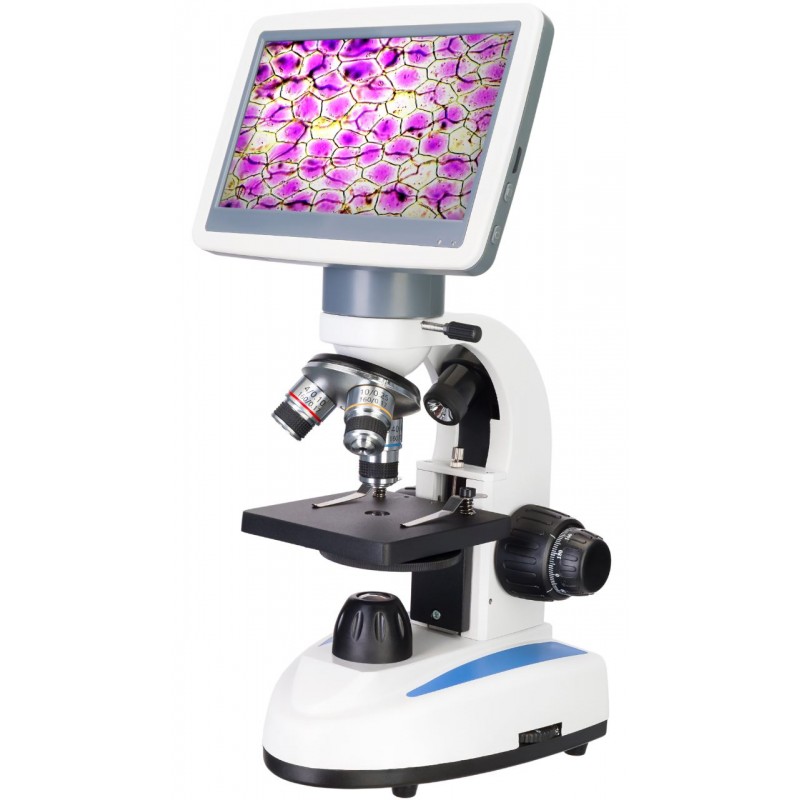

Levenhuk D85L LCD Digital Microscope (SKU: 78902)

The Levenhuk D85L LCD microscope is an advanced instrument designed to facilitate the examination of specimens with varying degrees of transparency. Offering a magnification range of 40x to 1600x, this microscope provides exceptional clarity and detail. One of its standout features is the built-in 2Mpx camera, allowing users to capture photos and record videos for research purposes, with data conveniently stored on a memory card. Additionally, the microscope boasts a large 7" LCD screen, perfect for conducting detailed and comprehensive examinations.

Equipped with a reliable optical system, the Levenhuk D85L LCD microscope features achromatic objective lenses with different magnification powers. This system enables an overall optical magnification range of 40x to 400x, with the option of digital magnification up to 1600x. The real-time high-resolution image is displayed on the large LCD screen, allowing for the detection of even the finest micro-structures. The control buttons, thoughtfully placed on the side panel and backside, contribute to the device's sleek and minimalistic design. Both coarse and fine adjustments are easily achievable.

To ensure secure positioning of specimens, the microscope provides specimen holders and a diaphragm disk on the stage. The illumination system employs dual LEDs on both sides of the stage, with adjustable brightness functionality. Users have the option of powering the illumination using either AC power or batteries, providing flexibility and convenience.

Crafted with a durable metal body and precision glass optics, the Levenhuk D85L LCD microscope guarantees longevity and reliability in its performance.

Key Features:

• Ideal for visual observations, photo capturing, and video recording.
• Offers optical magnification range of 40x to 400x, and digital magnification up to 1600x.
• Features a large 7" diagonal LCD screen for enhanced visibility.
• Equipped with achromatic optics and dual adjustable illumination.
• Specifically designed for bright field specimen observation.

The Levenhuk D85L LCD microscope comes with a comprehensive kit, including the microscope itself with a 2Mpx digital camera and LCD screen, achromatic objective lenses (4x, 10x, and 40x), an N.A. 0.65 condenser with a diaphragm disc, a power cord, a 16GB SD memory card, an adapter and power cord for the camera, a dust cover, and a user manual with a warranty card.

Specifications:

• Product ID: 78902
• Brand: Levenhuk, Inc., USA
• Warranty: Lifetime
• Package size (LxWxH): 15x13x10.6 inches
• Shipping Weight: 7.1 lbs
• Type: Biological, Light/Optical, Digital
• Head: Digital screen/PC monitor
• Optics material: Optical glass
• Nozzle: 7" rotatable color LCD screen
• Magnification: 40x - 1600x
• Objectives: Achromatic (4x, 10x, 40xs with spring)
• Revolving nosepiece for 3 objectives
• Stage dimensions: 90x90 mm
• Stage moving range: 70/30 mm
• Stage features: Clips for securing specimens
• Condenser: N.A. 0.65
• Diaphragm: Diaphragm disc with 6 apertures
• Focus: Coaxial, with coarse (15mm) and fine (0.002mm) adjustments
• Body: Metal
• Illumination: LED
• Brightness adjustment: Yes
• Power supply: 3 AA batteries (not included) or 110–240V via AC adapter (included)
• Power supply (camera): Batteries/built-in battery (included)
• Light source type: Collector with 0.2W LED
• Megapixels: 2.0
• Sensor element: 1/2.8"
• Pixel size: 2.9x2.9 μm
• Sensitivity: 2.0 V/lux-sec@550nm
• Video recording: Yes
• Frame rate: 30 frames per second
• Usage location: Microscope stand
• Image format: *.jpg
• Spectral range: 380–700 nm
• White balance: Automatic/manual
• Exposure control: Automatic/manual
• Software/drivers: Included
• Output: SD card slot, power cable slot
• Camera power supply: 5V, 1A via a network adapter
• Ability to connect additional equipment: Does not support external screen or PC connection
• User level: Suitable for beginners and experienced users
• Assembly and installation difficulty level: Easy
• Video format: *.mp4
• Application: School/educational
• Illumination location: Dual
• Research method: Bright field
• Pouch/case/bag: Dust cover included
• Maximum resolution: 1920x1080 pixels

With its impressive features and comprehensive kit, the Levenhuk D85L LCD microscope is an exceptional tool suitable for a wide range of users, from beginners to experienced researchers. Its ease of use, high-resolution imaging capabilities, and ability to capture both photos and videos make it an invaluable asset in various educational and research settings.
