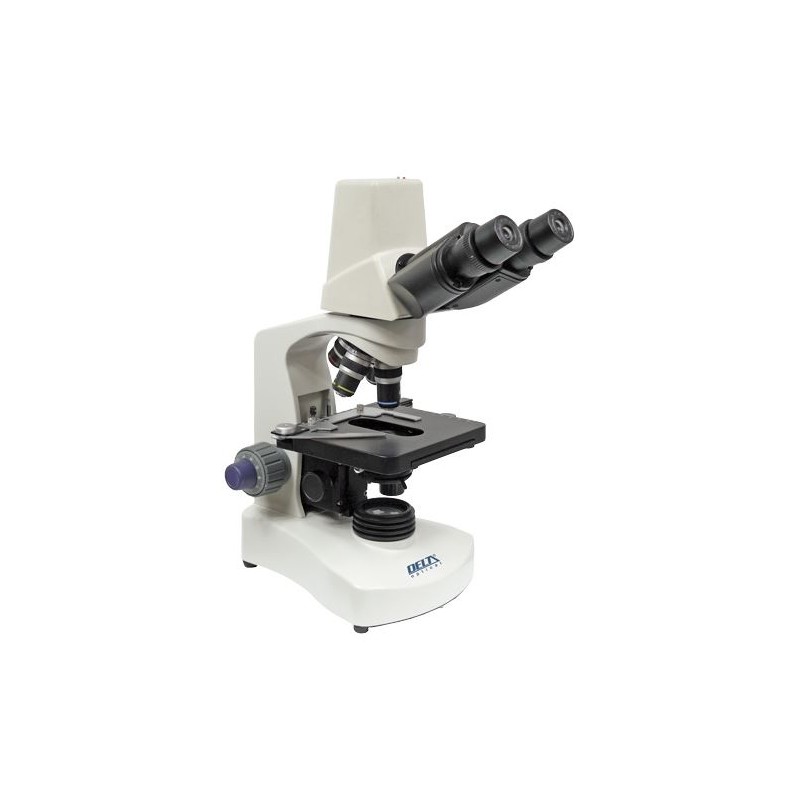

Delta Optical Genetic PRO Bino 40-1000x Microscope with 3 Mpix USB Camera (SKU: DO-3410)

The Genetic Pro microscope, equipped with a built-in camera, is a versatile biological instrument that offers a wide range of magnification options. Its standard magnification ranges from 40x to 1000x, with the potential for optional expansion up to 1600x. The microscope boasts reliable and high-quality achromatic optics, along with a sturdy mechanical construction. With its built-in USB camera, users can capture images and record video sequences of slides with a resolution of 3 MPix.

The Genetic Pro series of microscopes is designed for adaptability and can be enhanced with optional accessories to enable various observation techniques, including dark field and phase contrast microscopy.

Here are the technical specifications of the Genetic Pro microscope:

• Tube length: 160 mm
• Siedentopf binocular head with a built-in camera that is 360° rotatable and tilts at 30°
• Eyepieces: WF10x/18 mm (2 pieces)
• Adjustable eyepiece distance range: 48 - 75 mm
• Quadruple nosepiece with retractable objectives
• Objectives: Achromatic DIN 4x, 10x, 40x (spring-loaded), 100x (immersion, spring-loaded)
• Coarse and fine focus adjustment (macrometric and micrometric screws)
• Sensitivity and graduation micro-screw: 0.004 mm, with a range of 24 mm
• Bright field Abbe condenser with iris diaphragm, filter socket, and NA 1.2
• Stage: Can hold 1 or 2 specimens, with dimensions of 142 mm x 132 mm and an XY range of motion of 75 mm x 40 mm
• Lighting: 3W LEDs with adjustable intensity
• Operating temperature range: 0 - 40 °C
• Power supply: 230 V AC (mains)
• Maximum height of the microscope: 38 cm
• Weight: 4795 g

Here are the technical specifications of the built-in USB camera:

• Matrix: Aptina (C)
• Physical resolution: 2048X1536 (3 MPix)
• Sensor diagonal: 5.73 x 4.30 mm
• Pixel size: 2.8 x 2.8 μm
• Sensitivity: 18.8 ke-/lus
• Dynamics: 73 dB
• Signal-to-noise ratio: 40 dB
• Frames per second (FPS): 30 @ 2048x1536, 30 @ 1024x768
• Binning: 1x1
• Exposure time: 0.1 - 1000 ms
• Spectral range: 380 - 650 nm (IR filter)
• White balance: ROI/manual
• Recorded files: Photos (JPG, JP2, PNG, WEBP, TFT, TIF, DNG) / Movies (MP4, WMV, AVI)
• Power supply: 5 VDC / 500 mA (from USB socket)
• Connector: USB 2.0 Plug & Play

The included software provides the following features:

• Language version: Polish
• Saving video sequences: Yes
• Saving images/photos: Yes
• Measurement capabilities: Distances, angles, polygon areas, circle radius
• Calibration: Possible after equipping the microscope with a 1/100 mm calibration slide
• Minimum hardware requirements: Microsoft Windows XP/Vista/7/8/10 (32 & 64 bit), OS X (Mac OS X), Linux, Intel Core2 2.8 GHz or better processor, 2 GB RAM or more, USB 2.0 port or greater, minimum screen size of 17"

The equipment included with the microscope consists of:

• WF 10x/18mm eyepieces, frame φ = 23 mm (2 pieces)
• Achromatic lenses (DIN) in 4x, 10x, 40x, and 100x magnifications
• Green contrast filter
• Immersion oil
• Microscope cover (anti-dust)
• Software CD

Additionally, there are several expansion options available for the Genetic Pro microscope, which are recommended accessories. These options include:

• 16x 23 mm eyepieces (for magnification up to 1600x)
• 60x lens
• Dark field oil condenser
• Dry condenser for dark field
• Set for simple polarization
• Phase contrast kit
• Table for polarization analysis
• Heating table
• Halogen gooseneck lamp
• Helicon Focus image processing software
• 1/100 mm calibration glass
• Slides and coverslips
• Ready-made preparations
• Immersion oil
• Adapter for connecting an SLR camera (23 mm / T2)

The Genetic Pro microscope comes with a 2-year guarantee, ensuring its reliability and quality.
