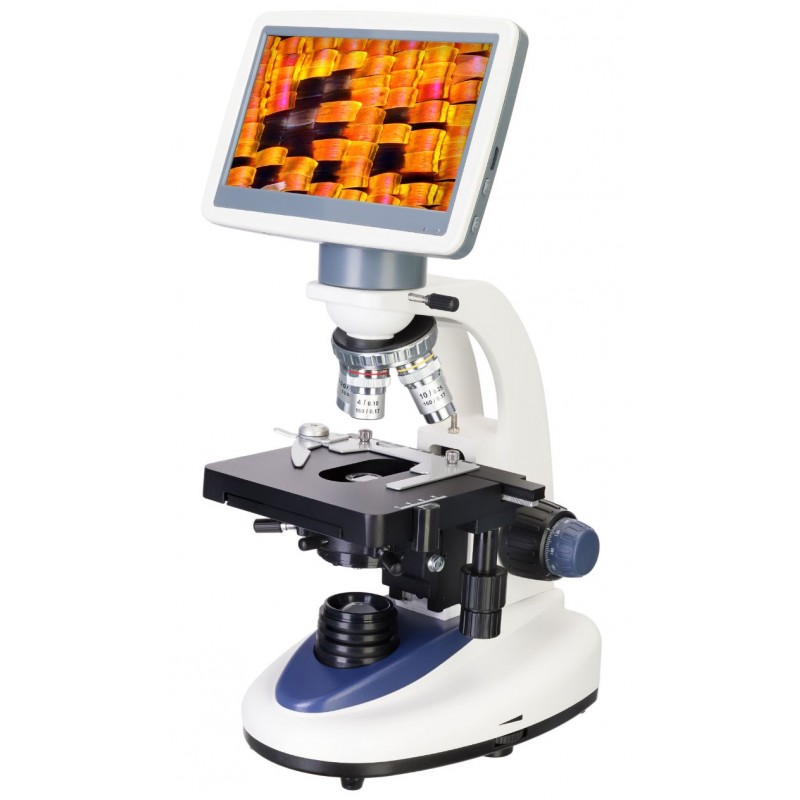

Levenhuk D95L LCD Digital Microscope (SKU: 78903)

The Levenhuk D95L LCD is a cutting-edge digital microscope designed specifically for studying transparent samples. This remarkable microscope is equipped with a digital camera, allowing users to engage in visual observations, as well as capture high-quality photos and videos. What sets the D95L LCD apart from traditional microscopes is its 7-inch LCD screen, replacing the standard head. This innovative feature greatly enhances user comfort during extended observation sessions. Whether you're an amateur enthusiast or a professional researcher, the Levenhuk D95L LCD is tailored to meet your needs.

One of the standout features of the D95L LCD is its achromatic lenses, which deliver crystal-clear and sharp images across the entire field of view. With a 100x oil immersion objective, you can achieve unparalleled magnification. The microscope offers two types of magnification options for observations: optical magnification ranging from 40x to 1000x and digital magnification that can reach an astounding 2000x. Additionally, the microscope provides both coarse and fine focusing modes, giving you precise control over focus adjustments.

The stage of the Levenhuk D95L LCD boasts a mechanical scale for accurate measurements. Underneath the stage, you'll find an Abbe condenser with an iris diaphragm and a filter holder. The microscope is equipped with dimmable lower LED illumination, which requires an AC power supply. This lighting setup ensures optimal visibility and clarity for your observations.

The control buttons for manipulating digital functions are conveniently located on the side panel and the back of the LCD screen. The microscope body is constructed with durable metal, while the optics are crafted from high-quality glass, ensuring both longevity and exceptional performance.

Key Features:

• 2-megapixel digital camera with a 7-inch LCD screen
• Optical magnification ranging from 40x to 1000x and digital magnification up to 2000x
• Achromatic objectives and adjustable lower illumination
• Supports light field observations and oil immersion technique
• AC power supply

The Levenhuk D95L LCD comes with an extensive kit, including:

• Microscope with a 2-megapixel digital camera and an LCD screen
• Achromatic objective lenses: 4x, 10x, 40x, and 100x (oil immersion)
• Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
• Bottle of immersion oil
• Filters: blue, green, yellow
• Microscope fuse
• Power cord
• 16GB SD memory card
• Adapter and power cord for the camera
• Dust cover
• User manual and warranty card

Specifications:

• Product ID: 78903
• Brand: Levenhuk, Inc., USA
• Warranty: Lifetime
• Package size (LxWxH): 24.2x13.6x9.8 inches
• Shipping Weight: 11 lbs
• Type: Biological, light/optical, digital
• Head: Digital screen/PC monitor
• Optics material: Optical glass
• Nozzle: 7-inch rotatable color LCD screen
• Magnification: 40 – 2000x
• Objectives: Achromatic 4x, 10x, 40x (s), 100x (s) oil immersion
• Revolving nosepiece for 4 objectives
• Stage dimensions: 110x126 mm
• Stage moving range: 70/30 mm
• Stage features: Mechanical double-layer
• Condenser: Abbe N.A. 1.25 with an iris diaphragm and filter holder
• Diaphragm: Iris
• Focus: Coaxial, coarse (15mm), and fine (0.002mm)
• Body: Metal
• Illumination: LED
• Brightness adjustment: ✓
• Power supply: 100–240V
• Light source type: Collector with 1W LED
• Light filters: Blue, green, yellow
• Megapixels: 2.0
• Sensor element: 1/2.8"
• Pixel size: 2.9x2.9 μm
• Sensitivity: 2.0 V/lux-sec@550nm
• Video recording: Yes
• Frame rate: 30 frames per second
• Usage location: Microscope stand
• Image format: *.jpg
• Spectral range: 380–700 nm
• White balance: Automatic/manual
• Exposure control: Automatic/manual
• Software and drivers: Included
• Output: SD card slot, power cable slot
• Camera power supply: 5V, 1A via AC adapter (included)
• Ability to connect additional equipment: Does not support connection to an external screen or a PC
• User level: Beginners, experienced users
• Assembly and installation difficulty level: Easy
• Video format: *.mp4
• Application: School/educational, laboratory/medical
• Illumination location: Lower
• Research method: Bright field
• Pouch/case/bag included: Dust cover
• Maximum resolution: 1920x1080

The Levenhuk D95L LCD offers an unrivaled digital microscopy experience, combining advanced features, user-friendly design, and exceptional performance. Whether you're conducting research or exploring the microscopic world out of curiosity, this microscope is sure to exceed your expectations.
