Levenhuk 870T Biological Microscope (SKU: 24613)

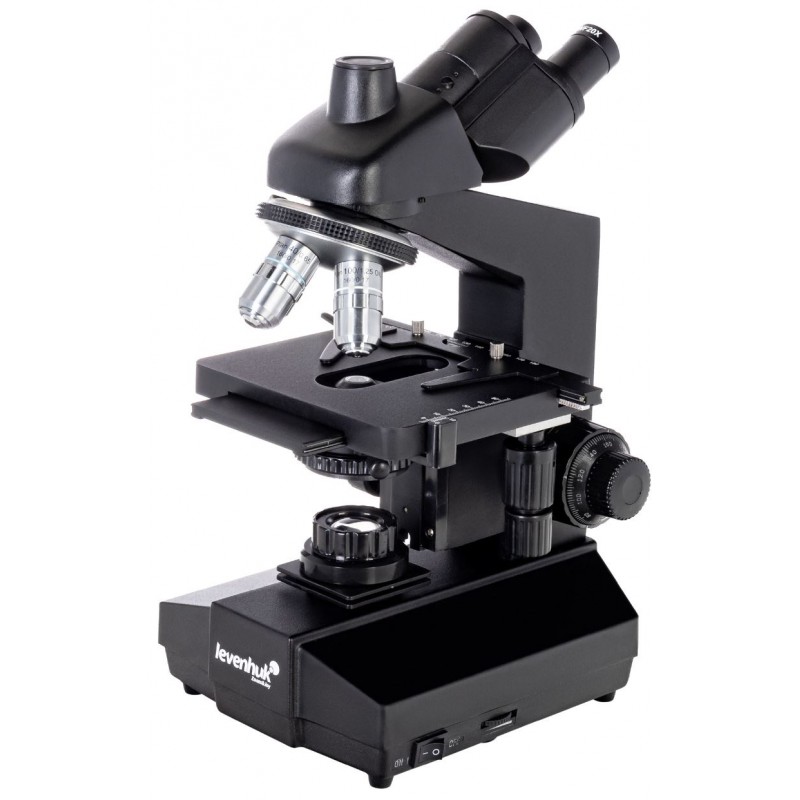

The Levenhuk 870T Biological Microscope is a top-tier three-field microscope that is perfect for light and dark field observations. It has gained widespread usage in multiple medical laboratories, becoming an invaluable tool for research-oriented tasks in dermatology, cytology, hematology, and more. A standout feature of this microscope is its compatibility with a digital camera, enabling it to transform into a digital microscope that amplifies its usage range. It also comes with top-grade planachromatic lenses as standard. Therefore, with the Levenhuk 870T, you are ensured to receive exceptional image clarity, delivering significantly remarkable results. Dive into a world of microscopic marvels with this impeccable instrument.
774.90 $
Tax included

630 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Levenhuk 870T microscope is a highly dependable three-field microscope designed for both light and dark field observations. Widely used in various medical laboratories, this microscope is particularly valuable for research in dermatology, cytology, hematology, and other related fields. Its unique feature includes the ability to transform into a digital microscope by attaching a digital camera to the eyepiece. Equipped with high-quality planachromatic lenses as standard, the Levenhuk 870T ensures exceptional image clarity.

The microscope head is inclined at a 30-degree angle and offers a 360-degree rotation. With four planachromatic lenses mounted in the head turret, the Koehler lighting system, and adjustable aperture diaphragm and field, this microscope is perfect for professional-level observations.

The table, measuring 140 x 155 mm, can be moved in two axes, providing flexibility in positioning the samples. Focus adjustment is achieved by using the fine and coarse adjustment knobs to raise or lower the table, altering the distance between the sample and the objective lens. Both adjustment systems operate smoothly, with a rough adjustment range of 25 mm and a fine adjustment range of 0.002 mm.

The Levenhuk 870T features a 6 V / 20 W halogen lamp as the lighting source, mounted on the microscope's base. The brightness of the lamp can be easily adjusted to suit the user's requirements.

Dark Field Capability

The Levenhuk 870T binocular microscope is equipped with a dark field condenser, which can be utilized when the Abbe condenser is raised to its maximum height. The dark field microscope is particularly suitable for blood tests and other biological samples, offering higher contrast compared to bright field observations. By rotating the lighting ring to the right, users can switch to the dark field mode.

Technical Specifications

• Magnification: 40x - 2000x (40x, 80x, 100x, 200x, 400x, 800x, 1000x, 2000x)

• Eyepieces: WF PLAN 10x / 23 mm - 2 pieces, WF 20x / 23 mm - 2 pieces

• Objectives: PLAN 4x / 10x / 40x / 100x (oil) - planachromatic

• Head: Triple-barrel (binocular with a third optical track for camera or DSLR camera, with C-mount adapter)

• Interpupillary Distance: 55 - 75 mm

• Lighting: 6 V / 20 W halogen lamp, lower

• Power Supply: 230 V

• Weight: 6.3 kg

Included Accessories

• Integrated Abbe condenser system, 1.25 NA, with a high-class iris diaphragm and dark field condenser

• Stage measuring 140x155 mm with XY movable cross table in the range of 70 mm - 50 mm

• Adjustable focus mechanism with a table, macro, and micro screws (1:10, 25 mm)

• Integrated lighting supply

• Illuminator for lower lighting

• Smooth regulation of lighting intensity

• 6 V / 20 W halogen lamp

Warranty

The Levenhuk 870T microscope comes with a lifetime manufacturer's warranty, as well as a 2-year shop warranty, ensuring the highest level of customer satisfaction and peace of mind.
