Antlia LRGB-V Pro 36 mm unmounted
2281.59 kn net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description

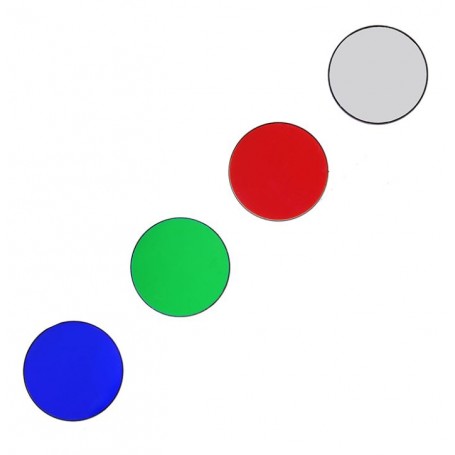

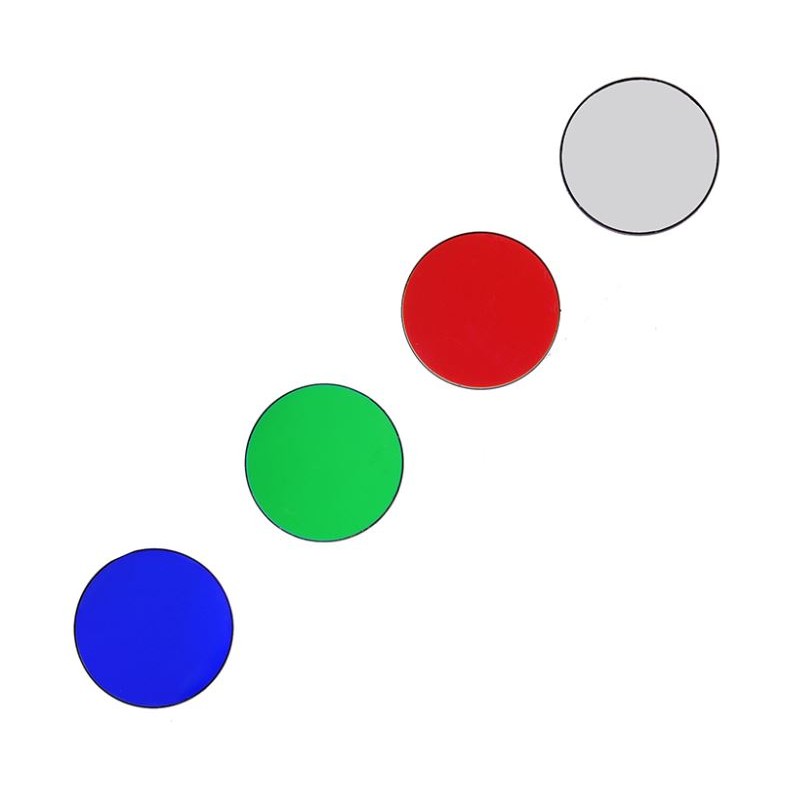

Antlia LRGB-V Pro 36 mm Unmounted Astrophotography Filter Set
The Antlia LRGB-V Pro 36 mm Unmounted Filter Set is meticulously engineered for professional astrophotography, offering unparalleled performance with both monochrome cameras using CCD and CMOS sensors. This comprehensive filter set is designed to enhance your astrophotography experience, delivering exceptional image quality and versatility.
Product Highlights
Crafted with precision, each filter in the set uses a carefully chosen 2 mm substrate, ensuring both robust mechanical strength and full parfocality. These filters excel in transmitting crucial astrophotographic spectral lines, such as Hα, S II, and O III, with impressive efficiency. The R filter boasts a 95% permeability for Hα and S II lines, while the B and G filters double the recording efficiency for the O III line.
Beyond optical performance, the filters are adept at minimizing light pollution. By separating G and R channels, they effectively block sodium lamp emissions, allowing for vibrant captures even near urban environments. Multi-layer anti-reflective coatings further enhance image clarity by reducing glare and halo effects.
Note: These filters are not suitable for visual observations.
Key Features
- Professional Astrophotographic Filters: Designed with equal weights for the R, G, and B channels, perfect for use with CMOS and CCD sensors.
- Advanced Anti-Reflective Coating: Reduces secondary glare and halo effect, improving image quality.
- High Transmission for Key Spectral Bands: R filter achieves high permeability for Hα and S II bands; B and G filters excel in O III band transmission.
- Effective Light Pollution Blocking: G and R channel separation combined with anti-reflective coatings block sodium lamp emissions for clear urban imaging.
Technical Specifications
- Filter Type: LRGB bandpass filters
- Filter Diameter: 36 mm
- Filter Thickness: 2 ± 0.05 mm
- Filter Shape: Round
- Parfocalism: Yes
- RGB Channel Weights: 1:1:1
- Anti-Reflective Coating: Full Multi-Layer Coating (FMC)
- Maximum Transmission for L Filter: >95%
- Transmission Range for L Filter: 420 - 715 nm
- Maximum Transmission for R Filter: ~95%
- Transmission Range for R Filter: 600 - 710 nm
- Maximum Transmission for G Filter: ~95%
- Transmission Range for G Filter: 480 - 580 nm
- Maximum Transmission for B Filter: ~95%
- Transmission Range for B Filter: 420 - 520 nm
- Light Pollution Blocking: Sodium Lamps (598 nm, 589.6 nm)
- Surface Quality Index (according to MIL-O-13830 standard): 60/40
- Parallelism: <30 arcseconds
- Execution Accuracy (RMS): λ / 4 or better
Included in the Set
- Antlia LRGB-V Pro L Filter (Luminance)
- Antlia LRGB-V Pro R Filter (Red)
- Antlia LRGB-V Pro G Filter (Green)
- Antlia LRGB-V Pro B Filter (Blue)
Warranty
The Antlia LRGB-V Pro filters come with a three-year manufacturer's warranty, covering filter delamination and substrate defects.
