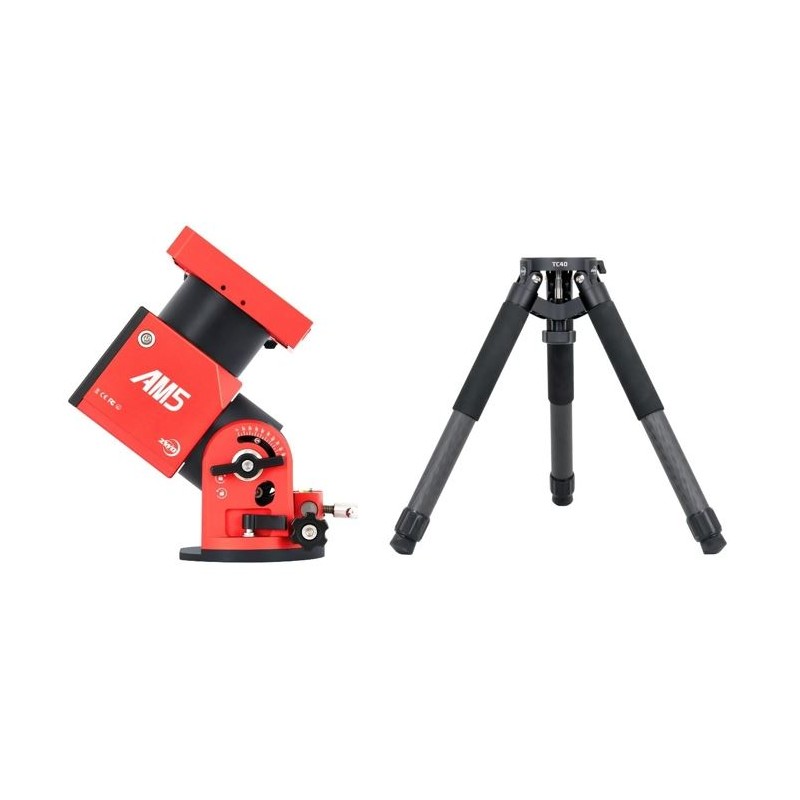

ZWO AM5 Harmonic Equatorial Mount with field tripod

ZWO has unveiled an exciting new offering for professional astrophotographers and astronomy enthusiasts in 2022. The ZWO AM5, an equatorial mount, stands out in the market of astronomical products due to its numerous innovative features and capabilities.

The ZWO AM5 is designed to operate in both equatorial (EQ) and azimuthal (AZ) modes, catering to the specific needs of astrophotography and observational purposes respectively. It incorporates high-resolution NEMA stepper motors and a wave gearbox, resulting in exceptional precision of 0.5 to 0.8 arcseconds. Control options include a hand controller, mobile application, and computer software compatible with the ASCOM driver. Notably, the AM5 is fully compatible with the popular ASIAIR™ series controllers, further enhancing its versatility.

Despite its compact size and lightweight design, the ZWO AM5 offers remarkable capabilities. It features an M12 thread on the head, allowing for the attachment of counterweight axes, thereby increasing the maximum load capacity from 13 to 20 kilograms. Importantly, the optical tube is protected against sudden falls in the event of a power failure, thanks to a dedicated brake mechanism.

Key Features of the ZWO AM5 Assembly:

Lightweight and high-capacity equatorial mount, with the option to work in azimuthal mode

Unparalleled precision, thanks to top-tier stepper motors and a 300:1 wave gear ratio

Individual correction of periodic error within ±20 arcseconds for each assembly specimen

Control via a hand controller or mobile application

Optical tube protection with a built-in brake system

Full compatibility with ASIAIR™ computers

Technical Parameters of the AM5:

• Mounting Type: Equatorial (EQ)
• Assembly Modes: Equatorial (EQ) / Azimuthal (AZ)
• Maximum Focal Length (manufacturer's recommendation): 900mm
• Maximum Load without Counterweights: 13kg
• Maximum Load with Counterweights: 20kg
• Optical Tube Mount: Losmandy / Vixen
• Counterweight Axle Mounting Thread: M12
• Latitude Adjustment Range: 0 - 90°
• Azimuth Adjustment Range: ±10°
• Right Ascension Axis (RA) Drive: NEMA 42 stepper motor with a 100:1 ratio and brake
• Declination Axis Drive (DEC): NEMA 35 stepper motor with a 100:1 ratio
• Stepper Motor Resolution: 0.17 arcseconds
• Drive Transmission: Wave gear with toothed belt, 300:1 ratio
• Periodic Error: <±20 arcseconds
• Single Period Duration: 432 seconds
• Maximum Rotation Speed: 6°/s
• Travel Speeds: 0.5x, 1x, 2x, 4x, 8x, 20x, 60x, 720x, 1440x
• Connectors: USB, ST-4 (guider), hand controller, power socket
• WiFi Module: Yes
• Communication with ASIAIR™ Module: Wired/Wireless
• Compatibility with ASCOM Driver: Yes
• Power Supply: 12V, 3A
• Power Consumption (Standby/Tracking/GoTo): 12V, 0.386A/12V, 0.58A/12V, 1.5A (AZ)
• Permissible Operating Temperatures: -20 to 50°C
• Head Weight: 5kg

Technical Parameters of the TC40 Tripod:

• Material: Carbon fiber
• Maximum Load: 50kg
• Compatibility: ZWO AM5, iOptron GEM45, iOptron GEM40, Rainbow Astro 135E, Sky-Watcher AZ-GTi
• Height: 470-800mm
• Number of Leg Sections: 2
• Diameter of Legs (Upper/Lower Sections): 40mm/36mm
• Length after Folding: 500mm
• Weight: 2.3kg

Set Components:

• ZWO AM5 assembly
• Hand controller
• Hand controller cable
• TC40 carbon fiber field tripod

Guarantee:

The ZWO AM5 is backed by a 24-month warranty.
