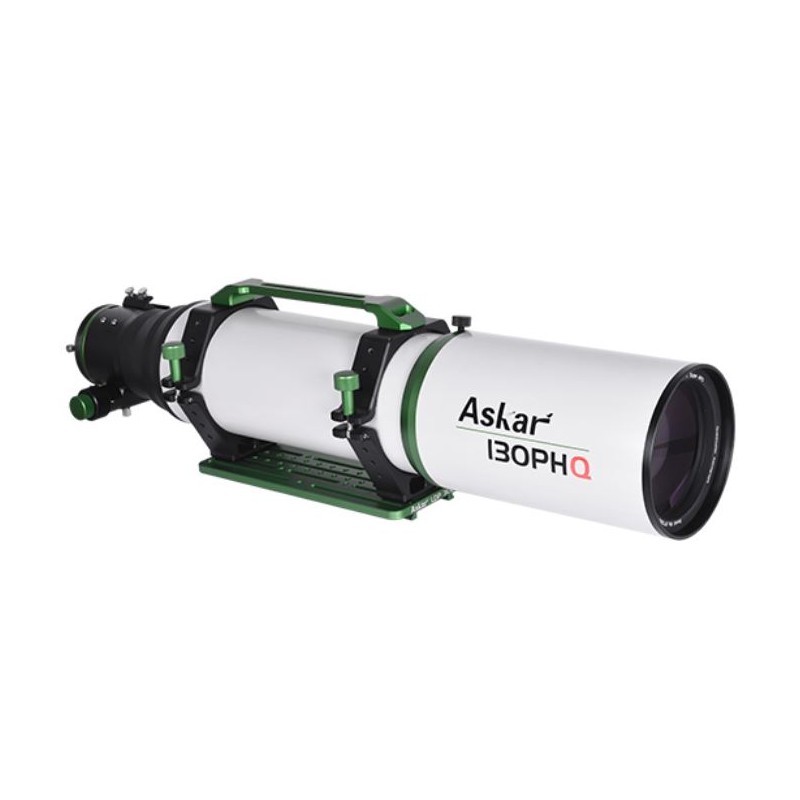

Askar 130PHQ APO 130/1000 f/7,7 OTA

The Askar 130PHQ is an exceptional astrograph designed to cater to both budding astrophotographers and seasoned professionals. Its optical characteristics make it the perfect choice for those taking their first steps in professional astrophotography, while also serving as a reliable optical tube for experienced and demanding users.

At the heart of this telescope lies a remarkable four-element apochromatic optics system with an air gap. The designers at Askar have opted for a solution commonly found in high-end apochromats – the use of two lenses made of glass with reduced dispersion (ED) – to ensure superior correction of chromatic aberrations. The Askar 130PHQ not only boasts excellent color reproduction but also exhibits minimal field curvature. This means that even without the need for an additional flattener, the image on the edge of the frame remains distortion-free and visually pleasing.

However, the capabilities of the Askar 130PHQ extend beyond astrophotography. With the attachment of an angle cap or glasses with a diameter of 1.25" and 2", this instrument enables users to conduct visual observations as well.

Aside from its impeccable optical performance, the Askar 130PHQ showcases high-quality and precision mechanical parts. Its sturdy focuser allows for the installation of even the heaviest astronomical cameras, while the CNC-machined mounting rings and Losmandy foot ensure complete stability of the tube.

Key Features of the Askar 130PHQ Telescope:

Premium astrograph equipped with two low-dispersion lenses to eliminate chromatic aberrations

Advanced optical design for perfect field curvature correction, eliminating the need for an additional flattener

Four-element adapter for connecting various cameras or photo cameras

Large illumination disc diameter to cover the full frame

Suitable for both astrophotography and visual observations

Technical Specifications:

• Optical construction: Apochromatic refractor
• Lens system: ED quadruplet with air gap
• Number of low dispersion lenses: Two
• Front lens diameter (aperture): 130 mm
• Focal length: 1000 mm
• Focal ratio: f/7.7
• Diameter of full illumination disc: 60 mm
• Compatibility with full-frame sensors: Yes
• Adapter for camera/camcorder connection: Four elements
• Working distance for M48x0.75 adapter (from thread base): 116 mm
• Working distance for M54x0.75 adapter (from thread base): 136 mm
• Working distance for M68x1 adapter (from thread base): 156 mm
• Working distance for M86x1 adapter (from thread base): 186 mm
• Compatible eyepieces/angle attachments: 1.25", 2"
• Possibility of installing a filter: 2" using an adapter M52x0.75 - M48x0.75
• Focuser diameter: 3.4"
• Focuser type: Rack & pinion with a ratio of 10:1
• Mounting for assembly: Losmandy foot
• Length of the tube with the extended dew shield and mounted adapter: 1012 mm
• Length of the tube with the folded dew shield and mounted adapter: 1062 mm
• Weight of the tube without accessories: 10.2 kg
• Weight of the tube with accessories: 12.5 kg

Included Components:

• Askar 130PHQ optical tube
• Four-element photographic adapter
• Mounting clamps
• 300 mm Losmandy rail
• Aluminum transport case

Warranty:

The Askar 130PHQ comes with a 24-month guarantee, ensuring peace of mind for your astronomical endeavors.
