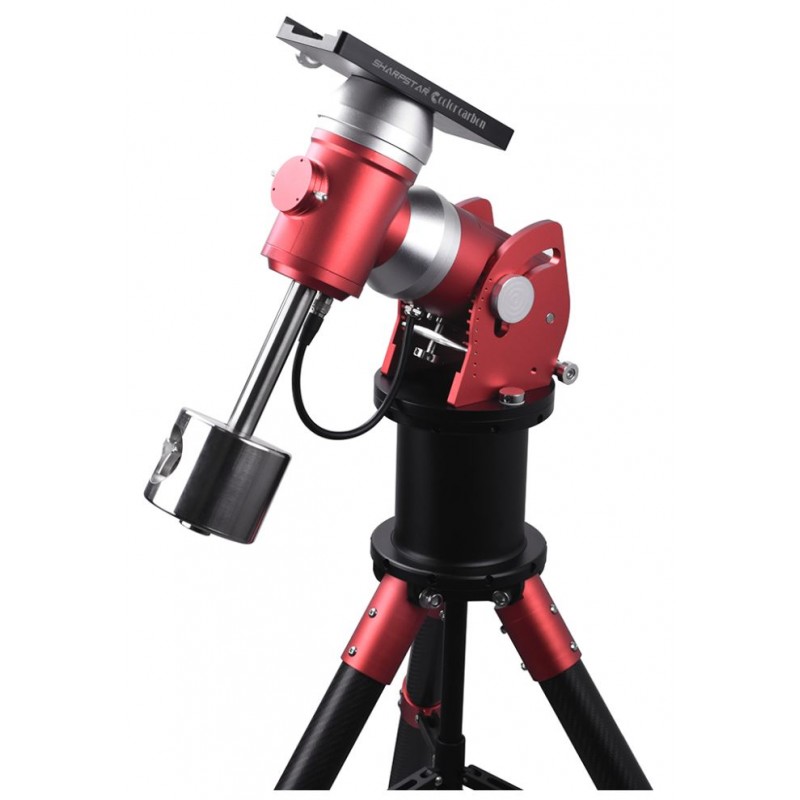

Sharpstar Mark III Harmonic Mount with 5 kg counterweight and field tripod

Sharpstar Mark III Harmonic Mount with 5 kg Counterweight and Field Tripod

Introducing the Sharpstar Mark III Harmonic Mount, a revolutionary tool for astrophotography enthusiasts who strive for top-tier performance and precision. This state-of-the-art mount combines a lightweight design with a robust load capacity, making it an essential piece of equipment for capturing the wonders of the night sky.

Unmatched Precision and Versatility

At the heart of the Mark III is a sophisticated wave gear system, delivering precise control with a 1:1000 gear ratio. This allows for a maximum rotation speed of 3.8°/s, providing smooth and accurate tracking. Whether you prefer a traditional equatorial setup or wish to switch to azimuthal mode, this mount accommodates latitudes from 15° to 80°, extendable to 90° with increased adjustment capabilities.

Advanced Control Features

The mount includes a professional handheld controller encased in a durable CNC technology shell. For those who seek modern control options, the Mark III offers a USB port and built-in WiFi module, allowing seamless control through software compatible with ASCOM or INDI protocols.

Compact Yet Powerful

The Sharpstar Mark III stands out with its compact form and lightweight design, yet it doesn't compromise on strength. By adding a counterweight axis with a 5 kg counterweight, you can enhance its maximum load capacity from 18 kg to 26 kg. In addition, a unique brake system safeguards your optical equipment from damage during power outages by preventing unexpected drops.

Key Features

• Lightweight Design: High load capacity suitable for both parallactic and azimuth configurations.
• Precision Drive: Advanced gear system with a 1:1000 ratio for declination and right ascension axes.
• Wireless Control: Built-in WiFi module for wireless data management.
• Latitude Adjustment: Capable of up to 90° in AZ mode for versatile positioning.
• Safety Features: Optical tube brake system to prevent damage during power interruptions.
• Software Compatibility: Fully compatible with ASCOM and INDI drivers.
• Durable Build: Handheld controller with a robust CNC casing.

Technical Specifications

• Mounting Type: Equatorial (EQ)
• Assembly Modes: Equatorial (EQ) / Azimuth (AZ)
• Maximum Load Without Counterweights: 18 kg
• Maximum Load With Counterweights: 26 kg
• Optical Tube Mounting: Dovetail 60/75°
• Length of Optical Tube Mounting: 200 mm
• Latitude Adjustment Range in EQ Mode: 15° - 80°
• Latitude Adjustment Range in AZ Mode: 15° - 90°
• Azimuth Adjustment Range: ±4°
• Drive: Stepper motor with emergency brake
• Ratio in Declination and Right Ascension Axis: 1:1000
• Maximum Rotation Speed: 3.8°/s
• Standard Rotation Speed: 1.9°/s (for heavy telescopes or large tube diameters)
• Tracking Speeds: Solar, lunar, stellar
• Additional Connectors: FOC1, FOC2, ROT (not supported)
• WiFi Module: Yes
• Data Transmission: WiFi, USB
• Guider Connector: ST-4
• Software: Onstep
• Sensors: Temperature and humidity
• Power Supply: 24 V
• Mount Weight (without counterweight): 7.95 kg
• Counterweight Weight: 5 kg
• Permissible Operating Temperatures: -25°C to 40°C
• Counterweight Shaft Material: 304 stainless steel

Included in the Set

• Sharpstar Mark III Harmonic Mount assembly
• Hand controller
• 12/24 V transformer
• 24 V power supply
• Power cord
• Counterweight arm
• Counterweight
• Toolkit

Warranty

Enjoy peace of mind with a 24-month guarantee on the Sharpstar Mark III Harmonic Mount, ensuring your satisfaction and reliability.

Discover the next level of astrophotography with the Sharpstar Mark III Harmonic Mount. Its superior craftsmanship, intuitive controls, and compatibility with leading software make it an unparalleled choice for capturing stunning celestial images. Embark on your astronomical journey today with confidence and precision.
