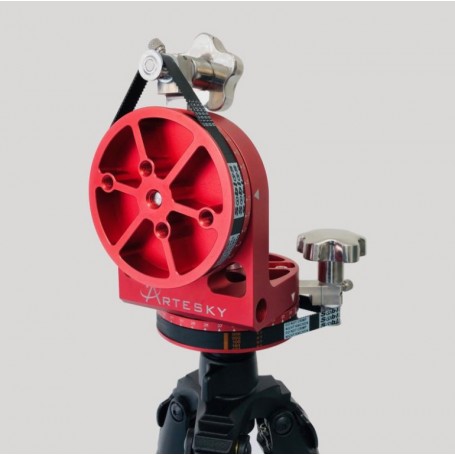

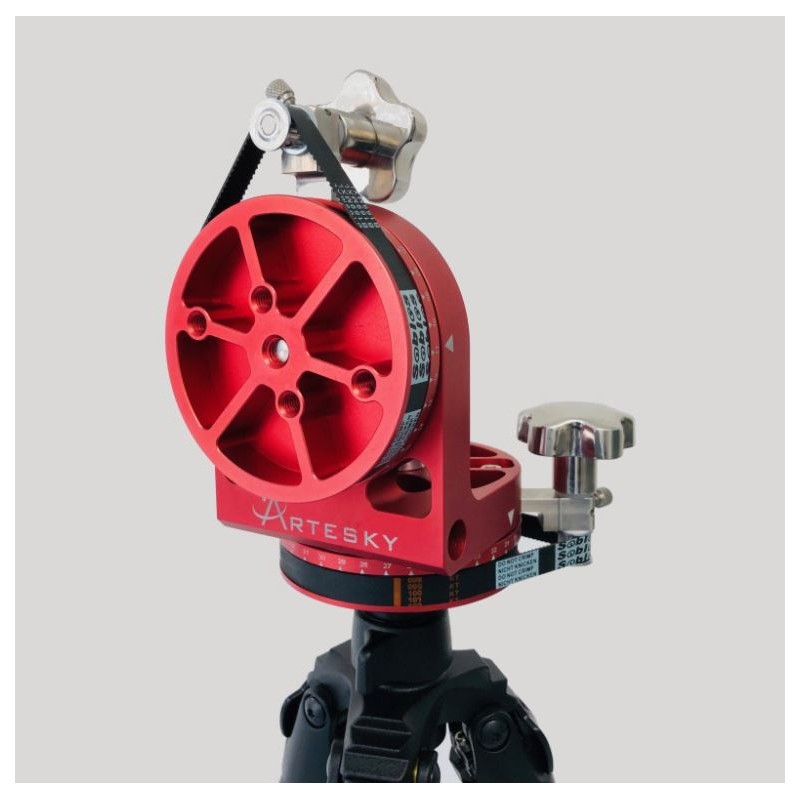

Artesky AZB2 Precision Azimuth Mount for Tripods

The Artesky AZB2 Precision Azimuth Mount is an exceptional choice for astronomy enthusiasts seeking a portable and lightweight mounting solution. Designed to fit tripods with a standard 3/8" photographic thread, this mount combines innovation and practicality, making it a standout option in its category.

With its dual belt transmissions offering both coarse and fine adjustments, along with cylindrical roller bearings, the Artesky AZB2 delivers unmatched precision and smooth positioning for your optical instruments. The integrated brakes on both gears allow for quick and secure positioning of objects within your telescope's field of view.

Despite its compact design, the Artesky AZB2 boasts an impressive load capacity of up to 15 kilograms. For those using heavier optical equipment, the mount supports the addition of a counterweight arm for optimal balance. Attaching your telescope is made simple with a compatible plate using M8 screws.

It is important to note that the overall maximum load capacity of your setup will depend greatly on the quality of the tripod used. Ensure that you pair this mount with a stable and reliable tripod to maintain safe and efficient operation.

Key Features of the Artesky AZB2 Azimuth Mount:

• Lightweight Design: Perfect for photographic tripods with a load capacity of up to 15 kg.
• Precision Adjustment: Belt transmissions and cylindrical roller bearings for smooth positioning.
• Optional Counterweight: Enhance balance with a counterweight arm for heavy instruments.
• Easy Mounting: Telescope attachment via Vixen/Losmandy socket mounting plates.

Technical Specifications:

• Mounting Type: Azimuth (AZ)
• Load Capacity: 15 kg
• Transmission Type: Belt
• Bearing: Cylindrical Roller Bearings
• Mounting Adjustment: Coarse/Fine
• Independent Rotation Lock: Yes, in both axes
• Counterweight Installation: Yes, optional
• Counterbalance Rod Diameter: 20 mm
• Tripod Mount: 3/8" Thread
• Plate Fixing: Vixen/Losmandy with 4 M8 Screws
• Weight: 1.6 kg

Set Components:

• Artesky AZB2 Azimuth Mount

Warranty:

The Artesky AZB2 azimuth mount is backed by a 24-month guarantee, ensuring both satisfaction and peace of mind for your purchase.
