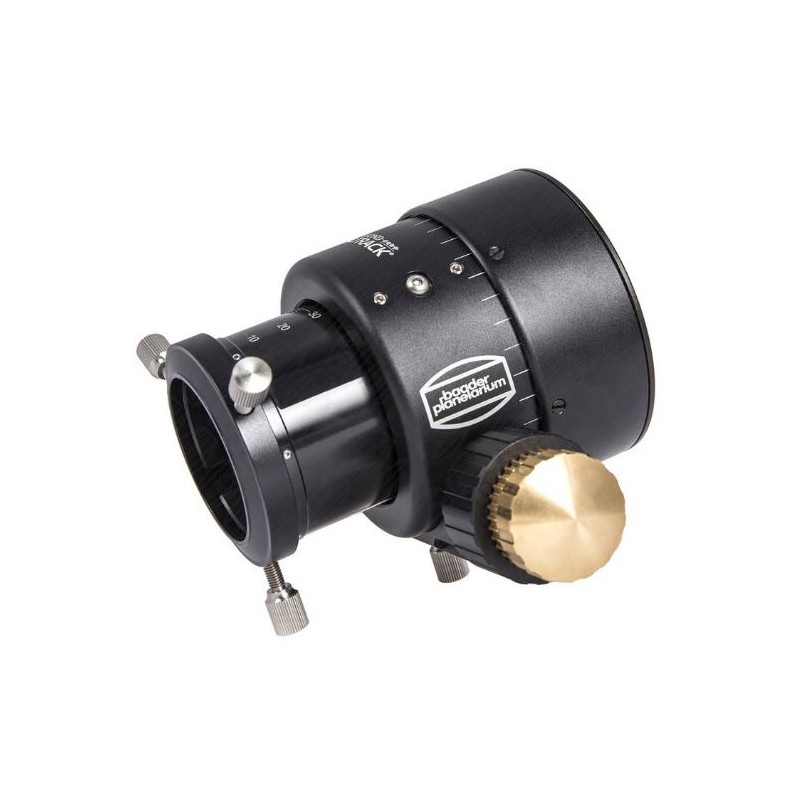

Baader Diamond Steeltrack BDS-SC 2" Focuser (SKU: 2957220)

The Baader Diamond Steeltrack BDS-SC 2" focuser, with SKU: 2957220, is a high-quality piece of equipment specifically curated for Schmidt-Cassegrain telescopes. Designed with exact precision, this Crayford-style eyepiece extractor offers outstanding durability, making it an ideal choice for both astrophotography enthusiasts and visual observers. Its superior construction ensures smooth and accurate focusing, enhancing the overall performance of your telescope. Couple that with a premium feel, incredible ease of use, and unrivaled reliability, the Baader Diamond Steeltrack BDS-SC 2" focuser truly stands as an excellent addition to your astronomical equipment collection.
393.06 $
Tax included

319.56 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Baader Diamond Steeltrack BDS-SC 2" is an exceptional Crayford eyepiece extractor specifically designed to complement telescopes in the Schmidt-Cassegrain system. This durable and precise focuser is perfect for both astrophotography enthusiasts and visual observers.

What sets this extractor apart from its competitors is its unwavering commitment to material selection. The focuser mechanism is crafted from high-quality stainless steel, and a diamond layer is applied to the friction surface, creating an incredibly precise micro-gear. Combined with a meticulously designed bearing system, this guarantees seamless adjustment and perfect alignment, even when handling a load of up to 6 kg.

Thanks to its large internal diameter, this hood can accommodate full-frame cameras without the risk of vignetting. Additionally, it features baffles that effectively eliminate internal light reflections. For astrophotographers, a crucial feature is the ability to expand the focuser with an optional electronic focus control drive called the SteelDrive.

Key Features of the Baader Diamond Steeltrack BDS-SC 2" Eyepiece Extractor:

A professional Crayford eyepiece extractor designed for Schmidt-Cassegrain telescopes.

Stainless steel mechanism with a diamond friction surface.

High-quality roller bearings for optimal performance.

Perfect alignment and zero backlash, even with a maximum load of 6 kg.

Internal baffles to eliminate glare and improve image quality.

Equipped with S58 and M55 threads for easy connection of correctors, flatteners, and other optical accessories.

Compatible with the electronic SteelDrive drive for convenient and precise focusing.

Easily adaptable for both right-handed and left-handed users.

Technical Specifications:

  • Focuser type: Crayford
  • Compatible with: Schmidt-Cassegrain telescopes
  • Extractor size: 2"
  • Inner diameter of the exhaust hood: 55 mm
  • Focus adjustment range: 30 mm
  • Focus adjustment scale: 0 - 30 mm with ± 1 mm divisions
  • Maximum load capacity: 6 kg
  • Gear ratio: 1:10
  • Bearing type: Roller bearings
  • Gear material: Stainless steel
  • Friction surface: Diamond
  • Electric drive compatibility: Yes
  • Eyepiece side mount: Clamping with three mounting screws/M55x1 thread/S58 thread
  • Telescope side mount: 2" UNF/3.3" UNF
  • Weight: 1.08 kg

Kit Components:

  • Baader Diamond Steeltrack BDS-SC 2" eyepiece extractor

Warranty:

The Baader Diamond Steeltrack BDS-SC 2" eyepiece extractor comes with a 24-month warranty, ensuring your satisfaction and peace of mind.
