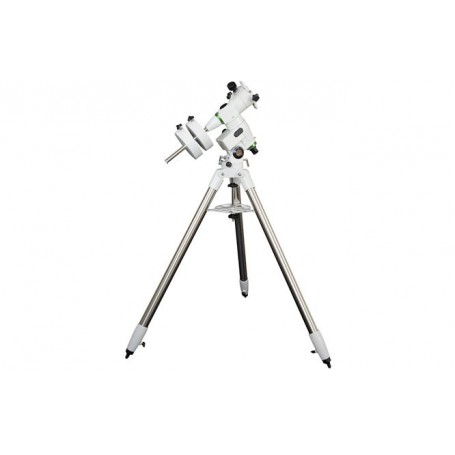

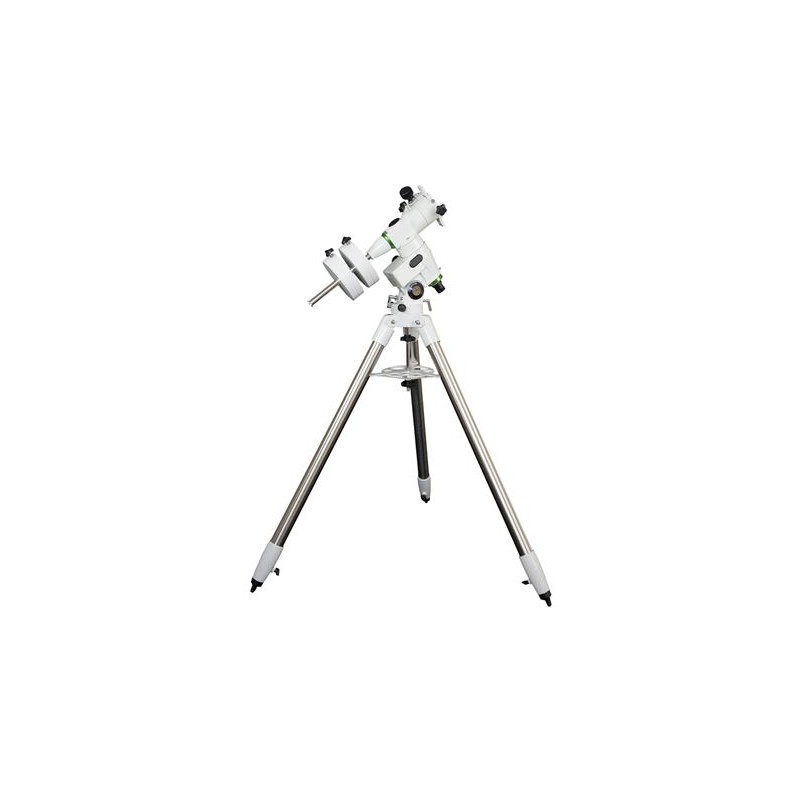

Sky-Watcher EQ5 Mount with Steel Tripod

The CG-5 parallact mount, also known as EQ5, is a reliable and high-performance equipment designed to provide exceptional stability and precision for astronomers of all levels, including advanced users. With its robust construction and advanced features, the EQ5 offers a range of benefits that enhance the overall observing experience.

The mount features a sturdy assembly head that securely rests on a wide platform mounting stand made of stainless steel. This stand is equipped with a convenient accessory table, providing ample space for storing additional tools and equipment. To ensure accurate leveling, the EQ5 includes a level indicator, allowing users to easily adjust the mount for optimal performance. Furthermore, it offers geographical width setting with a micrometer scale and an azimuthal polar setter for precise alignment with the polarity star.

The EQ5 mount incorporates engraved aluminum adjusting rings and microcontroller knobs, facilitating smooth and precise adjustments during observations. Additionally, it offers the option of equipping a polar spot scope and drive in either one or two axes, further enhancing tracking capabilities.

In terms of technical specifications, the EQ5 boasts a lifting capacity ranging from 10 to 13 kg, depending on the size of the telescope tube. The tripod height can be adjusted between 84 cm and 116 cm, while the maximum height of the tripod and headstock combined is 152 cm. The legs of the tripod can be spaced between 93 cm and 124 cm, providing stability and flexibility for different observing conditions. The head of the mount weighs 4.1 kg, while the tripod weighs 5.1 kg. Two counterweights, each weighing 5.2 kg, are included to ensure proper balance. The counterbalance rod, with a weight of 875 g, a length of 31 cm, and a diameter of 20 mm, further contributes to the overall stability of the mount. Additionally, a shelf for accessories weighing 390 g is included.

The complete set of the EQ5 mount includes a durable 1.75" (44.5 mm) steel tripod with adjustable height, two counterweights, and a shelf for accessories. These components provide a comprehensive and user-friendly package for astronomers.

The EQ5 mount is backed by a 2-year warranty, offering customers peace of mind and assurance of its quality and reliability.

In summary, the EQ5 (CG-5) parallact mount is a versatile and high-performance equipment designed to meet the needs of both amateur and advanced astronomers. With its exceptional stability, precision, and a range of useful features, this mount provides a solid foundation for successful astronomical observations.
