Sky-Watcher SynScan GOTO Upgrade Kit for SkyWatcher EQ3-2 (with WiFi, 2022 version)

The SynScan EQ3 GoTo upgrade kit provides a comprehensive solution to transform the traditional SkyWatcher EQ3-2 equatorial mount into the Pro version, catering to both visual observations and astrophotography enthusiasts.

Stepper motors drive the declination and right ascension axes, ensuring precise movement. Heavy-duty gears transmit torque to the axles, ensuring stability and reliability. With all the necessary accessories included in the kit, installation is straightforward and intuitive.

The SynScan controller manages the entire system, with its software responsible for controlling periodic errors and reducing backlash. The controller boasts an extensive database containing information on over 42,000 celestial objects, including planets, stars, galaxies, and entries from the Messier, NGC, and IC catalogs.

Please note that the set only includes a power adapter with a cigarette lighter plug. You will need to purchase a suitable AC adapter separately.

Key Features of the SynScan EQ3 GoTo Upgrade Kit:

Precise stepper motor-driven declination and right ascension axes.

Control via the SynScan smartphone app using WiFi connectivity.

Periodic error control and compensation for backlash.

Enhanced Pointing Accuracy (PAE) technology for faster and more accurate object targeting.

Technical Specifications:

• Compatible Mounting: SkyWatcher EQ3-2
• Drive: Stepper motors with 1.8° per step
• Power Transmission: Gear wheels
• Travel Speeds: 1x, 2x, 16x, 32x, 64x, 128x, 400x, 500x, 600x, 800x (3.4°/second)
• Tracking Speeds: Star, lunar, solar
• Guiding Speeds: 0.25x, 0.5x, 0.75x, 1x
• Periodic Error Correction: Yes
• Guiding Accuracy: <1"
• Autoguider Connector: ST-4 port
• Alignment Options: Two-star, single bright star
• Database: Messier catalog, NGC, IC accessible through the SynScan App
• Computer/Smartphone Communication: WiFi connectivity
• ASCOM Standard Compliance: Yes
• Power Supply: 11-15V, 2A
• Maximum Load Capacity: 9 kg

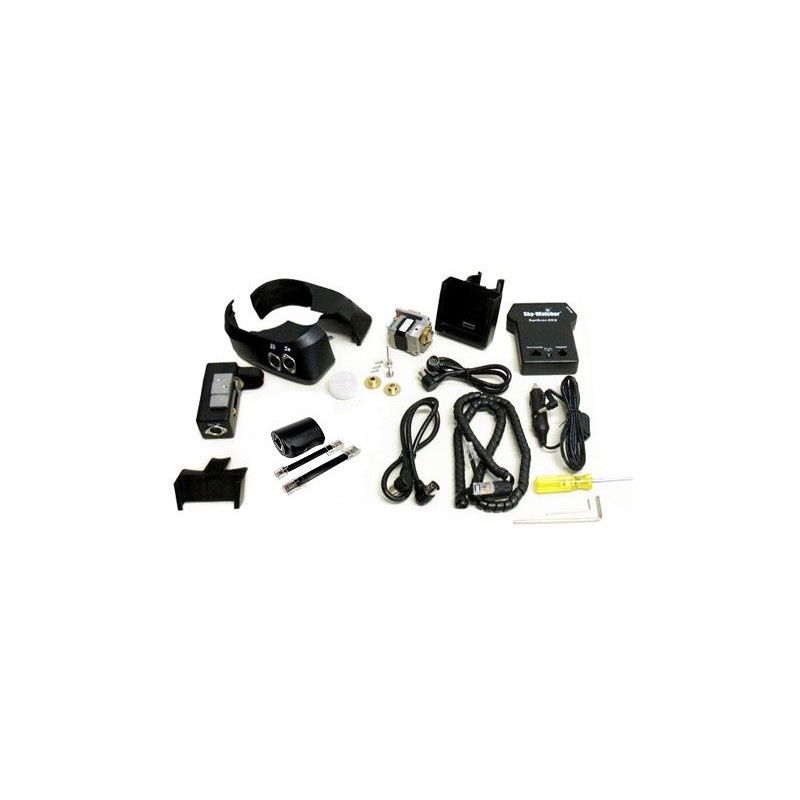

Included Components:

• Declination and right ascension axis motors
• Cog gears
• Drive housing with control connectors
• Motor controller
• Cabling
• Screwdriver
• Allen key
• 12V power cable for the cigarette lighter socket
• Controller attachment clip

Warranty:

2 years

(Note: The 2022 version does not include a remote control but offers WiFi communication)

FREQUENTLY ASKED QUESTIONS <<

Q: Does the system provide automatic tracking or only manual tracking?

A: The system offers both manual tracking and automatic tracking capabilities. You have the option to use the GoTo feature for object search and guidance, or simply utilize the tracking function to follow celestial objects continuously within the field of view.

Q: Does the set include everything I need?

A: The set does not include a power supply. Additionally, you will require a smartphone that supports WiFi communication to control the mount.
