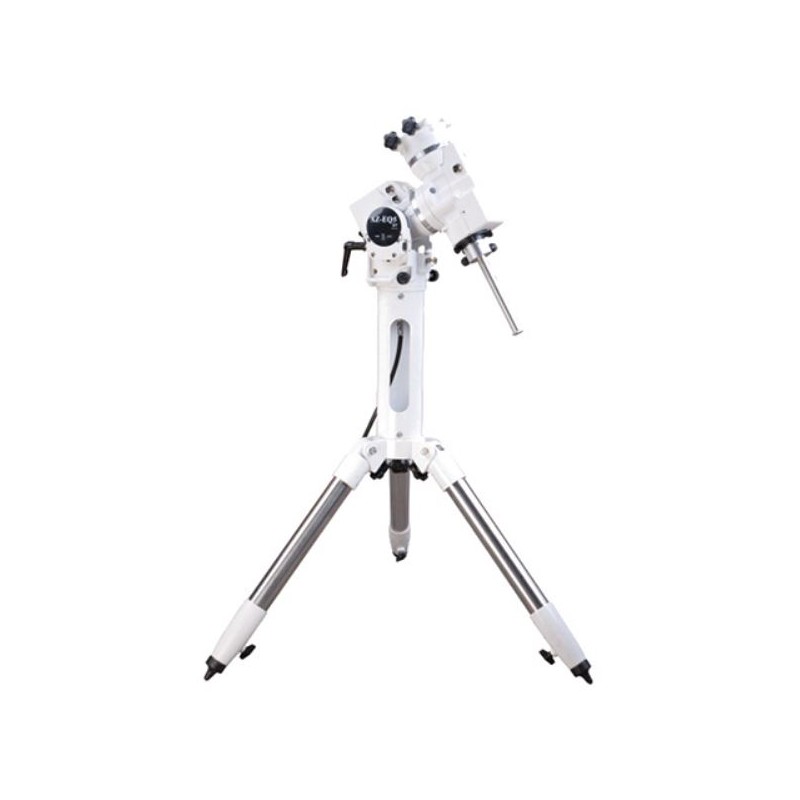

Sky-Watcher AZ-EQ5 GT mount with WiFi (aka AZ-EQ5 PRO with pier)

The Sky-Watcher AZ-EQ5 assembly is a computerized equatorial mount that comes with a GoTo SynScan controller, dual-axis encoders, and a stable tripod. It is a modified version of the well-established HEQ-5 model, based on the larger AZ-EQ6. The AZ-EQ5 offers a lighter and more portable design while maintaining a suitable load capacity of 15kg, making it ideal for advanced astrophotography.

One of the standout features of the AZ-EQ5 is its hybrid motors and the ability to operate in both equatorial and azimuthal modes. It incorporates innovative solutions and enhancements, setting it apart in its price range. The mount features a USB port for connectivity, replacing the previous RS-232 port. It also includes an autoguider port and a port for controlling reflex cameras. Similar to the AZ-EQ6, the AZ-EQ5 allows for the use of two optical tubes simultaneously on both ends of the same axis using an additional saddle.

The AZ-EQ5 offers excellent ergonomics with large and convenient adjustment knobs and screws. Fine adjustments to the polar axis can be made manually with minimal force. Notably, the mount utilizes double encoders to track telescope movements in both axes, independent of the GoTo system. This feature, known as Freedom Find technology, enables manual rotation without the need to reset the GoTo system.

The assembly employs the latest version 4 of the SynScan driver, which provides a comprehensive database of 42,000 objects. GoTo system settings can be configured using three stars, but simpler setups can be achieved with two stars or even a single object such as a planet. The mount allows tracking at stellar, solar, and lunar speeds. Additional improvements can be made using the Periodic Error Correction (PEC) function or Precision Automatic Error (PAE) to enhance object homing precision. A special marker on the RA axis worm wheel enhances the use of the PEC function by precisely determining its position. This marker is stored in the internal memory and can be accessed anytime (also known as PPEC - Permanent Period Error Correction).

The AZ-EQ5 offers convenient polar axis alignment features and includes a built-in USB port for computer control without requiring additional adapters. The included RS-232 cable enables software updates. Additionally, the mount can be paired with an optional GPS module for precise location and time information during observations.

Weighing 14 kilograms, the assembly comes with two 3.5-kilogram counterweights. Optional accessories include a polar scope and a 12V power supply (the standard assembly includes a cable for the cigarette lighter socket).

For any mount equipped with the SynScan GO-TO system, we recommend using an additional GPS module to automate and simplify the setup of geographical coordinates and observation time.

Key Features:

Equatorial and azimuthal system capability

Permanent Periodic Error Correction (PPEC)

Belt transmission for smooth operation and reduced play

SLR camera control via the cable release socket on the mount

High-precision motor controllers

Two Vixen double dovetail saddles included

Improved power socket

Polar axis alignment using a telescope or the GoTo system

Double encoder system

Technical Specifications:

• Mount type: Azimuth/Equatorial
• Load capacity: 15 kg (without counterweights)
• Latitude range: 0 to 90 degrees
• Azimuthal adjustment: +/- 15°
• Weight: 7.7 kg (without tripod and counterweights)
• Counterweights: 2 x 3.5 kg
• Stand: stainless steel with a mounting diameter of 100 mm
• Tripod weight: 6.1 kg
• Counterweight rod: diameter 18 mm, length 162 mm + 120 mm
• Supply voltage: DC 11 - 16 V / 3A
• Motors: Hybrid stepper motors with 1.8-degree step
• Transmission RA: worm gear 135:1, backlash-free reduction gear on toothed belt 72:12
• Overall ratio: 810:1
• Driver: Stepper motor microcontroller with microsteps up to 1/32
• Drive resolution: 5184000 microsteps per revolution
• Guidance accuracy: 0.25 arc seconds
• Maximum sweep speed: 4.2 degrees/second
• Tracking speeds: star, lunar, solar
• Tracking modes: equatorial / azimuthal
• Autoguiding speeds: 0.125 / 0.25 / 0.5 / 0.75 / 1x
• PEC correction: 1200 segments
• GoTo system: SynScan application with WiFi adapter for smartphone/computer connectivity
• Object database: 42,000+
• Object catalogs: Messier, NGC, IC, SAO, Caldwell, Double Stars, Variable Stars, Named Stars, Planets
• Object guidance: FreedomFind, remote control, and manual alignment preservation
• GO-TO guidance accuracy: 5 arc minutes RMS
• AUX auxiliary encoders resolution: 5144 imp/rev. (approximately 4.2 arcminutes)
• Autoguider port: ST-4
• DSLR release port: 2.5mm mini jack
• Mount alignment modes: 1, 2, 3 stars (EQ), 2 stars (AZ)
• Packed assembly weight: 11 kg + 12 kg (two boxes)
• Packaging dimensions: 47 x 45 x 31 cm + 89 x 28 x 34 cm (two boxes)

Included Equipment:

• Two universal standard Vixen saddles
• Extendable counterweight rod
• Two 3.5 kg counterweights
• SynScan V4 handheld controller
• Cigarette lighter power cable

Guarantee:

60 months (including 24 months for electronics)

(Note: The 2022 version does not include a SynScan handheld controller but offers WiFi communication instead.)
