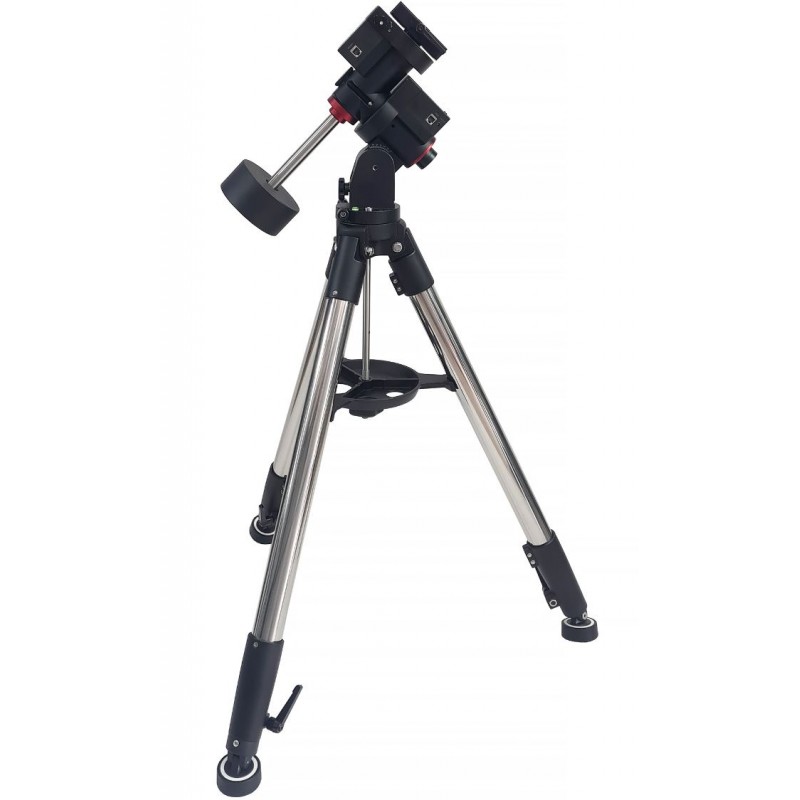

iOptron GEM28 with iPolar and 1,75" LiteRoc tripod (SKU: G281A3)

The iOptron GEM28 is an advanced equatorial mount (EQ) specifically designed for professional visual observations and astrophotography. With its use of high-quality materials and innovative design solutions, iOptron engineers have created a product that sets new standards in the realm of lightweight mounts capable of carrying heavy loads.

The assembly's metal head houses a precise drive system comprising high-resolution stepper motors. These motors transmit torque to the declination and right ascension axes via a belt transmission, ensuring smooth and accurate movement. The advanced system of permanent correction of periodic error guarantees the highest level of guiding precision, with an error value of less than ten arc seconds.

The GEM28 mount is designed to work seamlessly with the Go2Nova® 8409 controller. This controller boasts an extensive database of over 212,000 celestial objects, providing users with unparalleled observation possibilities. It allows for countless hours of exploration and enjoyment of the breathtaking views offered by the night sky. Additionally, the assembly includes the iPolar ™ electronic polar finder, which simplifies polar alignment.

Key Features of the iOptron GEM28 Equatorial Mount:

Professional and high-capacity equatorial mount suitable for astrophotography and visual observations.

Features the iPolar ™ polar finder and the Go2Nova® controller with an extensive database of over 212,000 objects.

Offers permanent control of periodic error, minimizing it to less than 10 arc seconds.

Equipped with ultra-precise stepper motors that consume minimal energy.

Sturdy LiteRoc ™ tripod with a wide range of adjustments for stability.

Technical Specifications of the iOptron GEM28 Assembly:

• Mounting Type: Equatorial (EQ)
• Latitude Range: 10° to 70°
• Azimuth Adjustment Range: ±6°
• Maximum Load (excluding counterweight): 12.7 kg
• Maximum Recommended Optical Tube Diameter: 6"
• Counterweight: 4.5 kg
• Counterweight Arm Diameter: 20 mm
• Counterbalance Arm Length: 306 mm
• Right Ascension Axis Gear: Aluminum, Φ88 mm, 144 teeth
• Right Ascension Axis Shaft Diameter: Φ35 mm
• Right Ascension Axis Shaft Material: Steel
• Right Ascension Axis Bearing: Ball, Φ55 mm
• Declination Axis Gear: Aluminum, Φ88 mm, 144 teeth
• Declination Axis Shaft Diameter: Φ35 mm
• Declination Axis Shaft Material: Steel
• Declination Axis Bearing: Ball Bearing, Φ55 mm
• Worm Gear: Brass, Φ15.2 mm
• Drive: 1.8° Stepper Motor, 128 microstepping
• Motor Resolution: 0.17 arc seconds
• Drive Train: Belt Gear
• Periodic Error Control: Permanent (PPEC)
• Maximum Periodic Error: <±10 arc seconds
• Gear Rotation Period: 600 seconds
• Handheld Controller: Go2Nova® 8409, ~212,000 objects in the database
• Tracking Mode: Automatic
• Autoguiding: Yes (requires iGuider ™ kit retrofitting)
• Rotation Speeds: 1x, 2x, 8x, 16x, 64x, 128x, 256x, 512x, MAX (6°/s)
• Polar Finder: iPolar ™ (Electronic)
• Polar Finder Field of View (FOV): Approximately 13°
• Polar Finder Resolution: 30 arc seconds
• Polar Finder Matrix Type: CMOS
• Polar Finder Matrix Size: 1280 x 960 pixels, 1/3"
• Polar Finder Pixel Diameter: 3.75 µm
• Level Indicator: Spirit Level
• Built-in Wifi Module: Yes
• Optional GPS Module: 32-channel
• Connectors: USB, ST-4
• ASCOM Standard Compatibility: Yes
• Power Supply: 12 V DC, 5 A
• Mains Adapter: 100 - 240 V
• Tracking Current Consumption: 0.6 A
• GoTo Current Consumption: 0.9 A
• Operating Temperature Range: -10°C to 40°C
• Optical Tube Mounting Socket: Vixen, 3.8"
• Head Material: Metal (Cast + CNC)
• Head Finish: Powder Coating
• Head Weight: 4.5 kg
• Tripod Material: Aluminum (Head) / Stainless Steel (Legs)
• Central Fixing Screw: M12, 10"
• Number of Leg Sections: Two
• Leg Section Diameter: 1.75" / 1.5"
• Tripod Height: 765 mm to 1168 mm
• Maximum Distance Between Tripod Legs: 1520 mm
• Accessory Shelf: Metal
• Tripod Weight: 7.5 kg

Kit Components:

• iOptron GEM28 Assembly
• Go2Nova® Controller
• 4.5 kg Counterweight
• Counterweight Shaft
• iPolar ™ Polar Finder
• Control Cables
• USB Cable
• Network Adapter
• LiteRoc ™ 1.75" Tripod
• Documentation

Warranty:

The iOptron GEM28 assembly is covered by a 24-month warranty.
