Levenhuk Ra R66 ED Doublet Black OTA

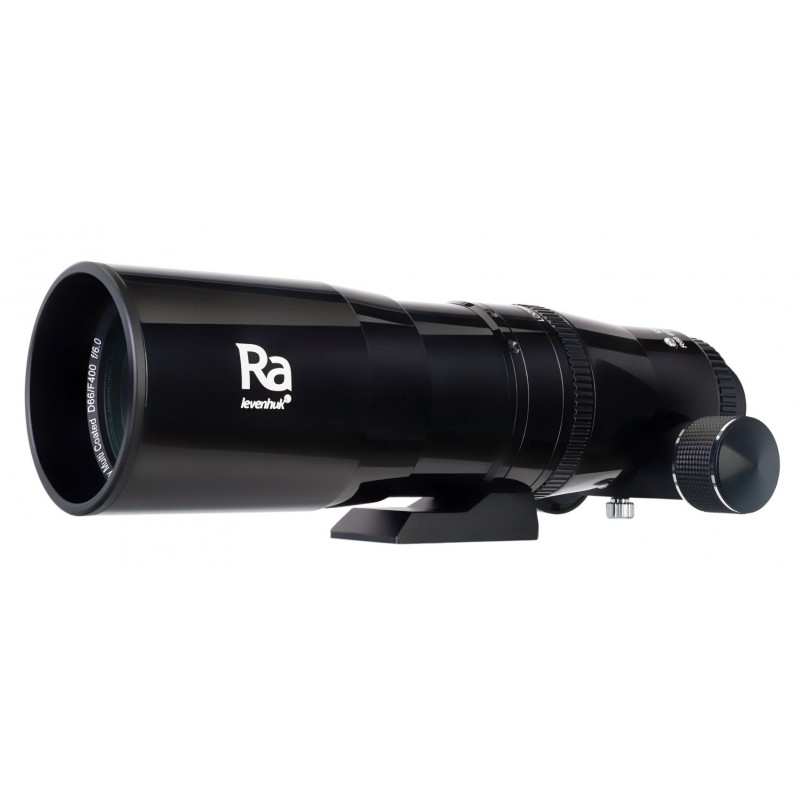

The Levenhuk Ra R66 ED Doublet Black OTA is an apochromatic refractor with a short-focus optical tube. Designed for the serious stargazer, this product swiftly brings into view the celestial wonders listed in the Messier and NGC catalogues. Its high-resolution capability allows for in-depth observation of the moon's surface relief. Not limited to planetary observations, the R66 ED Doublet also excels in astrophotography of the deep sky. This Optical Tube Assembly (OTA) delivers high contrast, incredibly clear and detailed pictures, making it an excellent choice for both casual enthusiasts and seasoned astronomers.
565.80 $
Tax included

460 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Levenhuk Ra R66 ED Doublet Black OTA apochromatic refractor is a short-focus optical tube that allows for getting an idea of the objects from the Messier and NGC catalogues as well as observe the relief of the lunar surface in detail. You can carry out planetary observations as well as deep sky observations. However, the primary use of this Optical Tube Assembly (OTA) is astrophotography. The pictures taken by this telescope are high contrast and very clear detail.

The lenses are made of extra-low dispersion glass that effectively suppresses chromatic aberrations, especially secondary and spherochromatism. The wide field of view makes it comfortable to study extended areas of the sky. The telescope features a dual-speed Crayford focuser that provides smooth and highly accurate focusing under all conditions.

The optical tube is made of anodized aluminum and can be installed on most modern mounts. As the OTA is quite lightweight and compact, it is a great choice for countryside trips. The kit also includes a convenient aluminum case for transporting and storing the telescope.

Please note: Mount, tripod, and optical accessories are not included.

Features:

Compact and lightweight apochromatic refractor

Fully multi-coated glass lenses made of ED glass

Dual-speed Crayford focuser for precise focus adjustments

Excellent image clarity and contrast, minimal chromatism

Excellent choice for astrophotography, good for visual observations

The kit includes:

  • Telescope optical tube
  • Cleaning wipe
  • Aluminum case
  • Protective caps
  • User manual and lifetime warranty

Specifications

  • Product ID 61945
  • Brand Levenhuk, Inc., USA
  • Warranty, years lifetime
  • EAN 5905555002576
  • Package size (LxWxH), cm 40.5x29.5x21
  • Shipping Weight, kg 4.37
  • Optical design refractor
  • Optical scheme apochromat
  • Optics material ED
  • Optics coating fully multi-coated
  • Objective lens diameter (aperture), mm 66
  • Focal length, mm 400
  • Highest practical power, x 132
  • Aperture ratio f/6
  • Resolution threshold, arcseconds 1.75
  • Limiting stellar magnitude 11.2
  • Focuser 1.25", Crayford, dual-speed
  • Telescope control manual
  • Optical tube mounting mode quick-release 1/4" thumbscrew
  • Optical tube material anodized aluminum
  • User level experienced users, professionals
  • Assembly and installation difficulty level easy
  • Observed object planets of the Solar System
  • Pouch/case/bag in set case
