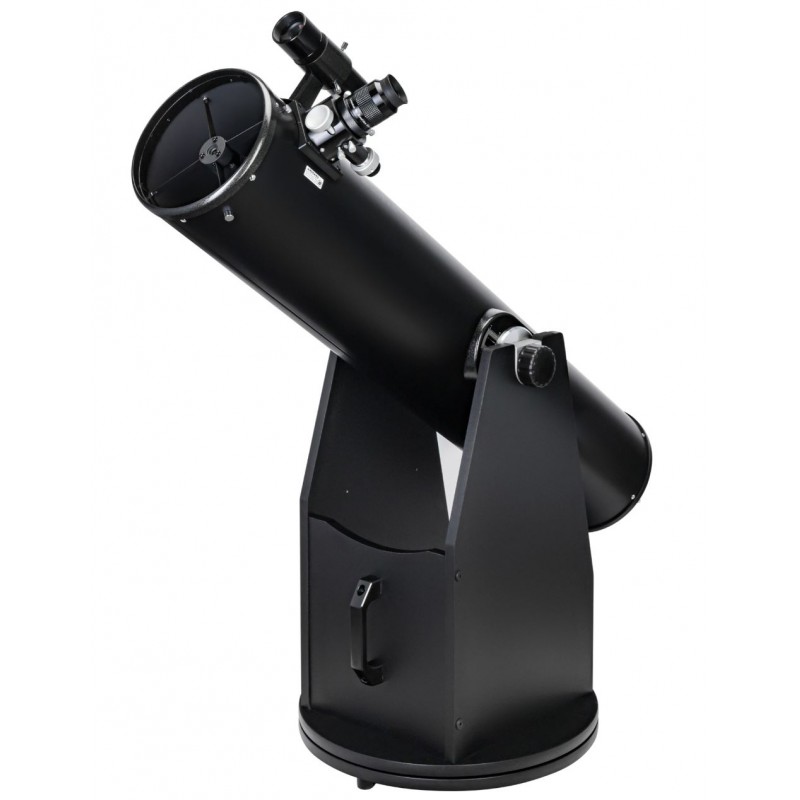

Levenhuk Ra 200N Dobson Telescope

The Levenhuk Ra 200N Dobson telescope is a 200mm Newtonian reflector for observing deep sky objects, including star clusters, nebulae, and galaxies. You can also observe the planets of the solar system: Mars, Venus, Saturn, Jupiter, etc. as well as their satellites. A demanding user who wants a comprehensive observation experience will like this telescope. The telescope is easy to operate even for a beginner.

Parabolic primary mirror and active cooling of the optics

The primary mirror features a parabolic shape that minimizes optical distortion when observing at high magnifications. Its surface is covered with an aluminum coating with a reflectivity index of 92~96%. This has a positive effect on the contrast and brightness of the transmitted picture. You can adjust the focus with a dual-speed achromatic Crayford focuser. It is backlash-free and holds even heavy optical accessories securely for fast and accurate focusing.

The back cover of the telescope tube features a cooling fan. It makes the thermo stabilization of optics almost two times faster so that you can start observations much faster. The fan runs on batteries (purchased separately).

Dobsonian mount with an improved brake system side bearing for smooth tube movement

The telescope features a classic Dobsonian mount. It has a conventional design and all of the advantages of this mount type, but at the same time its mechanics has been significantly improved. A special brake system side bearing for smooth tube movement allows you to move the optical tube a few centimeters up or down. When using additional attachments, this will quickly balance the telescope and maximize stability.

There are scales on the mount sides for convenient balancing. In addition, the bearings are durable and provide a smoother movement, which is important when using the telescope at high magnifications.

Quick start kit

The telescope kit includes two eyepieces with a different focal length and an 8x50mm finder. They will allow you to start observations right away.

Features:

Reflector with a 200mm diameter parabolic primary mirror

Special aluminum coating with a reflectivity index of 92~96%

Active cooling of optics for faster temperature stabilization

Dual-speed Crayford focuser for precise focus adjustments

Brake system side bearing for smooth tube movement

User-friendly and easy-to-assemble Dobsonian-style mount

The kit includes:

• Telescope optical tube
• Dobsonian mount
• Plössl 9mm eyepiece
• Super View 30mm eyepiece
• Finder 8x50mm
• Finderscope base
• Cooling fan
• User manual and lifetime warranty

Specifications

• Product ID 50748
• Brand Levenhuk, Inc., USA
• Warranty, years lifetime
• EAN 5905555002606
• Package size (LxWxH), cm 130x59x32
• Shipping Weight, kg 30.44
• Optical design reflector
• Optical scheme Newtonian
• Optics material BK-7
• Optics coating aluminum
• Primary mirror diameter (aperture), mm 200
• Secondary mirror obstruction, mm 50.0
• Lens (mirror) shape parabolic
• Focal length, mm 1200
• Highest practical power, x 400.0
• Aperture ratio f/6
• Resolution threshold, arcseconds 0.69
• Limiting stellar magnitude 14.2
• Eyepieces Plössl 9mm (133x), Super View 30mm (40x)
• Eyepiece barrel diameter, in 1.25/2
• Objective lens obstruction: by area 0
• Objective lens obstruction: by diameter 25
• Finderscope optical, 8x50
• Focuser 2", Crayford, dual-speed
• Accessory tray ✓
• Telescope control manual
• Mount Dobsonian
• Mount material wood
• Additional primary mirror cooling fan
• Operating temperature range,°C -5...+35
• Optical tube material metal
• User level experienced users
• Assembly and installation difficulty level complicated
• Observed object deep-sky objectsv
