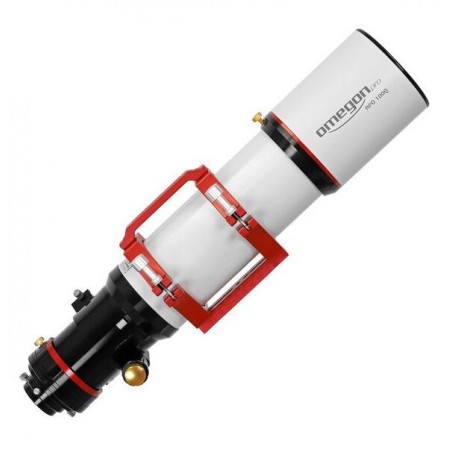

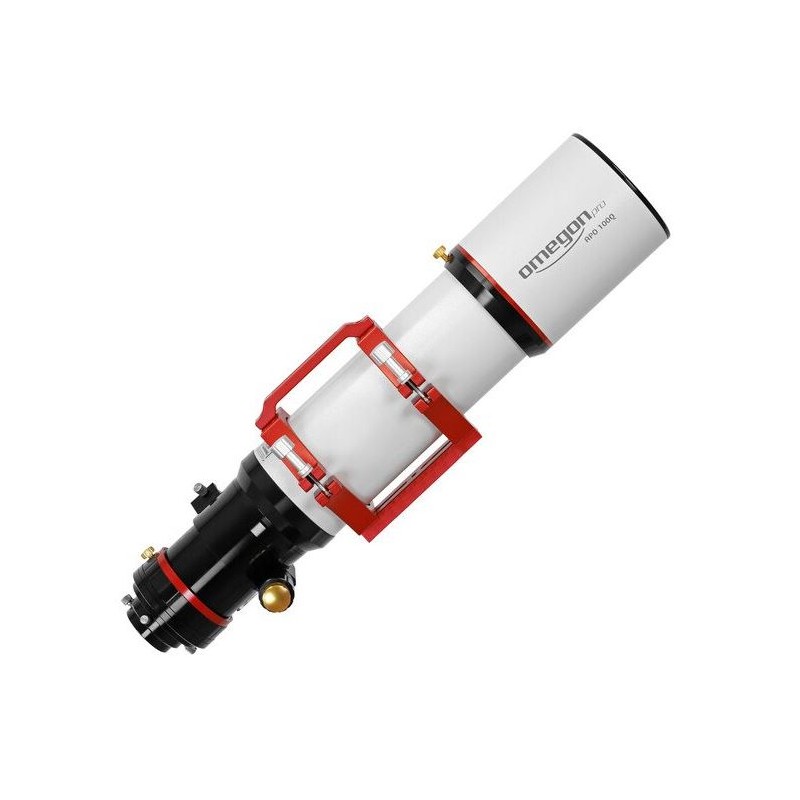

Omegon Pro APO AP 100/580 Quadruplet Refractor OTA

Better astrophotos that help you discover the sky in a new way

What is it that drives astrophotographers time and again? It is the fascination of depicting the sky in its most beautiful colours and shapes. With this apochromat, you can do just that. The premium ED glass and a colour-pure image make for enjoyable observations with fine details that would not be possible with basic optics. Rediscover the sky.

The highlights at a glance:

• 100mm quadruplet ED Apo with four lenses for stunning astrophotos
• A two-lens integrated corrector that provides complete illumination of your full-frame camera with an image circle diameter of 44mm
• 3.5" focuser with a 1:10 reduction ratio: Easily focus larger and heavier cameras with high precision
• Camera rotates 360° so you can find the right orientation

Why these optics reveal more details

No more images without contrast. This apochromat shows what is really possible: pure-colour and high-contrast observations and astrophotos. The key is a sophisticated optical design with premium ED glass for a crystal-clear image. Compared to most mirror systems, the better-defined optics allow you to see more and finer details when observing the planets, for example. All surfaces of the lens elements are treated with an effective multi-coating to prevent reflections. Enjoy memorable observations and shots.

Large focuser with gearing and ball bearings

Full-frame enthusiasts need space: That is precisely what the geared focuser offers. It beautifully complements the premium optics and produces great illumination and images without shading. Hybrid Crayford and gear technology combines perfectly smooth focusing with high load-bearing capacity. A 1:10 reduction gearing makes precise focusing a breeze. Astrophotographers around the world value precisely these features.

360° rotation for framing the perfect photo

You found the object and focused on it, but with the wrong orientation? Save yourself the trouble of having to start over again at night to align an elongated object with the sensor. This is easy to do in seconds thanks to the 360° rotating focuser.

A strong connection

Nothing will slip out of place again: The integrated thread provides you with the option of securely mounting your accessories. For example, take your full-frame optimised off-axis guider and fasten it as if it were a permanent part of your new telescope.

CNC tube designed for the best optics

The tube of the Omegon Apo consists of a CNC machined metal construction with a sophisticated anti-reflective aperture system. The entire tube is lined with a velvet-like, black fabric.

Extending and fixing the dew cap

The Apo's dew cap can be extended and fixed with a screw. It can be retracted for transport.

Specifications

• Product ID 78608
• Brand Omegon
• Warranty, years 2
• EAN 2400000047704
• Shipping Weight, kg 9.1
• Optical design refractor
• Optical scheme apochromat
• Objective lens diameter (aperture), mm 100.0
• Focal length, mm 580
• Aperture ratio f/5.8
• User level experienced users
• Observed object deep-sky objects, planets of the Solar System, terrestrial objects
• Pouch/case/bag in set case
