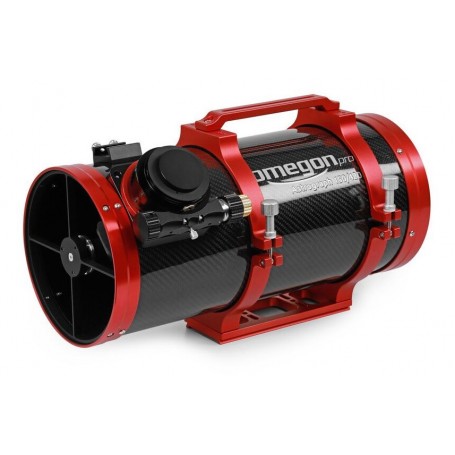

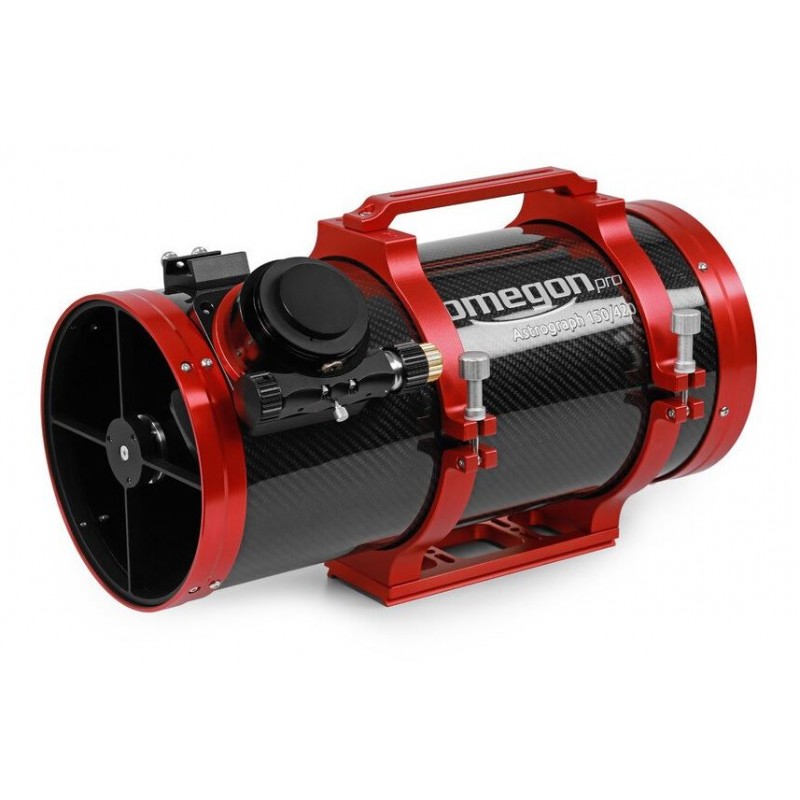

Omegon Pro Astrograph N 150/420 OTA

The Omegon Pro Astrograph N 150/420 OTA is a Newtonian telescope that has been tailor-made for the current needs of digital astrophotography. This innovative telescope stands out from standard Newtonian models through its hyperbolic primary mirror and a unique corrector within its focuser. Its concise design and moderate 70mm secondary mirror yield a corrected 44mm image circle. This telescope exhibits impressive imaging performance, enabling use with highly advanced astro cameras boasting spectacular resolution. Experience the wonders of the universe with crystal clear images, thanks to this remarkable instrument's sophisticated technology.
3179.01 $
Tax included

2584.56 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Omegon Astrograph with 150mm aperture at f/2.8

This Newtonian is perfectly adapted to the modern requirements of digital astrophotography. In contrast to common Newtonian telescopes with a coma corrector, this telescope has a hyperbolic primary mirror and a specially-designed corrector in the focuser. Using a compact design and a moderate secondary mirror with a diameter of 70mm, it achieves a corrected image circle of 44mm. The imaging performance is so good that even modern astro cameras with very high resolution can be used.

The highlights at a glance:

  • Optics optimised for astrophotography with high resolution over the entire usable field of view.
  • A carbon tube for significantly improved focal stability compared to a metal tube.
  • The secondary mirror is fitted with the necessary offset for a more uniform illumination of the field of view.
  • Microfocusing is integrated, a necessity given the extreme f/2.8 aperture ratio.
  • High-quality CNC Vixen tube clamps and a Losmandy prism rail are included in the scope of delivery.
  • Carrying handle with mounting surface for an accessory shoe.
  • Simple camera adapter using the focuser's M48x0.75 connection thread. Working distance of 55mm.

Specifications

  • Product ID 78611
  • Brand Omegon
  • Warranty, years 2
  • EAN 2400000047735
  • Shipping Weight, kg 13.47
  • Optical design reflector
  • Optical scheme Newtonian
  • Objective lens diameter (aperture), mm 150.0
  • Focal length, mm 420
  • Aperture ratio f/2.8
  • User level experienced users
  • Observed object deep-sky objects, planets of the Solar System
  • Pouch/case/bag in set case
