Discovery Artisan 128 Digital Microscope

Discovery Channel informs, entertains and inspires its audiences around the globe about the world in all its wonder, diversity and amazement. Offering millions of people the chance to discover, and satisfy their curiosity, Discovery offers a compelling mix of stories across genres including science and technology, exploration, adventure, history and in depth behind-the-scenes glimpses at the people, places and organisations that shape and share the world we live in.

We proudly present the Discovery optics series that is produced by Levenhuk and endorsed by Discovery.

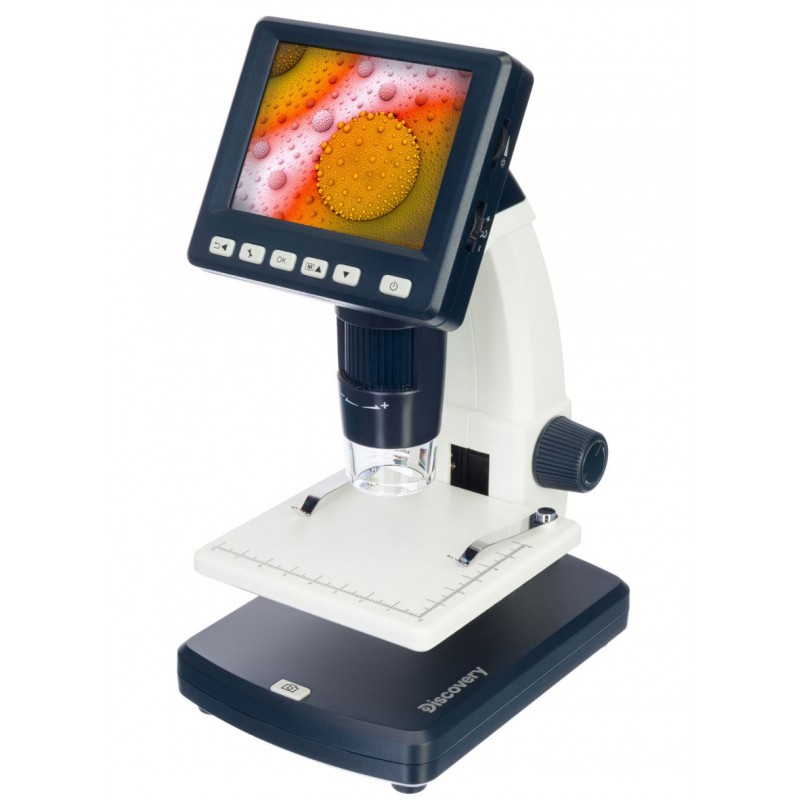

The Discovery Artisan 128 digital microscope has a built-in 3.5-inch LCD display, onto which the image is transferred from the objective. It can also be displayed on an external screen, not only on a PC but also on a TV. The microscope is compatible with Windows and Mac OS devices, and you can connect the microscope to them using a USB cable. To connect the device to a TV, the AV cable is used. The microscope also allows for photographing, video recording, and measurements (linear, angular, radii, diameters, etc.).

The Discovery Artisan 128 microscope's digital 5-megapixel camera with interpolation up to 12 megapixels forms the image. The magnification range is from 20x to 500x, and the manual focus range is from 0 to 150mm. The microscope is great for working with metals, numismatics, restoration, jewelry, and repair work. It can be used to detect defects in manufactured products, digitize museum exhibits (leaves, minerals, etc.), solder, and work with drawings. This model is also suitable for a scientific hobby.

The stage is equipped with two clamps and measuring scales. The microscope features a built-in illumination. It includes 8 white led lights around the camera's objective. Their brightness is adjustable. The illumination as well as the microscope is powered with the Li-ion battery or an AC power supply (AC adapter is included).

Note: A memory card is used to record photos and videos (not included). The recorded data can be transferred to a computer using a USB cable.

Features:

• Digital microscope with a 3.5” LCD display
• Can be connected to TV, Windows or Mac OS computer
• Magnification: 20-500x; focus: 0-150 mm
• Built-in digital camera: 5Mpx (interpolated to 12Mpx).
• 8 white LEDs with adjustable brightness
• Photo, video recording, and object measurement functions
• Stage with clamps and measuring scales
• Powered by built-in battery or AC power supply

The kit includes:

• Microscope
• Adapter (100-240 V, 50/60 Hz)
• Li-ion rechargeable battery
• USB cable
• AV cable
• Cleaning wipe
• Calibration scale
• Software CD
• User manual and warranty card

Recommendations on using the software:

In order for the program to operate correctly, please launch the installed application only when your microscope is connected to a PC and ready for observations.

Note: Remember that mains voltage in the U.S. and Canada is 110V and 220-240V in most European countries. Please refer to the specifications table for the correct voltage and never attempt to plug a 110 V device into a 220 V outlet and vice versa without using a converter.

The Discovery Artisan 128 digital microscope is not compatible with external digital cameras.

Specifications

• Product ID 78162
• Brand Discovery
• Warranty, years 10
• EAN 5905555012032
• Package size (LxWxH), cm 33x19.5x14
• Shipping Weight, kg 1.275
• Type digital
• Head digital screen/PC monitor
• Optics material optical glass
• Nozzle 3.5" color LCD screen (fixed)
• Magnification, x 20 – 500
• Stage, mm 95x98
• Stage moving range, mm 0–40, vertical
• Stage features with a measuring scale, with clips
• Focus manual, 0–150mm
• Body plastic
• Illumination LED
• Brightness adjustment ✓
• Power supply 100–240V, 50/60Hz, 5V, 1A output, Li-ion battery 3.7V/1050mAh
• Power supply: batteries/built-in battery yes
• Additional battery-operated work: 2 hours; charging time: 2 hours
• Megapixels 5 (with interpolation up to 12)
• Video recording yes
• Frame rate 30 frames per second
• Image format *.jpg
• Software, drivers photo and video processing software with objects measurement feature
• Output USB 2.0
• System requirements OS Windows 7/8/10, Mac 10.6 ~ 10.15; 1.8GHz Intel P4 and above, 512MB RAM, 64MB video card, USB 2.0, CD-ROM
• Ability to connect additional equipment supports microSD memory cards up to 32GB (not included)
• User level beginners
• Assembly and installation difficulty level extremely simple
• Video format *.avi
• Application for applied research
• Illumination location upper
• Research method bright field
• Maximum resolution 12MP, 8MP, 5MP, 3MP, 1.3MP, VGA
