Levenhuk DTX TV Digital Microscope (62794)
4970.5 Kč net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description

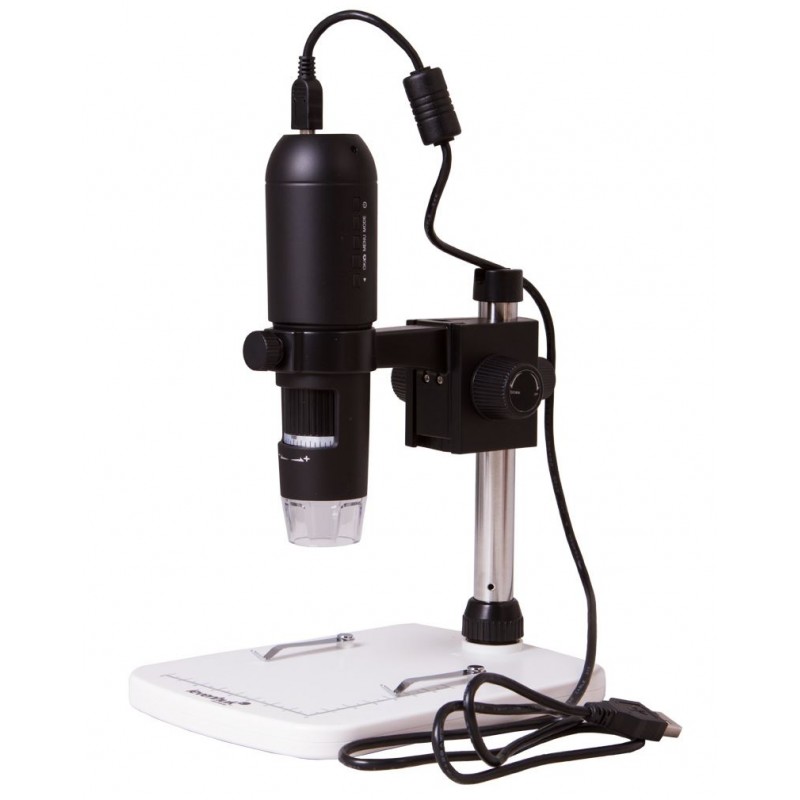

Levenhuk DTX TV Digital Microscope with HDMI Compatibility
Discover the world of microscopy with the Levenhuk DTX TV Digital Microscope, a versatile tool designed for hobbyists, educators, and professionals alike. This innovative microscope allows you to project your observations onto a PC or TV screen, perfect for presentations, lectures, and seminars. With its HDMI compatibility, you can easily share your findings with a larger audience.
Features
- Digital microscope with variable magnification of 10 to 200x
- HDMI and USB Connectivity for easy connection to PCs and TVs
- Built-in LED illumination featuring 8 bright LEDs for clear viewing even in darkness
- 3 Mpx digital camera resolution for high-quality images and videos
- Easily mountable on a tripod for stable, sharp images
- Includes all necessary cables and software for image processing and measurement
The Kit Includes
- Digital microscope
- Stand
- Adapter*
- USB cable
- HDMI cable
- Calibrating scale
- Software CD
- User manual and lifetime warranty
Software Recommendations
To ensure optimal software performance, connect the microscope to your PC before launching the application. This setup is necessary for accessing all features, including image processing and sample measurement.
Note: The Levenhuk DTX TV Digital Microscope is not compatible with external digital cameras.
Important Caution
Please check the specifications table for correct mains voltage requirements. Never plug a 110V device into a 220V outlet without a converter. Note that the mains voltage is 110V in the U.S. and Canada and 220–240V in most European countries.
Specifications
- Product ID: 70422
- Brand: Levenhuk, Inc., USA
- Warranty: Lifetime
- EAN: 5905555004358
- Package size (LxWxH): 14x22x17 cm
- Shipping Weight: 1.05 kg
- Type: Digital
- Head: Digital screen/PC monitor
- Optics material: Optical polymer glass
- Magnification: 10 – 200x
- Stage: 120x165 mm with measuring scale and clips
- Focus: Manual, 10–50mm
- Body: Plastic
- Illumination: LED with brightness adjustment
- Power supply: 100–240V, 50/60Hz, 5V
- Operating temperature range: -5...+50°C
- Video recording capability with a frame rate of 30 fps
- Image format: *.jpg with resolutions 14M, 8M, 5M, 3M, 2M, WVGA
- Output: HDMI, microSD card slot, mini-USB
- System requirements: OS Windows 7/8/10, Mac 10.7~10.14; 1.8GHz Intel P4 and above, RAM 512 MB, video card 64MB, USB 2.0, CD-ROM, monitor with HDMI input
- Supports microSD memory cards up to 32GB (not included)
- User level: Beginners and experienced users
- Assembly and installation difficulty: Easy
- Video format: HDMI: *.h264; USB: *.mjpeg; 1080p Full HD, 720p, VGA
- Application: Applied research
- Illumination location: Upper
- Research method: Bright field
