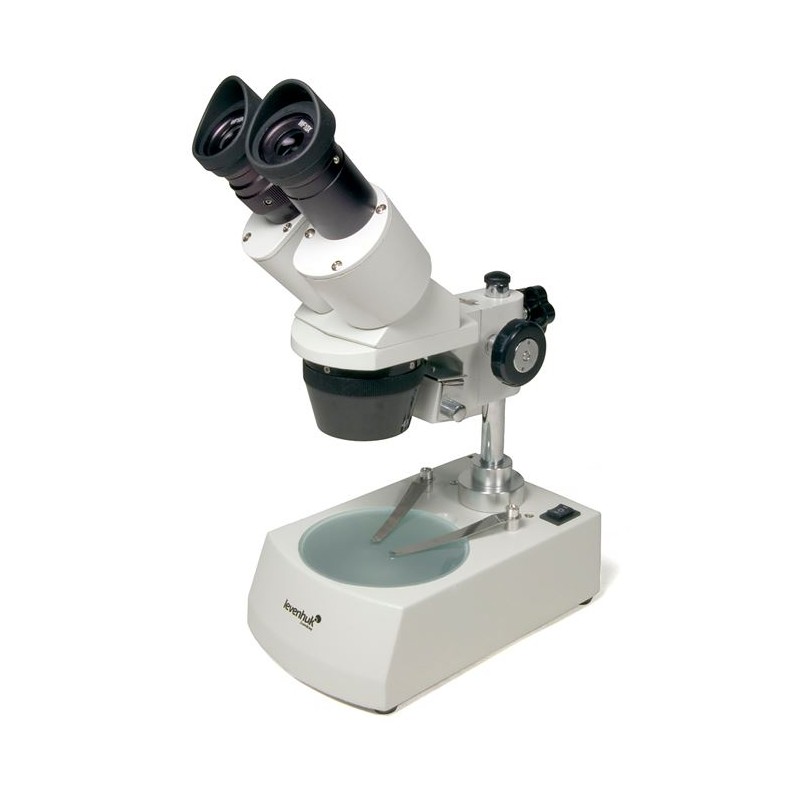

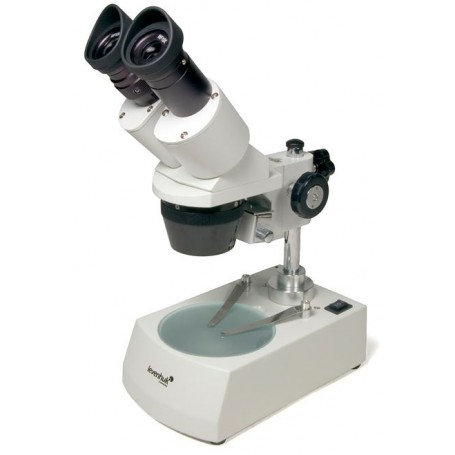

Levenhuk 3ST Microscope

Levenhuk 3ST is a reliable stereo microscope with a binocular head inclined at 45 degrees. This design allows for comfortable observations for extended periods of time without any muscle strain, and no additional stress to the eyes due to the binocular head (comparing binocular microscopes to microscopes with monocular heads). The optics in this model are made of high-quality glass with special coating, so the rendered images are sharp and the colors are true.

Levenhuk 3ST is the standard model of the Levenhuk stereo microscope product range. This range of microscopes is perfect for professional research and casual observations by biologists, geologists, jewelers and many others. The 3D image of the observed object rendered by this microscope allows you to study the object in great detail and measure its dimensions with unprecedented precision.

This binocular microscope has a relatively long working distance of 57 mm (2.2 in) that allows you to study flat specimens as well as rather large objects.

The built-in illumination sources (upper and lower) allow you to use your microscope even in the dark. Halogen lamps used are highly economical and will serve you well for a considerably long time before you have to change them. For even more comfortable observations, you can rotate the stage plate so that it faces either the black or the white side upwards, and besides, hold a specimen in place with the useful stage clips.

Levenhuk 3ST Microscope comes with WF10x eyepieces and rotating objective with magnifications of 2x and 4x.

The kit includes:

• Levenhuk stereo microscope
• Binocular head
• WF10x eyepiece – 2 pieces
• Rotating objective: 2x, 4x
• Backup halogen lamp: 12V/10W
• Matte glass stage
• Double-sided black and white stage plate
• Rubber eyecups
• User manual and lifetime warranty

Levenhuk 3ST Microscope is compatible with Levenhuk digital cameras (purchased separately).

Specifications

• Product ID 35323
• Brand Levenhuk, Inc., USA
• Warranty, years lifetime
• EAN 5905555004556
• Package size (LxWxH), cm 31x29x35.5
• Shipping Weight, kg 3.1
• Type stereo/instrumental
• Head binocular
• Optics material optical glass
• Nozzle fixed (non-rotatable)
• Head inclination angle 45 °
• Magnification, x 20 – 40
• Eyepiece tube diameter, mm 30.5
• Eyepieces WF10x (2 pcs.)
• Objectives 2x–4x (zoom)
• Working distance, mm 57
• Interpupillary distance, mm 60
• Stage, mm Ø90
• Stage moving range, mm fixed
• Stage features two plates: black and white double-sided and matte glass, with clips
• Eyepiece diopter adjustment, diopters ±5
• Focus сoarse: 40mm
• Body metal
• Illumination halogen
• Power supply 220V/50Hz
• Light source type halogen lamp 12V/10W (lower and upper light sources)
• User level beginners
• Assembly and installation difficulty level extremely simple
• Application for applied research
• Illumination location dual
• Research method bright field
• Pouch/case/bag in set dust cover
